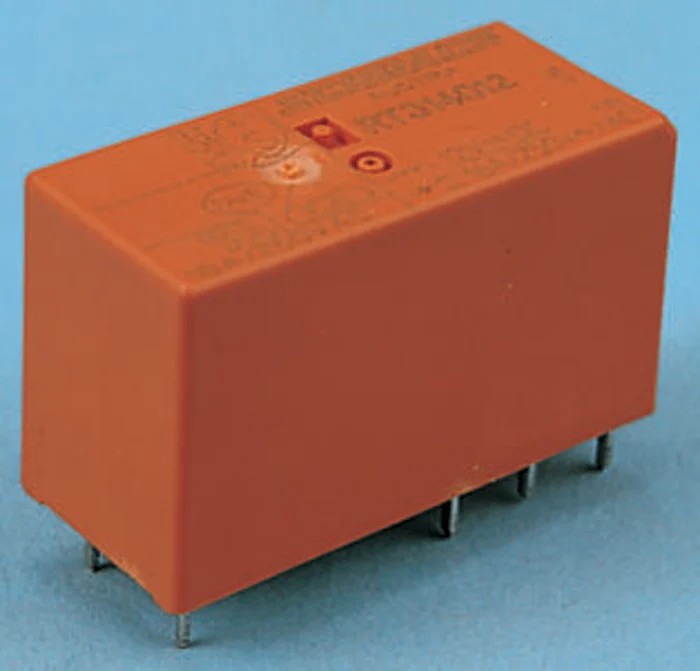

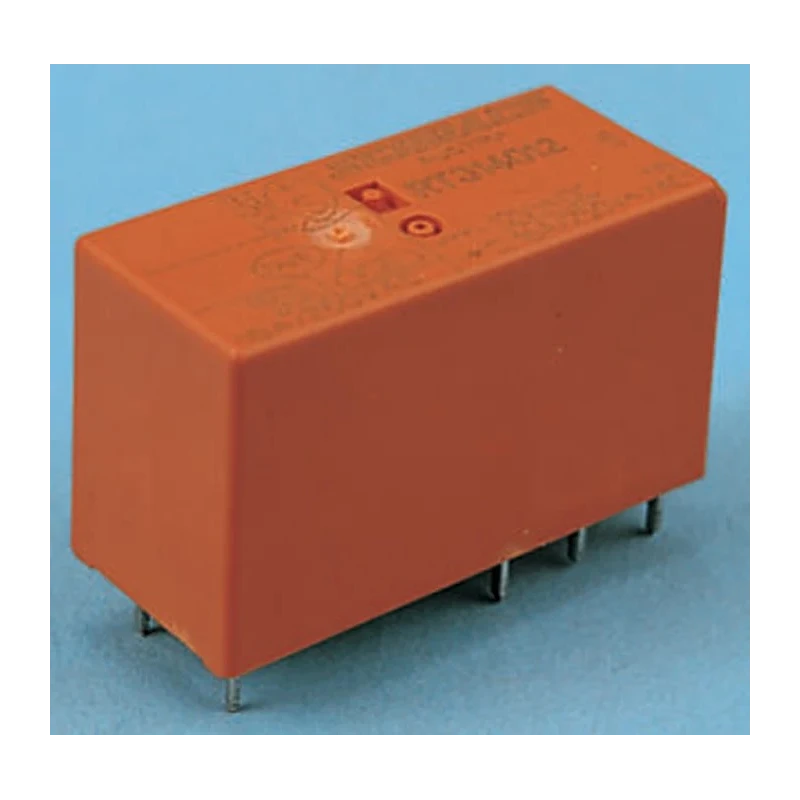

TE Connectivity PCB Power Relay, 12V DC Coil, 16A Switching Current, SPST 5-1393239-4
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 300V ac |
| Coil Power | 400mW |
| Reflow version | for THR (Through-Hole Reflow) soldering process |
Key Features
- The relay features an SPST contact configuration suitable for single pole switching circuits.
- Designed for PCB mounting with solder terminals for secure installation.
- Coil resistance is 360 Ω ensuring stable coil operation at 12V DC.
- Operates within temperatures from -40°C to 85°C, suitable for varying environments.
- The relay supports switching voltages up to 300V AC/DC and switching power up to 3 kVA.
- Manufactured with silver alloy contact material to provide durable and low resistance contacts.
- Compact dimensions measuring 29mm length, 15.7mm height, and 12.7mm width allow easy integration.
- Reflow version available for Through-Hole Reflow soldering process compatibility.
Product Description
TE Connectivity 5-1393239-4 PCB Power Relay is engineered for industrial and automation use with a 12V DC coil and a 16A switching current capability. It provides efficient switching solutions for electronic circuits requiring a single pole single throw (SPST) contact configuration.
This relay is designed to mount directly on printed circuit boards (PCBs) using solder terminals, ensuring a reliable electrical connection. With a coil resistance of 360 Ω and coil power consumption of 400mW, it provides consistent operation at the specified voltage.
Operating reliably in harsh conditions, the relay covers a broad temperature range from -40°C up to 85°C. It can switch AC and DC voltages up to 300V, handling a switching power capacity up to 3 kVA, making it suitable for various industrial and commercial control applications.
Constructed with silver alloy contact material, the relay offers durability and low contact resistance for superior electrical performance. Its compact dimensions of 29mm length, 15.7mm height, and 12.7mm width accommodate designs where space is limited.
This model includes a reflow soldering compatible version for through-hole reflow (THR) processes, facilitating modern PCB assembly techniques. It complies with RoHS directives ensuring the product meets environmental and hazardous substance regulations.
The relay is used for controlling boilers, timer circuits, garage door openers, point-of-sale automation, and interface modules in industrial and commercial setups. Manufactured in Austria, it upholds stringent quality standards suited for reliable long-term operation.
The single-pole design simplifies circuit integration while maintaining high current and voltage switching capabilities. It is suitable for electrical, industrial automation, and HVAC control systems among other applications.
RoHS compliance ensures reduced environmental impact in manufacturing and disposal. The relay's compact size supports dense PCB layouts without sacrificing electrical performance.
This TE Connectivity Power Relay 5-1393239-4 offers a trusted solution for demanding applications requiring robust and precise switching. Explore more Power Relay products and electrical components at EnvMart for your project and industrial needs.
