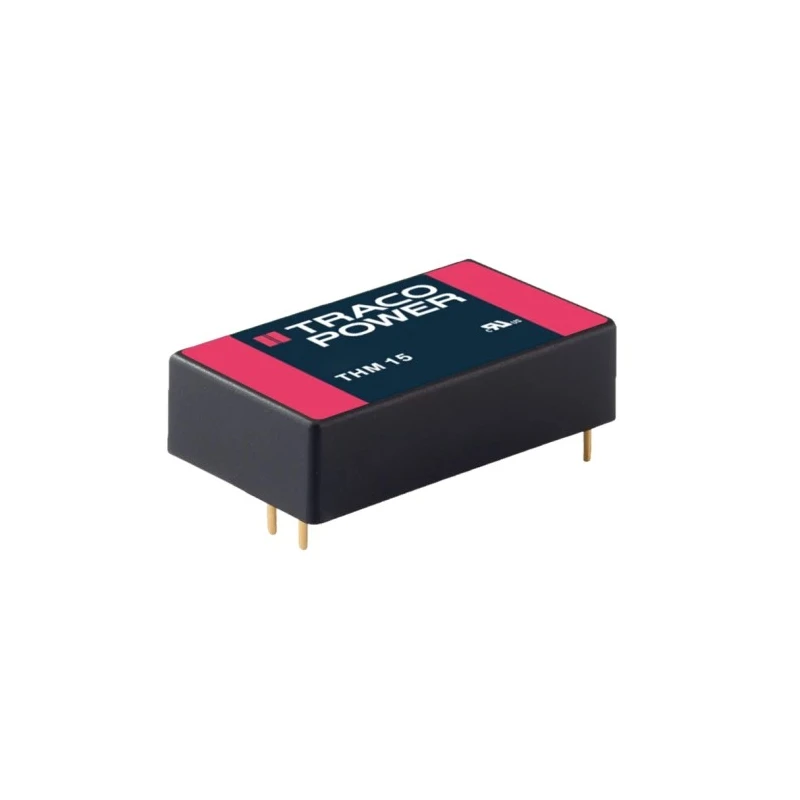

TRACOPOWER 15W Through Hole Plastic Case DC/DC Converter 5V DC 3A Input 18V-36V THM 15-2411
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THM 15 DC/DC Converter, 5V dc/ 3 A, 36V |
| Brand | TRACOPOWER |
| Efficiency | 90% |
| Length | 40.6mm |
| Model | THM 15-2411 |
| Depth | 10.2mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | THM 15 |
| Maximum Operating Temperature | 85°C |
| Package Type | Plastic Case |
| Minimum Operating Temperature | -40°C |
| MTBF | 2080000h |
| Number of outputs | 1 |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 6 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 3A |
| Isolation Voltage | 5kV ac |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Wide 2 | 1 input voltage 15 W DC/DC converter in a 1.6 x 1 plastic case |
Key Features
- The converter features a through hole mount type with a plastic case package.
- It provides reinforced isolation of 5000 VACrms ensuring safety and reliability.
- Operating temperature ranges from -40°C to 85°C for versatile environment use.
- MTBF rating of 2,080,000 hours guarantees high operational longevity.
- Achieves an efficiency level of up to 90% optimizing power use.
- The device operates reliably up to an altitude of 5000 metres.
- Compact dimensions of 40.6mm length, 25.4mm width, and 10.2mm depth fit constrained PCB spaces.
- Low leakage current of under 2.5 μA ensures energy efficiency and safety.
Product Description
TRACOPOWER THM 15-2411 is a highly reliable 15 Watt DC/DC converter designed in a compact 1.6" x 1.0" plastic casing for through hole mounting. It delivers a regulated 5V DC output at 3A current from a wide input voltage range of 18V to 36V, suitable for industrial and medical electronics applications.
This DC/DC converter features a reinforced isolation system with an isolation voltage of 5000 VACrms and extremely low leakage current less than 2.5 μA, ensuring excellent electrical safety compliance. It is optimized for high efficiency, achieving up to 90%, reducing heat dissipation and energy losses.
Designed to operate in harsh environments, it supports an ambient operating temperature range from -40°C up to +85°C and is rated to function reliably up to an altitude of 5000 metres. The device’s mean time between failure (MTBF) is 2,080,000 hours, confirming exceptional durability.
Applications include transportation systems, industrial control and measurement equipment, and IGBT driver circuits where stable isolated power supplies are critical. The compact size of 40.6mm length, 25.4mm width, and 10.2mm depth allows easy integration into PCB layouts requiring through hole mounting.
Provides 15W power output with 5V DC at 3A current. Wide 2:1 input voltage ratio from 18V to 36V. Reinforced isolation of 5000 VACrms for electrical safety. Low leakage current under 2.5μA for energy efficiency. High efficiency of up to 90% reduces power losses.
Wide operating temperature range: -40°C to 85°C. Compact plastic case package suitable for through hole mounting. MTBF rating of 2,080,000 hours ensures long life. Suitable for industrial, medical, transportation, and control applications.
This TRACOPOWER DC/DC converter is a dependable choice for power supply isolation and regulation in demanding industrial environments. Explore the full range of DC/DC Converters available at EnvMart for your power electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 18V to 36V DC, allowing for a wide input voltage ratio of 2:1.
This unit provides a maximum output power of 15W with a regulated output of 5V DC at 3A current.
The converter achieves an efficiency level of up to 90%, optimizing power usage and minimizing heat dissipation.
The dimensions of this model are 40.6mm in length, 25.4mm in width, and 10.2mm in depth, making it suitable for constrained PCB spaces.
This converter operates within a temperature range of -40°C to 85°C, making it versatile for various environments.
It features a through hole mount type, which is suitable for easy integration into PCB layouts.
The device provides reinforced isolation with an isolation voltage of 5000 VACrms, ensuring electrical safety compliance.
The MTBF rating for this unit is 2,080,000 hours, indicating exceptional durability and reliability.
This model has one output, delivering a regulated 5V DC at 3A.
The leakage current of this unit is under 2.5 μA, which contributes to its energy efficiency and safety.
This DC/DC converter is suitable for applications in transportation systems, industrial control, measurement equipment, and IGBT driver circuits.
The TRACOPOWER THM 15-2411 is manufactured in Taiwan.
