TRACOPOWER THM 30 DC/DC Converter, 15V DC Output, 2A, 9-18V DC Input, 30W Power, Plastic Case, Through Hole Mount THM 30-1213

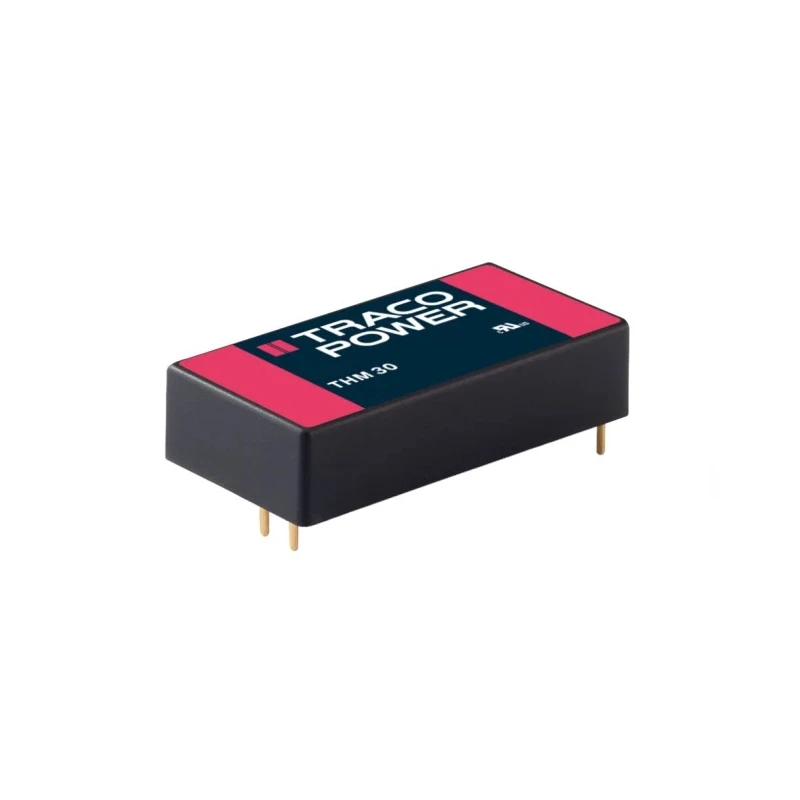

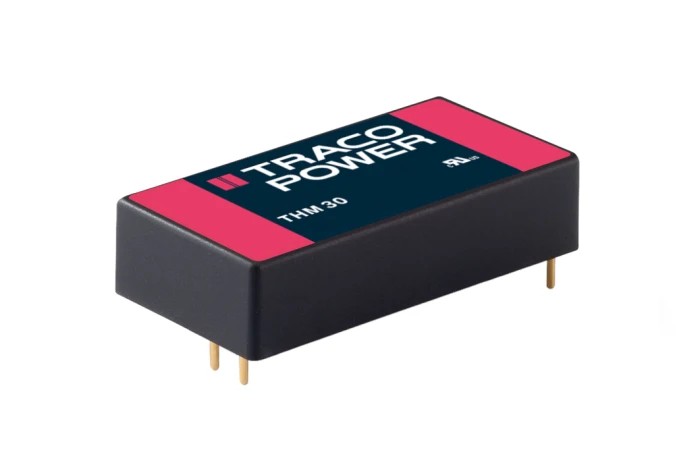

TRACOPOWER THM 30-1213 DC/DC Converter is a robust power supply component delivering a 15V DC output voltage at 2A with a maximum power rating of 30W. It accepts a DC input voltage in the range of 9V to 18V, making it compatible with various DC voltage sources. Packaged in a compact plastic case designed for through-hole mounting, the device measures 50.8mm in length, 25.4mm in width, and 10.2mm in depth, allowing easy integration into printed circuit boards and compact electronic assemblies.

This converter is engineered for high reliability with an MTBF of over 1 million hours and stable performance over a wide temperature range from -40°C to 80°C, suitable for demanding industrial and medical environments. It provides 5000VAC isolation voltage ensuring enhanced safety by isolating input and output, critical especially in medical and sensitive electronic applications. The output voltage is adjustable within a range of -10% to +20%, affording design flexibility for varied electrical needs.

Boasting an efficiency of up to 90%, the THM 30-1213 reduces energy consumption and heat generation, contributing to overall system efficiency. It features low leakage current below 2.5 microamperes, compliance with stringent power supply safety standards, and does not require minimum load conditions for operation, simplifying system design.

Common applications include power supplies for medical equipment, automation controls, measurement and control devices, and IGBT drivers in electric motors where precision and safety are paramount. The device's rugged construction and consistent electrical specifications make it ideal for industrial, laboratory, medical, and automation uses.

Offers a stable 15V DC output voltage with 2A output current. Operates efficiently at up to 90% efficiency reducing energy loss. Supports wide operating temperature range from -40°C to +80°C. Provides 5000VAC isolation to ensure safe and reliable operation.

Features a compact plastic case with through-hole mounting design. Output voltage adjustable within -10% to +20% allowing flexible applications. Designed for applications such as medical devices, automation systems and motor control.

Low leakage current below 2.5 μA enhances safety standards compliance. High MTBF of 1,137,000 hours assuring long operational life. Single output configuration suitable for precise voltage regulation. Explore our Electronics & Electricals DC/DC Converter category at EnvMart for more high-performance power conversion solutions that meet industrial and commercial requirements.
