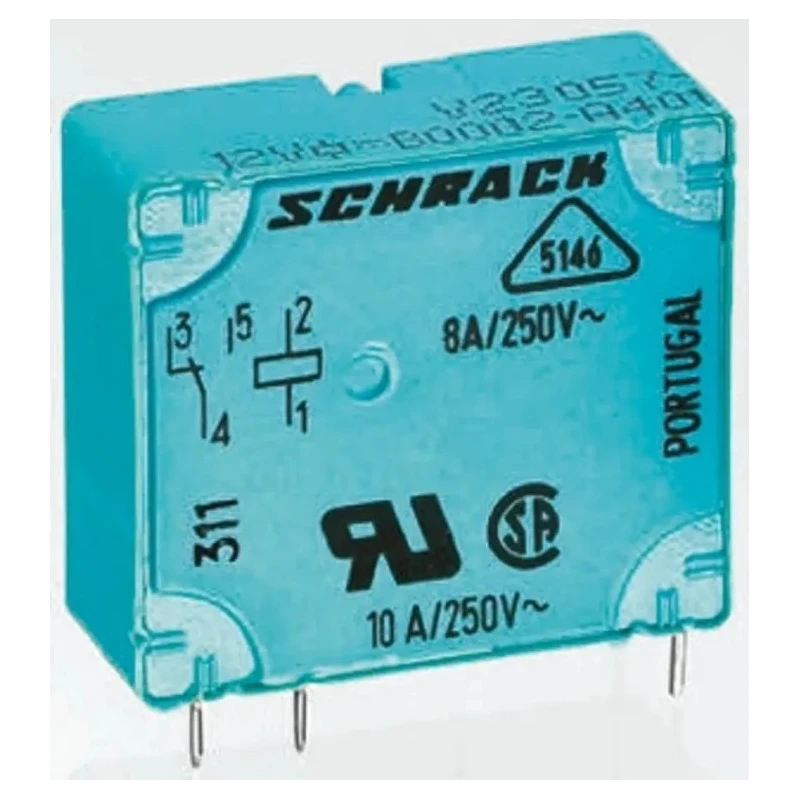

TE Connectivity PCB Power Relay 12V DC Coil 5A Switching Current SPDT V23057B2A101
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 25.1mm |
| Length | 28mm |
| Model | V23057B2A101 |
| Width | 10.4mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | Card E |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Standards/Approvals | IEC 61810, UL E214025, VDE Cert. No. 5146 |
| Coil Resistance | 330Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 517mW |
Key Features

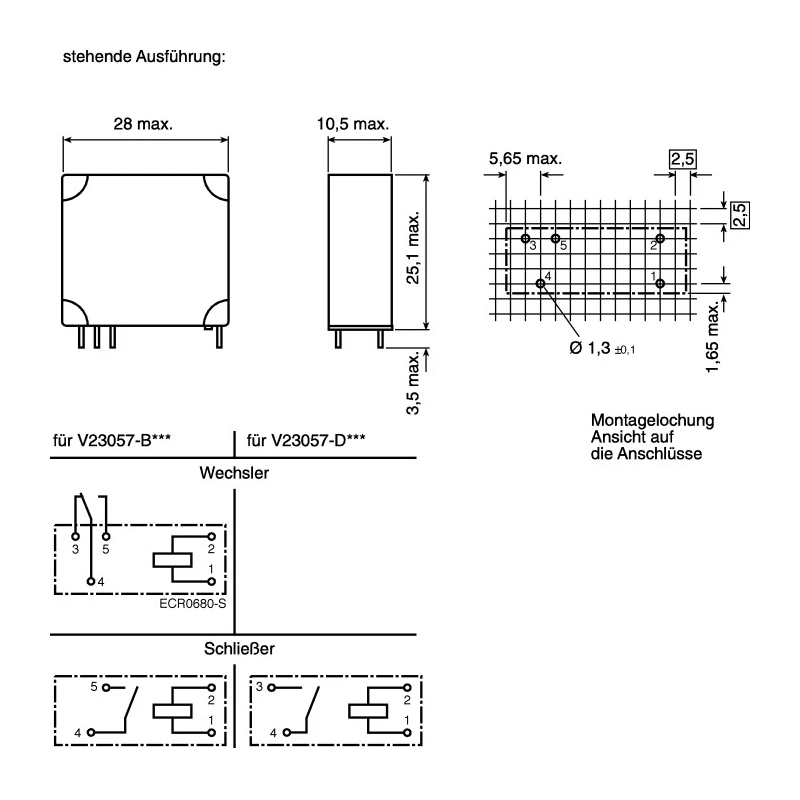

- Compact dimensions with width 10.4mm, length 28mm, and height 25.1mm.
- Designed for PCB mounting with solder terminals for secure connections.
- Coil resistance of 330Ω and coil power rating of 517mW ensure energy efficiency.
- Operating temperature range from -40°C to +70°C suitable for harsh environments.
- Switching AC voltage up to 400V AC and switching power rating of 2 kVA.
- Contact material is silver alloy for excellent conductivity and durability.
- Fully sealed Card E series relay complying with IEC 61810, UL E214025, and VDE standards.
- Manufactured in Czech Republic with high standards of quality assurance.
Product Description
TE Connectivity V23057B2A101 PCB Power Relay features a 12V DC coil and a switching current capacity of 5A with an SPDT contact configuration. This relay is designed for efficient and reliable operation in industrial and electrical control systems.
The relay's compact size (10.4mm width, 28mm length, and 25.1mm height) makes it suitable for PCB mounting applications, using solder-type terminals for robust installation.
Equipped with a coil resistance of 330Ω and coil power of 517mW, it ensures low power consumption during operation. The relay operates over a broad temperature range from -40°C to +70°C, making it durable for use in challenging environmental conditions.
This Card E series relay supports switching AC voltages up to 400V AC and switching power up to 2 kVA. The silver alloy contact material offers long-lasting performance and effective conductivity.
The device is fully sealed and meets IEC 61810, UL E214025, and VDE certifications, demonstrating its compliance with international safety and quality standards. Manufactured in the Czech Republic, the relay is suitable for applications such as industrial automation, electrical circuits, signal conditioning, and HVAC control systems.
Compact dimensions facilitate integration in space-limited PCB layouts. Energy-efficient coil operation minimizes power consumption. Wide temperature tolerance ensures reliable operation in diverse conditions. Compliant with multiple industry standards for safety and performance.
Durable silver alloy contacts enable long service life and reliable switching. Full sealing protects internal components from dust and contaminants. High switching capacity supports a variety of load demands. SPDT contact type offers flexibility for control circuit designs.
Explore EnvMart’s extensive range of Power Relays and related components for your automation and electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 5A.
The coil voltage for this relay is 12V DC.
It has compact dimensions of 10.4mm in width, 28mm in length, and 25.1mm in height.
This relay can switch AC voltages up to 400V AC.

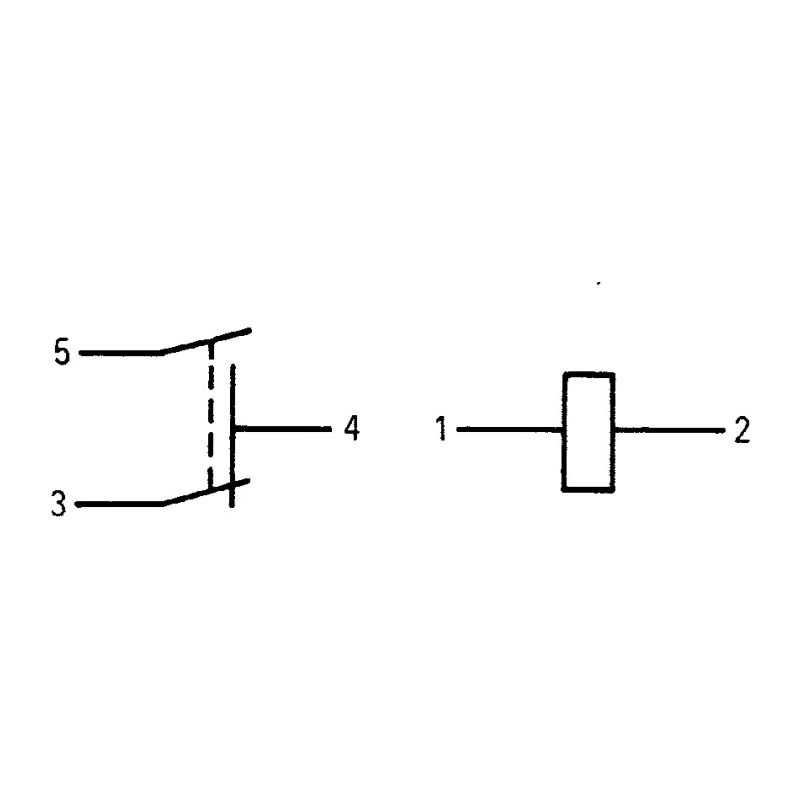

It features an SPDT (Single Pole Double Throw) contact configuration.
The coil resistance is 330Ω.
The coil power rating is 517mW.
It operates within a temperature range of -40°C to +70°C.
The contact material is silver alloy, which provides excellent conductivity.
Yes, it complies with IEC 61810, UL E214025, and VDE standards.
This model is designed for PCB mounting with solder terminals for secure connections.
It is manufactured in the Czech Republic.
