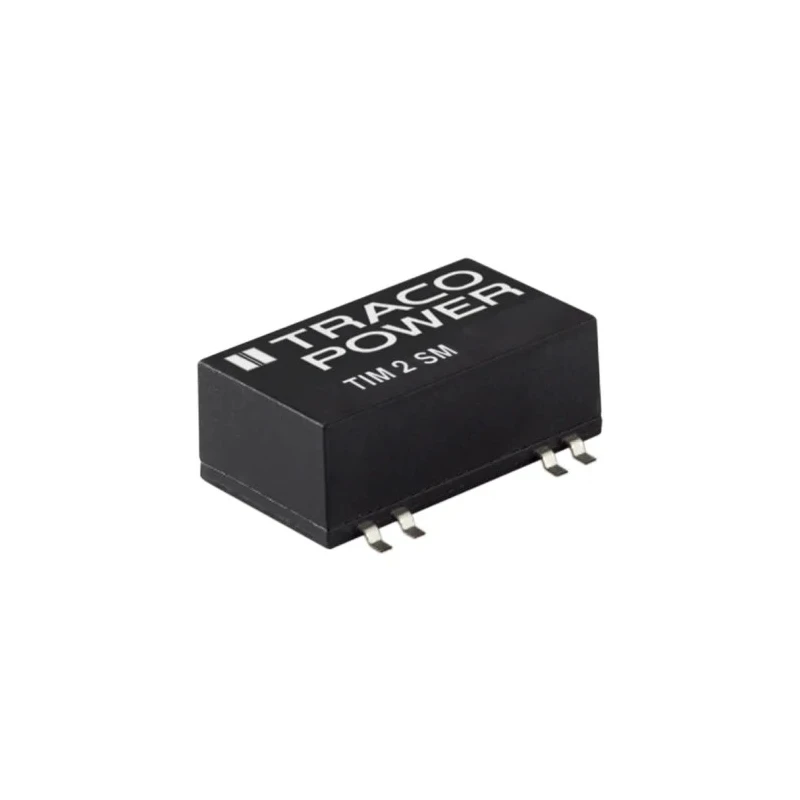

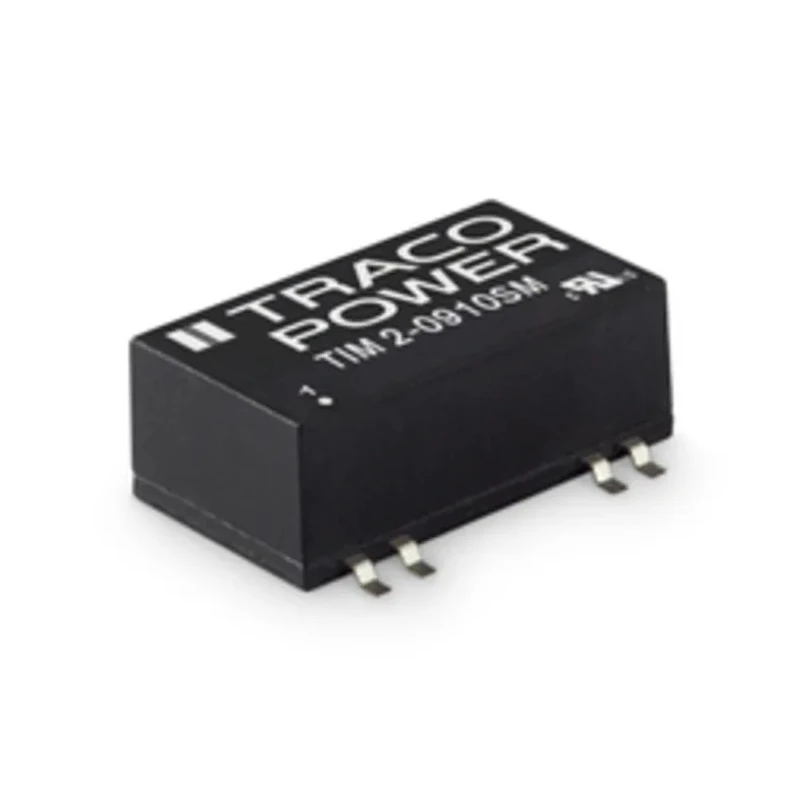

TRACOPOWER DC/DC Converter 24V DC Output 83mA 2W Surface Mount TIM 2-1215SM

TRACOPOWER TIM 2-1215SM is a high-quality DC/DC converter delivering 24V DC output at 83mA and 2W power suitable for surface mount applications. It operates efficiently at an input voltage between 9V and 18V DC, making it adaptable for various electronic power supply systems. This converter supports a wide operating temperature range from -40°C up to +105°C, ensuring performance in harsh industrial and medical environments.

The device comes in a compact SMD-16 package with dimensions 24.3mm length, 14.4mm width, and 10.5mm depth. Its 16 pins enable easy integration onto PCBs, supporting a single output with 1:12 input ratio and reinforced isolation providing 5kV AC isolation voltage rated for 250VAC working voltage. This ensures superior noise reduction and electrical safety for sensitive equipment.

Designed according to Quality ISO 13485 and IPC-A-610 level 3, the TIM 2 series converter meets robust quality standards, offering a mean time between failure (MTBF) of 6,810,000 hours. The converter complies with certification IEC/ES 60601-1 3rd edition for reinforced I/O isolation, making it especially suitable for medical electronics and industrial automation use cases.

Additional features include EN55022 Class A electromagnetic compatibility compliance with an input filter, low leakage current, and high efficiency rated at 82%. It supports output voltages including 5, 12, 15, 24V, and ±12, ±15V DC variants in the TIM 2 series.

This converter is ideal for industrial automation, medical instrumentation, communication equipment, embedded systems, and other precision electronics requiring stable, isolated DC-DC power conversion. Its surface mount configuration improves PCB design flexibility and space savings, while the wide temperature range and isolation capabilities support reliable operation under demanding conditions.

This device supports an input voltage range of 9V to 18V DC, allowing flexible usage. Operating temperature ranges from -40°C up to +105°C for industrial reliability. A 16-pin SMD-16 package ensures compact mounting and integration into electronic systems.

High isolation voltage of 5kV AC guarantees safety and noise reduction in sensitive equipment. Efficiency of 82% ensures energy-efficient power supply conversion. The converter is designed with quality standards including ISO 13485 and IPC-A-610 level 3 compliance.

It features MTBF of 6,810,000 hours, demonstrating excellent reliability and long service life. Ideal for medical, industrial, and embedded applications requiring reinforced I/O isolation. Includes input filter compliant with EN55022 Class A to minimize electromagnetic interference.

Explore the TRACOPOWER TIM 2-1215SM DC/DC Converter in the EnvMart Electronics & Electricals category for advanced industrial power supply solutions.
