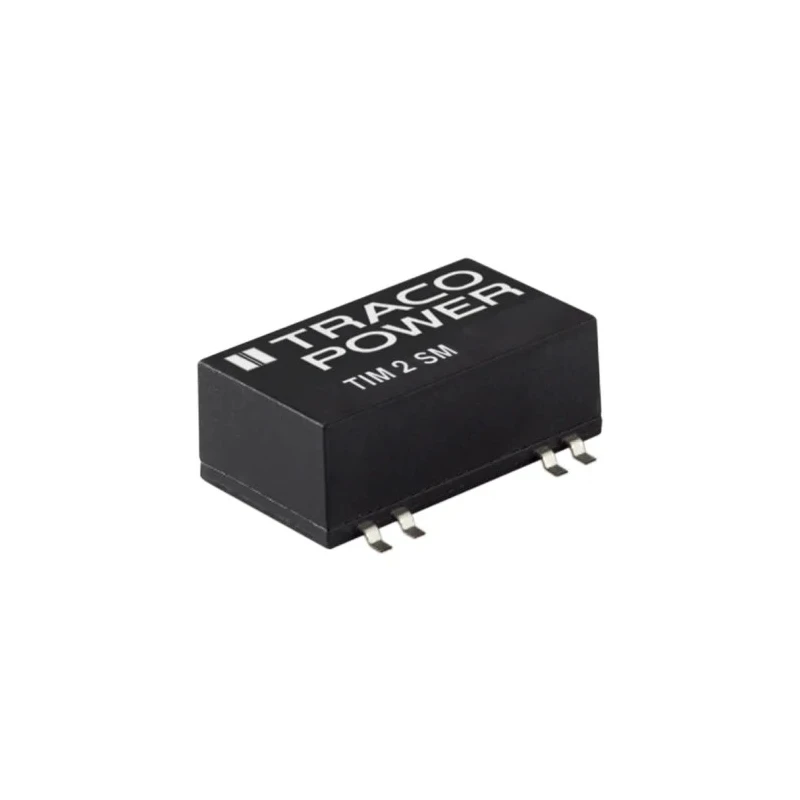

TRACOPOWER Medical/Reinforced I/O-Isolation DC/DC Converter, 24V dc 83mA Output, 36V dc Max Input, 18V Min TIM 2-2415SM

TRACOPOWER TIM 2-2415SM is a reliable medical and reinforced I/O-isolation DC/DC converter delivering 2 watts of power with a 24 V DC output voltage at an output current of 83 mA. Designed for surface mount applications, it features a 16-pin SMD-16 package measuring approximately 24.3 mm in length, 14.4 mm in width, and 10.5 mm in depth.

This converter supports a wide input voltage range from 18 V DC minimum to 36 V DC maximum, and operates efficiently with an efficiency rating of 82%. The device offers high isolation voltage of 5 kV AC, rated for 250 VAC working voltage, ensuring robust electrical isolation critical in medical and industrial applications.

The operating temperature range from -40°C to +105°C makes it suitable for harsh environmental conditions. This product meets the IEC/ES 60601-1 3rd edition certification and aligns with ISO 14971 risk management standards, affirming its safety and suitability for medical device integration.

Its extended MTBF of 6,810,000 hours guarantees long operational life, backed by a 35-year product warranty. The input ratio of 1:12 supports various input voltage ranges, enhancing versatility.

Typical applications include medical instrumentation, industrial control systems, and any use case demanding reinforced isolation with low leakage current. This surface mount DC/DC converter offers high reliability, compact size, and compliance with rigorous industry standards.

Compact surface mount design with 16 pins in SMD-16 package. High isolation voltage of 5 kV AC rated for 250 VAC working voltage. Extended operating temperature from -40°C to +105°C for industrial environments. Efficiency up to 82% for reliable energy conversion.

Mean time between failures (MTBF) of 6,810,000 hours ensures long service life. Compliance with IEC/ES 60601-1 3rd edition certification and risk management acc. ISO 14971. Ideal for medical, industrial, and reinforced isolation applications with low leakage current.

Package dimensions approximately 24.3 mm length, 14.4 mm width, and 10.5 mm depth. Input ratio of 1:12 supports multiple input voltage ranges including 18-36 V DC. Country of origin Taiwan, Province Of China. Explore a range of high-performance DC/DC Converters and related power supply components at EnvMart for your industrial, medical, and electronic projects.
