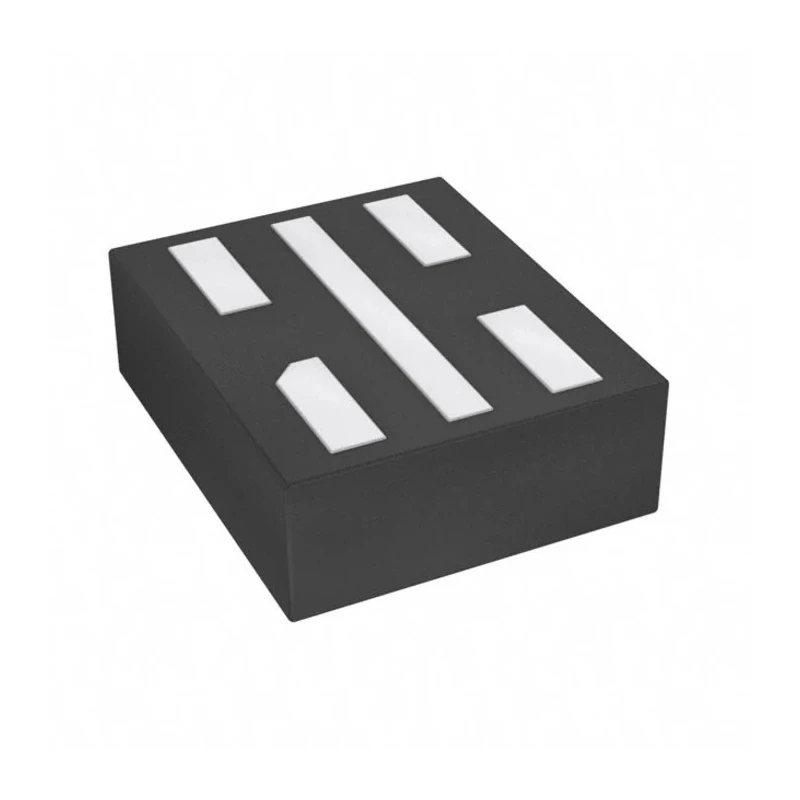

STMicroelectronics 4 kB Serial EEPROM, 900 ns 5-Pin UFDFPN-5 Serial-I2C M24C04-FMH6TG

STMicroelectronics M24C04-FMH6TG is a 4 kB Serial EEPROM designed for reliable non-volatile memory storage in industrial, automotive, and electronics applications. This EEPROM is organized as a 512 x 8-bit array, delivering 4 kB (32 kbit) memory capacity accessible via a Serial I2C interface operating at maximum clock frequency of 400 kHz.

The component is housed in a compact 5-pin UFDFPN surface mount package measuring 1.7 mm in length, 1.4 mm width, and 550 μm height, well-suited for space-constrained circuit designs. Its low operating voltage range from 1.7 V to 5.5 V facilitates operation in diverse power environments.

With a maximum random access time of 900 ns, the M24C04-FMH6TG enables fast data retrieval suitable for high-speed industrial control systems. The EEPROM ensures robust data retention of up to 40 years and supports over 4 million write cycles, making it ideal for applications demanding long-term reliability.

Additional features include comprehensive protection against electrostatic discharge and latch-up events, ensuring device durability. It supports both byte and page write modes with write cycles completed within 5 milliseconds. Operating temperature range from -40 °C to +85 °C allows deployment in harsh environmental conditions including automotive electronic systems compliant with AEC-Q100 standards.

This EEPROM is commonly used in embedded systems, automotive electronics, industrial automation, consumer electronic devices, and communication systems requiring non-volatile memory storage with I2C communication.

Organized memory structure of 512 x 8 bits. Supports I2C interface modes at 100 kHz and 400 kHz. Voltage supply range from 1.7 V to 5.5 V. Compact UFDFPN-5 surface mount package. Extended data retention of 40 years. Fast write cycle times of 5 ms for byte and page writes.

Enhanced protection against ESD and latch-up. Automotive AEC-Q100 compliant for enhanced reliability. Operating temperature range of -40 °C to 85 °C. With these features, the STMicroelectronics M24C04-FMH6TG is a dependable choice for memory solutions requiring stable, long-lasting, and efficient EEPROM performance.
