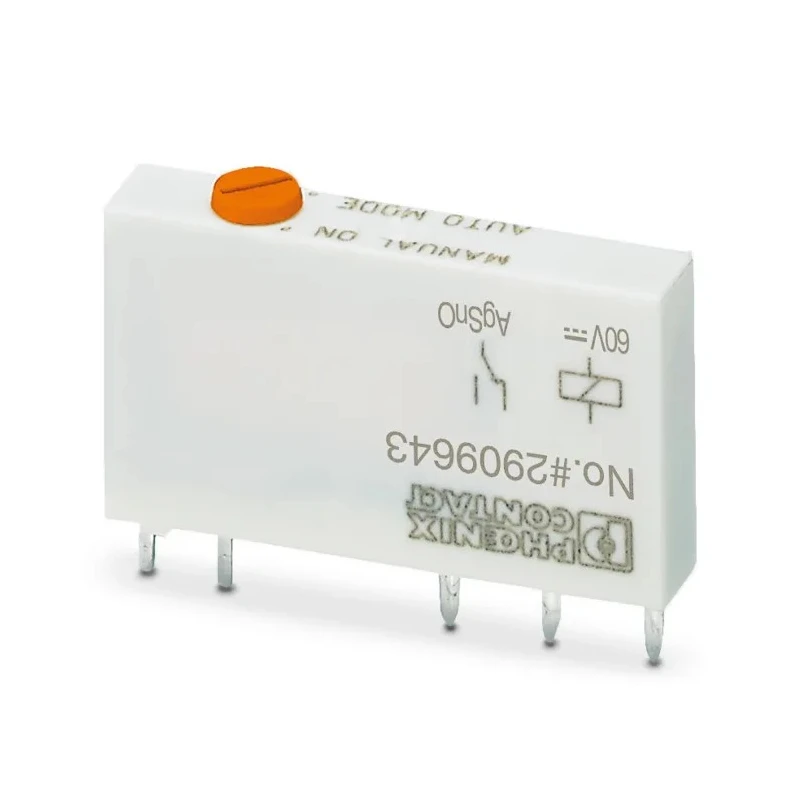

Phoenix Contact Power Relay PCB Mount SPDT 6A Switching Current 60V DC Coil Voltage 2909643
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Phoenix Contact |
| Height | 28mm |
| Length | 16mm |
| Model | 2909643 |
| Width | 5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | REL-MR- 60DC/21/MS |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | PCB Pin |
| Standards/Approvals | RoHS |
| Coil Resistance | 20.5kΩ |
| Coil Voltage | 60V dc |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 0.18W |
Key Features
- This plug-in miniature power relay supports a coil voltage of 60V DC for efficient operation.
- The contact configuration is SPDT (Single Pole Double Throw) designed for versatile switching.
- It features a switching current rating of 6 amperes suitable for power relay applications.
- The relay is designed with PCB pin terminals enabling easy mounting on printed circuit boards.
- Its compact dimensions are 28mm height, 16mm length, and 5mm width, allowing space-efficient installation.
- Supports switching voltages up to 250V for both AC and DC operations.
- Coil resistance is 20.5 kilo-ohms with coil power consumption of only 0.18 watts.
- Operates reliably within a temperature range from -40°C to 85°C ensuring durability under varying conditions.
Product Description
Phoenix Contact 2909643 is a high-quality industrial power relay designed for PCB mounting, providing SPDT contact configuration and a coil voltage rating of 60V DC. This relay supports a switching current of 6A, suitable for a broad range of electronic and electrical control applications.
Its plug-in miniature form factor from the REL-MR series makes installation and replacement straightforward for industrial automation, control panels, and power management setups. The relay integrates PCB pin terminals for direct printed circuit board mounting, ensuring secure and reliable connections.
Operating voltages of up to 250V AC and DC allow flexible use in various power circuits. With a coil resistance of 20.5k ohms and very low coil power consumption of 0.18W, this device is energy efficient. The compact dimensions of 28mm height, 16mm length, and 5mm width make it suitable for installations with limited space.
The operating temperature range from -40°C to 85°C guarantees dependable performance even in harsh industrial environments. Silver alloy contacts ensure excellent conductivity and resistance to wear, contributing to long service life. This product complies with RoHS standards, emphasizing environmental friendliness.
Plug-in miniature power relay from REL-MR series. SPDT contact configuration with 6A switching current. 60V DC coil voltage and 20.5kΩ coil resistance. Suitable for switching AC/DC voltages up to 250V. Compact size with PCB pin mounting.
Low coil power of 0.18W for energy efficiency. Operating temperature range -40°C to +85°C for industrial use. Silver alloy contact material for durability. RoHS compliant, manufactured in Czech Republic.
This power relay is ideal for applications in industrial automation, electrical control circuits, manufacturing equipment, and HVAC systems where reliable switching and compact form factor are essential.
Explore a broad range of Phoenix Contact products and related Power Relays on EnvMart, your trusted industrial equipment platform.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switching current rating of this power relay is 6 amperes, suitable for various power relay applications.
This model has a coil voltage rating of 60V DC, designed for efficient operation.
The relay has compact dimensions of 28mm in height, 16mm in length, and 5mm in width, allowing for space-efficient installation.
The contact configuration of this power relay is SPDT (Single Pole Double Throw), providing versatile switching capabilities.
This relay supports switching voltages up to 250V for both AC and DC operations.
The coil resistance of this relay is 20.5 kilo-ohms, contributing to its energy efficiency.
The coil power consumption of this relay is only 0.18 watts, making it energy efficient.
The operating temperature range for this relay is from -40°C to 85°C, ensuring reliable performance in various conditions.
This relay is designed for PCB mounting, featuring PCB pin terminals for easy installation.
The contacts of this relay are made of silver alloy, which ensures excellent conductivity and resistance to wear.
Yes, this power relay complies with RoHS standards, emphasizing its environmental friendliness.
This relay belongs to the REL-MR series, which is designed for industrial applications.
