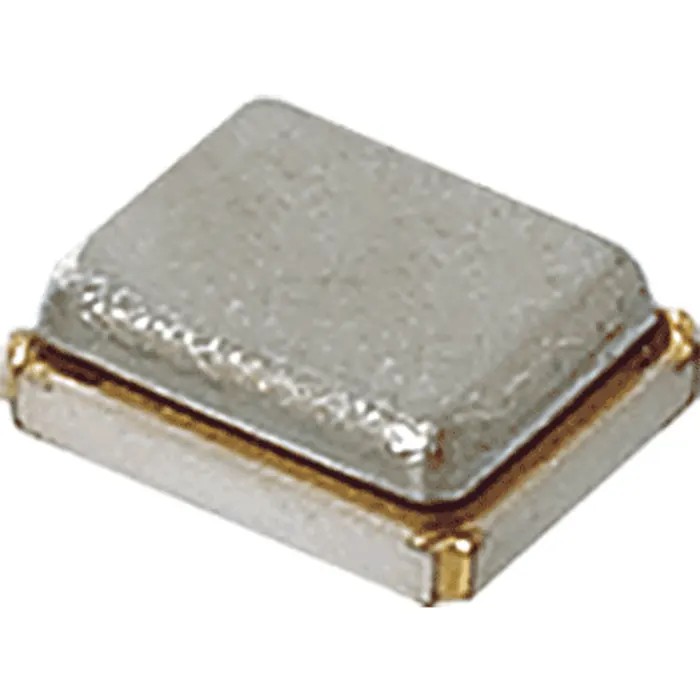

Murata 26 MHz Crystal Unit ±10 ppm Surface Mount 4-Pin 0.65 mm Height 1.6 mm Length 2 mm Width XRCGB26M000F1S2BR0

Free Delivery in India | Lowest Global Shipping Charges

Murata 26 MHz Crystal Unit ±10 ppm Surface Mount 4-Pin 0.65 mm Height 1.6 mm Length 2 mm Width XRCGB26M000F1S2BR0

Name: Murata 26 MHz Crystal Unit ±10 ppm Surface Mount 4-Pin 0.65 mm Height 1.6 mm Length 2 mm Width XRCGB26M000F1S2BR0
Brand: Murata
SKU: 413628
Price: 0.43 USD
Availability: InStock



Category Crystal Unit Brand Murata Condition New

Specifications

Country of Origin	Japan
Brand	Murata
Height	0.65mm
Length	1.6mm
Model	XRCGB26M000F1S2BR0
Packaging	Tape
Width	2mm
Mount Type	Surface
Series	XRCGB
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-30°C
Pin Count	4
Standard Frequency	26MHz
Load Capacitance	6pF
Series Resistance	60Ω

Key Features

This crystal unit features a 26 MHz standard frequency with ±10 ppm tolerance for consistent performance.
It is surface mount type with a 4-pin configuration for efficient PCB integration.
The device measures 1.6 mm in length, 2 mm in width, and 0.65 mm in height, supporting miniaturized electronic designs.
Operating temperature range spans from -30°C to 85°C, suitable for varied environmental conditions.
Load capacitance is specified at 6 pF to match typical oscillator circuits.
Series resistance of 60 Ω ensures effective signal oscillation and power efficiency.
Complies with RoHS directive, being lead-free and environmentally friendly.
Manufactured in Japan, reflecting high quality and reliability standards.

Product Description

Murata XRCGB26M000F1S2BR0 is a high-precision 26 MHz crystal unit designed for surface mount applications. This 4-pin crystal resonator delivers exceptional frequency stability with a tolerance of ±10 ppm, making it ideal for use in personal computers, visual equipment, and portable devices.

The compact dimensions of 1.6 mm length, 2 mm width, and only 0.65 mm height enable significant space savings on printed circuit boards while maintaining performance integrity. The unit’s load capacitance of 6 pF is perfectly suited for oscillator circuits used in communication clocks such as Wi-Fi and Bluetooth modules.

Engineered for wide operating temperature ranges from -30°C to 85°C, this crystal unit reliably operates across typical industrial and consumer environments. A series resistance of 60 Ω supports efficient oscillation signals with minimal power consumption.

Being RoHS-compliant, this product adheres to environmental safety standards by being lead-free, underscoring Murata’s commitment to sustainable manufacturing. Produced in Japan, the unit assures superior quality and robust reliability for demanding electronic applications.

Standard frequency of 26 MHz with ±10 ppm tolerance. Surface mount 4-pin package for easy PCB integration. Compact size dimensions enable board space optimization. Wide operating temperature range from -30°C to 85°C. Load capacitance of 6 pF suitable for oscillator circuits.

Series resistance of 60 Ω for efficient signal oscillation. RoHS-compliant and environmentally friendly. Manufactured in Japan ensuring high quality.

Ideal for industrial, consumer electronics, and communication device manufacturing. Explore more Crystal Units and electronic components at EnvMart for your design and production needs.
