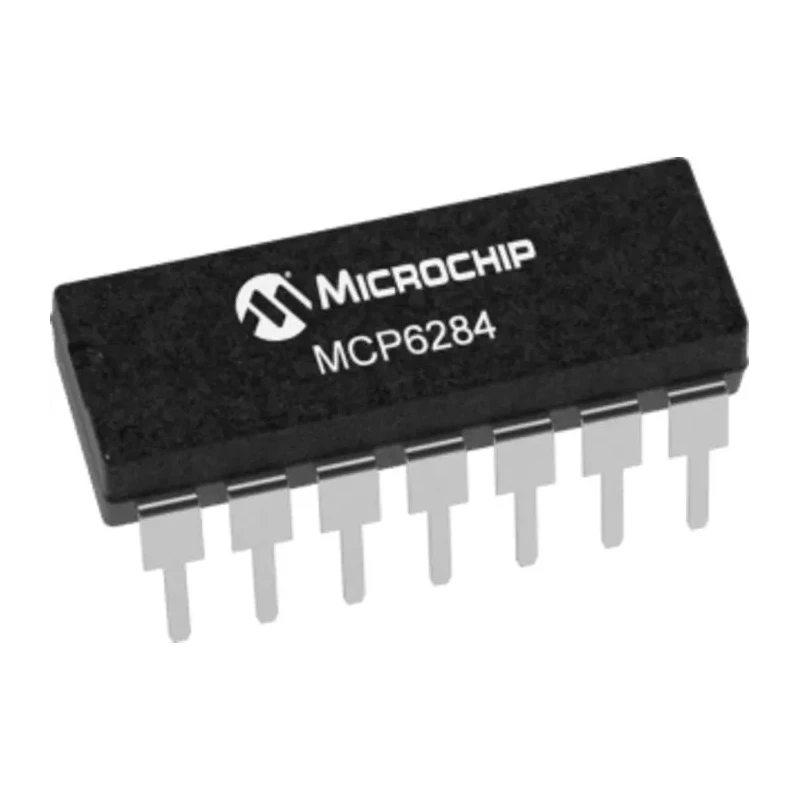

Microchip Operational Amplifier 5 MHz Gain Bandwidth Product, 14-Pin PDIP, 6V MCP6284-E/P

Free Delivery in India | Lowest Global Shipping Charges

Microchip Operational Amplifier 5 MHz Gain Bandwidth Product, 14-Pin PDIP, 6V MCP6284-E/P

Name: Microchip Operational Amplifier 5 MHz Gain Bandwidth Product, 14-Pin PDIP, 6V MCP6284-E/P
Brand: Microchip
SKU: 413210
Price: 20.22 USD
Availability: InStock



Category Operational Amplifier Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	3.3mm
Length	19.05mm
Model	MCP6284-E/P
Width	6.35mm
Mount Type	Through Hole
Series	MCP6284
Output Current	25mA
Maximum Operating Temperature	125°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Number Of Channels	4
Pin Count	14
Maximum Supply Voltage	6V
Minimum Supply Voltage	2.2V
GBP - Gain Bandwidth Product	5MHz
Input Bias Current	1 pA
Vos - Input Offset Voltage	±5 mV
Slew Rate	2.5V/μs

Key Features

Offers 4 channels for versatile amplification applications.
Operates with supply voltages ranging from 2.2V to a maximum of 6V for flexible power options.
Boasts ultra-low input bias and offset currents at 1 pA, ensuring precision signal amplification.
Handles input offset voltage up to ±5 mV and delivers a slew rate of 2.5 V/μs.
Supports output current up to 25 mA suitable for various electronic circuit demands.
Operates reliably across a wide temperature range from -40°C to 125°C, suitable for harsh environments.
Compact dimensions of 19.05mm length, 6.35mm width, and 3.3mm height in PDIP package.
Designed without automotive standards and approvals, fit for general industrial and commercial electronics.

Product Description

Microchip MCP6284-E/P Operational Amplifier is a high-performance analog device designed to deliver precise signal amplification in electronic circuit applications. This operational amplifier features a gain bandwidth product (GBP) of 5 MHz, making it suitable for fast and accurate signal processing tasks.

Packaged in a 14-pin PDIP through-hole mount, the device includes 4 independent amplifier channels, which facilitates multi-channel amplification within a compact footprint.

With a minimum supply voltage of 2.2V and a maximum of 6V, this amplifier provides flexibility for various power supply designs. The ultra-low input bias and offset currents at 1 pA and offset voltage of ±5 mV enhance the precision and reduce signal distortion.

The device exhibits a robust slew rate of 2.5 V/μs and supports an output current capability of up to 25 mA, suitable for driving a range of loads.

Designed for demanding environments, it operates reliably over a wide temperature range from -40°C to 125°C, making it ideal for industrial, laboratory, automotive (non-certified), and commercial electronics applications.

Its compact PDIP package with dimensions 19.05mm length, 6.35mm width, and 3.3mm height ensures ease of installation on standard PCB layouts. Offers 4 channels for versatile amplification applications. Operates with supply voltages ranging from 2.2V to a maximum of 6V for flexible power options.

Boasts ultra-low input bias and offset currents at 1 pA, ensuring precision signal amplification. Handles input offset voltage up to ±5 mV and delivers a slew rate of 2.5 V/μs. Supports output current up to 25 mA suitable for various electronic circuit demands.

Operates reliably across a wide temperature range from -40°C to 125°C, suitable for harsh environments. Compact PDIP packaging allows easy through-hole mounting on diverse PCB designs. This Operational Amplifier is suited to industrial, electronics manufacturing, audio signal processing, test and measurement equipment, and general-purpose amplification circuits.
