| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Material | Ferrite |
| Height | 0.6mm |
| Length | 1.6mm |
| Model | BLE18PS080SH1D |
| Depth | 0.8mm |
| Packaging | 8mm wide Paper Tape |
| Mount Type | Solder |
| Current Rating | 8A |
| Series | BLE18_SH |
| Maximum Operating Temperature | 125°C |
| Package Type | 0603 |
| Sub Type | Chip Ferrite Bead |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q200 |
| Maximum DC Resistance | 0.005Ω |
| Impedance at 100 MHz | 8.5Ω |
| Automotive Standard | AEC-Q200 |
| Impedance at 25 MHz | 2.4Ω |
| Impedance at 300 MHz | 19.8Ω |
| Impedance at 50 MHz | 4.73Ω |
| Impedance at 1 GHz | 30.4Ω |

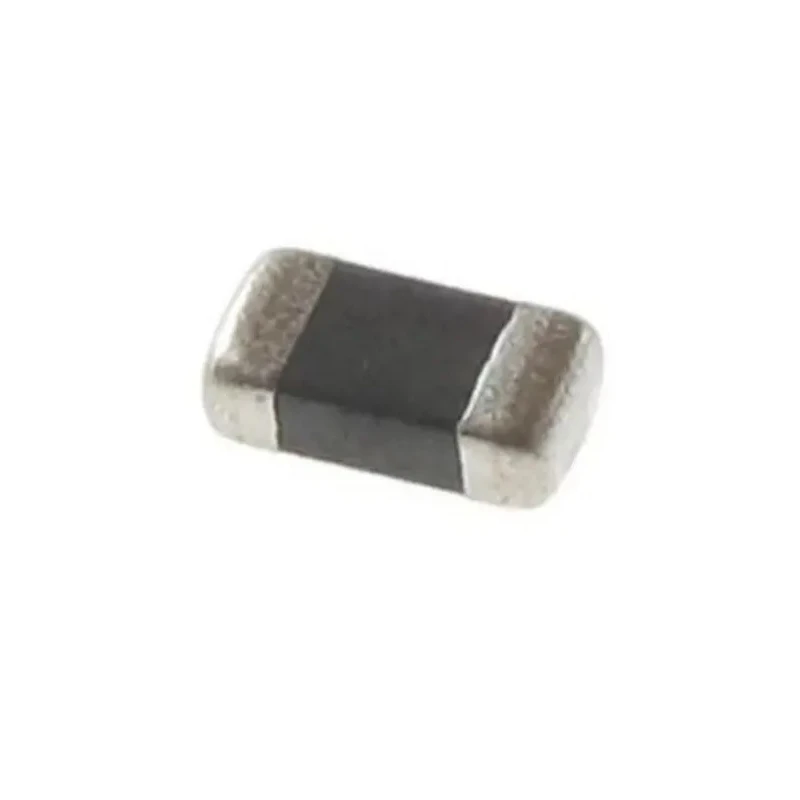

Murata BLE18PS080SH1D Chip Ferrite Bead is a precision passive component designed to reduce electromagnetic interference in automotive and industrial electronic circuits. Its chip form and 0603 package make it ideal for surface mount applications where space is limited.
This ferrite bead operates effectively across a wide frequency range with 2.4 Ω impedance at 25 MHz and rising to 30.4 Ω at 1 GHz, guaranteeing efficient noise suppression. The low maximum DC resistance of 0.005 Ω allows it to be used in high current applications without significant voltage loss.
Constructed from ferrite material with nickel barrier external electrodes, it provides excellent thermal stability and solder heat resistance. The device conforms to the AEC-Q200 standard, which certifies it for automotive electronics, ensuring robust performance under extreme temperature conditions from -55 °C to +125 °C.
The solder mount design simplifies assembly on PCBs without the need for ground connections, helping reduce layout complexity. Its small size, measuring 1.6 mm in length, 0.8 mm in depth, and 0.6 mm in height, makes it suitable for compact and densely populated circuit boards.
Effective EMI filtration in automotive electronic and industrial applications. High current rating supports circuit stability without distortion. Complies with industry automotive reliability standards AEC-Q200. Compact 0603 surface-mount package for space-constrained designs.
Nickel barrier electrodes improve soldering reliability and durability. Wide operating temperature range suited for harsh environments.
This Murata chip Ferrite Bead is ideal for engineers designing automotive electronics, communication devices, and other high-frequency sensitive equipment. Its proven quality and compliance make it a dependable choice for reducing EMI in demanding applications.
