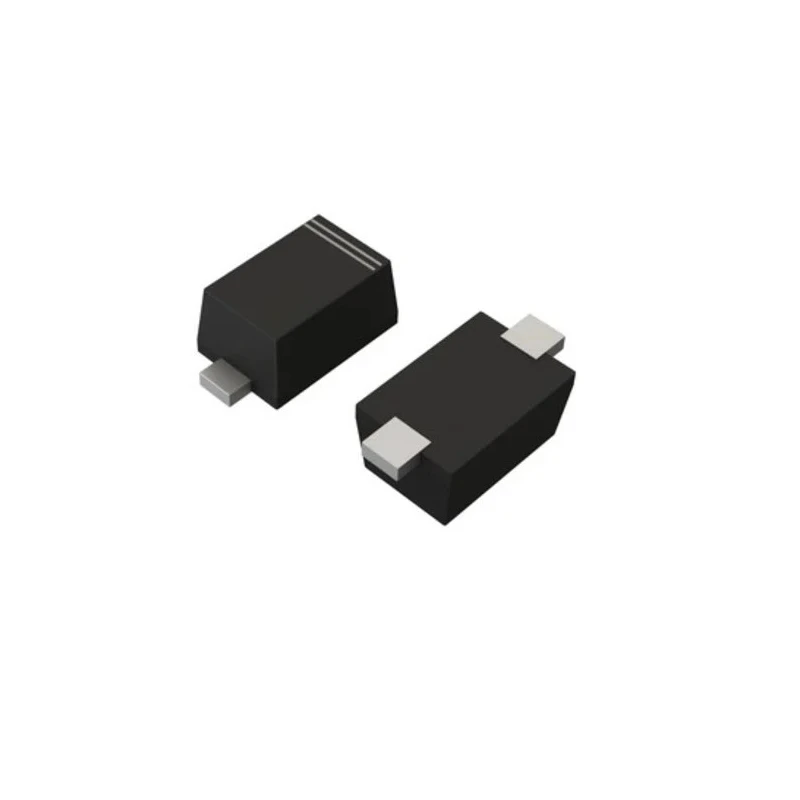

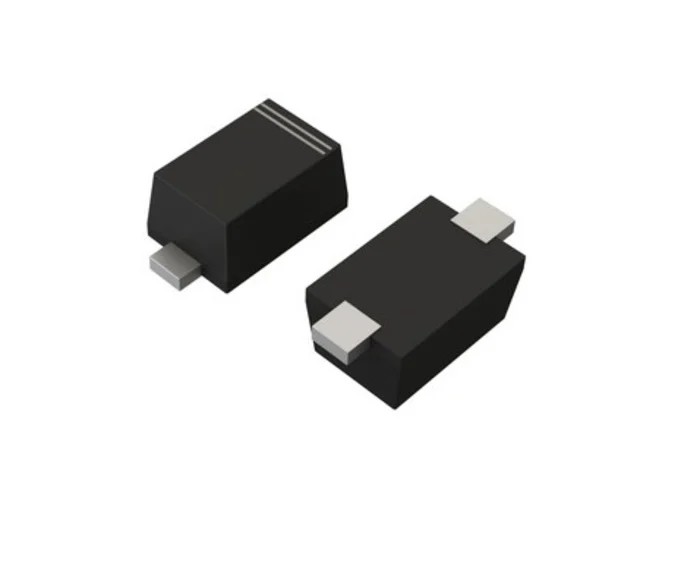

ROHM 1.52 V Zener Diode Isolated Surface Mount 150 mW SOD-523 EDZVFHT2R5.1B
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.7mm |
| Length | 1.7mm |
| Model | EDZVFHT2R5.1B |
| Mount Type | Surface |
| Series | EDZVFH |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-523 |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 150mW |
| Diode Configuration | Isolated |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 2μA |
| Nominal Zener Voltage Vz | 5.2V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 500Ω |
Key Features
- Nominal Zener voltage of 5.2 V for effective voltage regulation.
- Compact surface mount package type SOD-523 suited for space-constrained assemblies.
- Maximum power dissipation rated at 150 mW for low power applications.
- Isolated diode configuration ensuring stable electrical performance.
- Maximum operating temperature of 150°C for enhanced thermal stability.
- Low maximum reverse leakage current of 2 μA at rated voltage.
- Designed with silicon epitaxial planar structure for improved reliability.
- Complies with RoHS directive and meets AEC-Q101 automotive standard.
Product Description
ROHM EDZVFHT2R5.1B is a 1.52 V isolated Zener diode designed for applications requiring precise voltage regulation with a nominal voltage of 5.2 V and power dissipation up to 150 mW. Its small surface mount SOD-523 package allows easy integration into compact electronic circuits.
Constructed using silicon epitaxial planar technology, this diode provides high reliability and stability under thermal stress, operating continuously up to 150°C. It features a maximum reverse leakage current of 2 μA and a maximum Zener impedance of 500 Ω, suitable for voltage regulation usage in sensitive electronic components.
This diode meets stringent quality standards including RoHS compliance and the automotive-specific AEC-Q101 certification, making it appropriate for both industrial and automotive electronics.
Typical applications include voltage regulation, voltage reference, and protection circuits where a stable voltage source is required. The isolated diode configuration with 2 pins supports straightforward surface-mount PCB assembly.
Nominal Zener voltage of 5.2 V for accurate voltage regulation. Small SOD-523 surface mount package for compact design. Maximum power dissipation of 150 mW suitable for low power circuits. Isolated type diode configuration enhances performance stability.
Peak operating temperature of 150°C ensuring rugged operation. Low reverse leakage current minimizing unwanted losses. Silicon epitaxial planar structure providing high reliability. RoHS compliant and AEC-Q101 standard certified for automotive use.
Pin count of 2 enables standard circuit connections. Test current of 5 mA guarantees consistent electrical characteristics.
This ROHM Zener diode is ideal for industrial, automotive, and consumer electronics for voltage regulation and protection tasks. Its compact package and robust specs make it reliable for various high-precision applications.
Explore additional ROHM semiconductor products and Zener diode solutions on EnvMart for your design and manufacturing needs.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 5.2 V, designed for effective voltage regulation.
It has a maximum power dissipation rating of 150 mW, making it suitable for low power applications.
The maximum operating temperature for this diode is 150°C, ensuring enhanced thermal stability.
This Zener diode is packaged in a compact SOD-523 surface mount type, suitable for space-constrained assemblies.
This diode has a pin count of 2, supporting straightforward surface-mount PCB assembly.
It features an isolated diode configuration, which enhances performance stability.
The maximum Zener impedance for this model is 500 Ω, suitable for voltage regulation applications.
The test current for this diode is 5 mA, which guarantees consistent electrical characteristics.
This diode complies with RoHS directives and meets the AEC-Q101 automotive standard.
The height of this diode is 0.7 mm and the length is 1.7 mm, making it compact for various applications.
This Zener diode is suitable for applications such as voltage regulation, voltage reference, and protection circuits.
