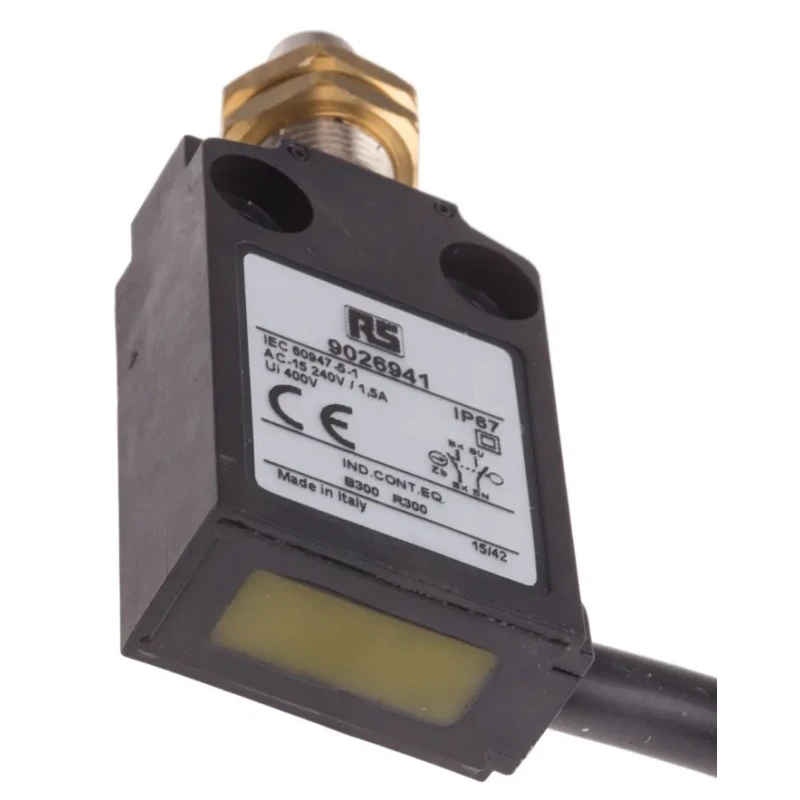

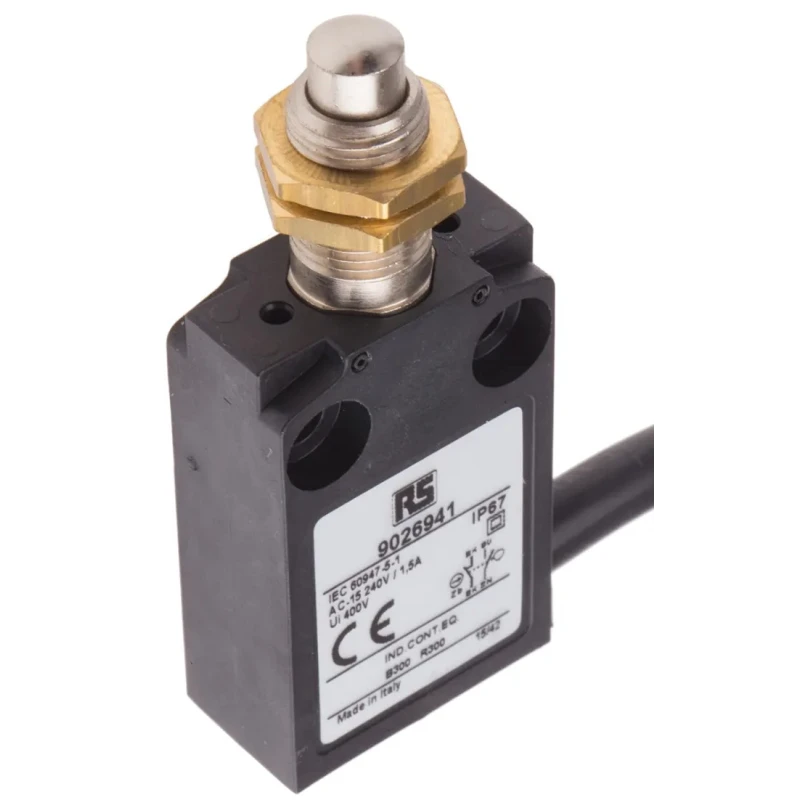

RS PRO Plunger Limit Switch 1 NO/1 NC, IP67, Thermoplastic Housing, 240V AC, 5A IP67

RS PRO IP67 plunger limit switch model IP67 is an industrial-quality electrical component designed for accurate and reliable limit detection in automation systems. It features a robust thermoplastic housing that ensures IP67 ingress protection, making it suitable for harsh environments involving dust and temporary water immersion up to 1 meter depth.

This limit switch utilizes a plunger actuator type coupled with both normally open (1 NO) and normally closed (1 NC) snap-action contacts for flexible integration into control circuits. It can safely handle switching currents up to 5 amperes and a maximum AC voltage of 240 volts, with DC voltage up to 250 volts.

Operating temperatures between -25°C and +70°C allow this device to function optimally in a wide range of industrial and commercial settings including manufacturing, water treatment, HVAC, and machinery automation. Its cable-type terminal connection with pre-wired PVC cable simplifies installation tasks.

The compact dimensions (31.5mm length × 74mm width × 16mm depth) and vertical mounting orientation provide convenient placement in control panels or equipment housings. With a mechanical life rated at 10 million operations and an operating force of 15N, this switch guarantees longevity and precise actuation feedback.

This product meets stringent international approvals such as CE, CSA, IEC, IMQ, RoHS, RU, and UL ensuring compliance and quality assurance across various markets. Manufactured in Italy, it is built to high standards for industrial automation and process control applications.

This limit switch features a plunger actuator for precise position detection. Equipped with both normally open (NO) and normally closed (NC) contacts for versatile operation. Constructed with a durable thermoplastic housing and rated IP67 for dust and water immersion protection.

Operates safely within a temperature range from -25°C to +70°C for varied environments. Rated switching current is 5 amps at 240V AC and 250V DC maximum voltage. Includes snap-action contacts with a mechanical life expectancy of 10 million operations.

Designed for vertical mounting with a compact size of 31.5mm length, 74mm width, and 16mm depth. Features cable-type terminals pre-wired with a PVC cable for easy installation. Complies with multiple international standards including CE, CSA, IEC, UL, and RoHS for reliability.
