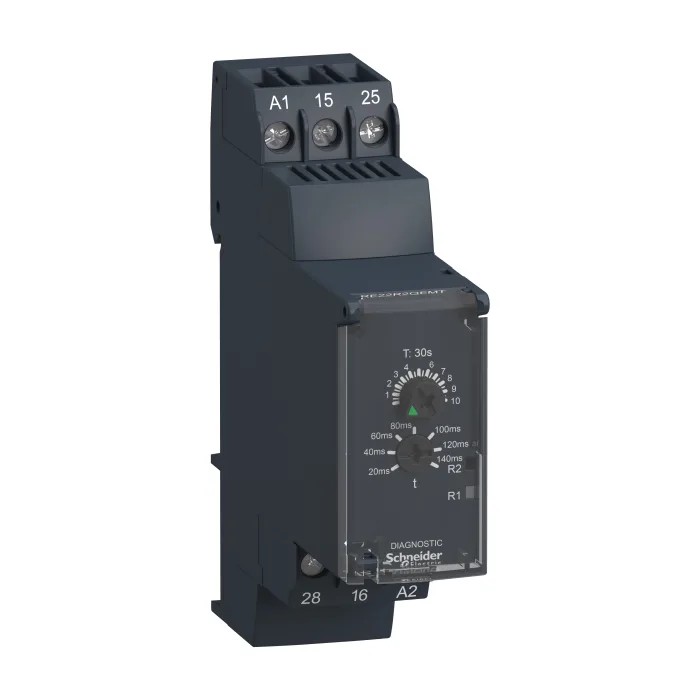

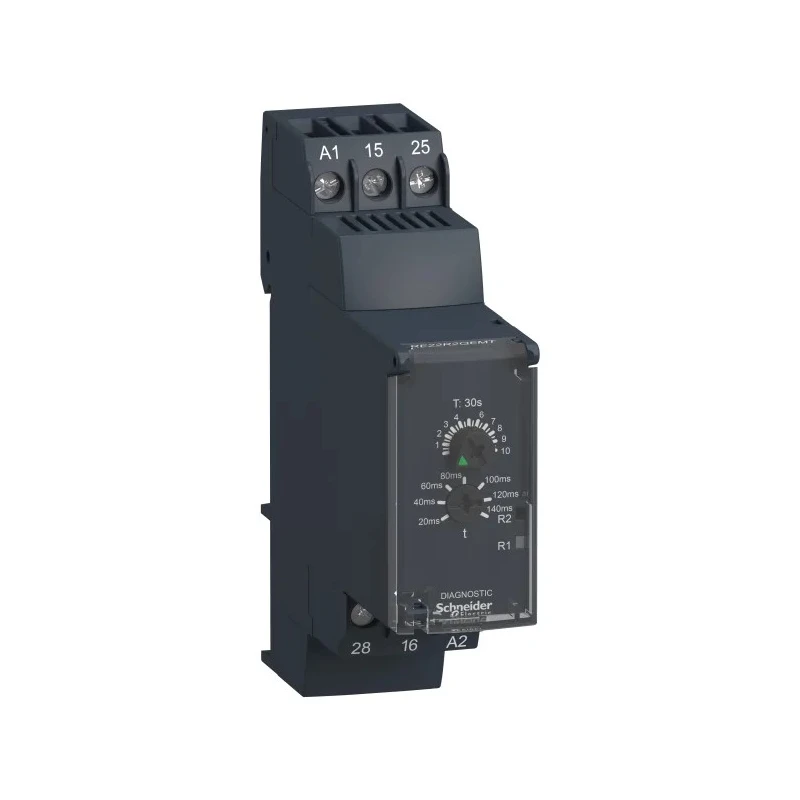

Schneider Electric Harmony Time Series DIN Rail Timer Relay, 2-Contact, 24 to 240 V DC, 380V AC, 415 V AC, 0.3 to RE22R2QEMT

Schneider Electric RE22R2QEMT Harmony Time Series DIN Rail Timer Relay is precision-engineered for industrial and commercial automation applications, particularly for valve control tasks. Featuring a dual-contact (DPDT) relay design, it offers reliable timing functionality with a range adjustable between 0.3 and 30 seconds.

The relay supports a wide supply voltage range including 24 to 240 V DC and 380 to 415 V AC, making it highly versatile for use in various electrical systems. It mounts compactly on a standard DIN rail with a profile width of 22.5 mm, measuring 79.5 mm in height, 90 mm in width, and 22.9 mm in length.

The timing setting is conveniently adjustable via a knob, allowing precise control of operation times. The relay is designed with screw terminals for robust and secure electrical connections. Its housing is made from self-extinguishing material, enhancing the device's safety profile in demanding industrial environments.

Operational durability is ensured by the relay's ability to function accurately across a temperature range of -20°C to 60°C, with repeat accuracy tightly controlled within ±0.5% to comply with IEC 61812-1 standards. It features LED state indication to provide immediate visual feedback on its status.

The ingress protection level is graded as IP20 at the terminal block, IP40 for the housing, and IP50 at the front face, offering effective protection against dust and limited contact. Designed for star-delta motor control modes, the timer relay is suitable for various industrial automation scenarios.

Operates with supply voltages ranging from 24 to 240 V DC and 380 to 415 V AC. Compact DIN rail mounting for efficient panel integration. Two contacts configured as DPDT for versatile switching. Adjustable timing control knob with range from 0.3 to 30 seconds.

Durable self-extinguishing housing material for safety. Wide operating temperature range from -20°C up to 60°C. IP ratings: IP20 terminal block, IP40 housing, IP50 front face. State indication via LED for operation monitoring.

Repeat accuracy of ±0.5% complying with IEC 61812-1 standards. Screw terminal connections for secure wiring.

This timer relay is ideal for industrial automation, electrical control panels, HVAC systems, manufacturing equipment, and water treatment plants requiring precise timing control for valve actuation. The robust build and compliance with international standards make the RE22R2QEMT a reliable component for demanding electrical relay applications.
