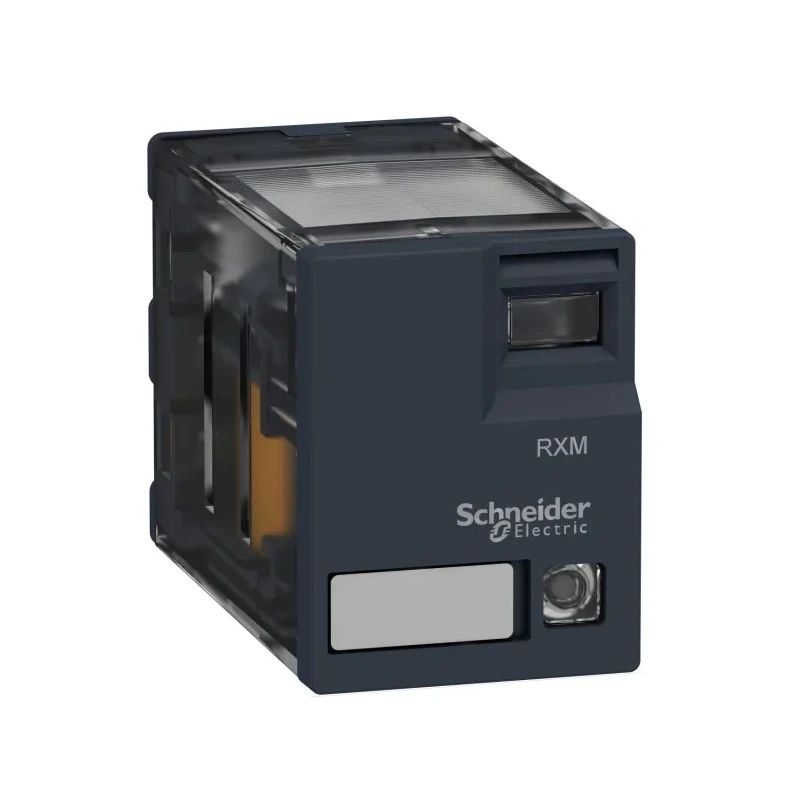

Schneider Electric Power Relay 24V AC Coil 12A Switching Current DPDT RXM2AB3B7
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 27mm |
| Length | 21mm |
| Model | RXM2AB3B7 |
| Width | 47.7mm |
| Contact Material | Silver Alloy |
| Series | RXM |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Plug-In |
| Standards/Approvals | CE, CSA |
| Coil Resistance | 180Ω |
| Coil Voltage | 24V ac |
| Switching AC Voltage | 250V ac |
| Coil Power | 1.2W |
Key Features
- Compact and robust power relay designed for industrial applications.
- Features a plug-in terminal type for easy installation and maintenance.
- Operates reliably in temperatures ranging from -40°C to 55°C.
- Switching power capacity is 3 kVA with a maximum switching AC voltage of 250V.
- Coil resistance is 180 ohms with a coil power consumption of 1.2W.
- Constructed with silver alloy contact material for durability and performance.
- Includes mechanical status indicator and test button for functional verification.
- Complies with CE and CSA standards for quality and safety.
Product Description
Schneider Electric RXM2AB3B7 power relay is a miniature relay from the RXM series featuring a 24V AC coil and a 12A switching current in a DPDT contact configuration. This relay is widely used in industrial environments including machine building, HVAC systems, and electrical control enclosures.
The relay is designed to be compact and hard-wearing, offering reliable switching performance with plug-in mounting terminals. It supports operating temperatures from -40°C minimum to 55°C maximum, making it suitable for a broad range of climate conditions.
This product features silver alloy contacts that ensure durability and excellent conductivity, supporting a switching power of up to 3 kVA at 250V AC. The coil resistance is precisely 180 ohms and power consumption is low at 1.2 watts, promoting efficiency.
The RXM2AB3B7 relay integrates a test button and a mechanical indicator to easily verify relay status, enhancing safety and servicing convenience. While the relay is non-latching, it functions as an electromechanical switch operated by the coil's magnetic field, ideal for push-button and control applications.
The relay meets CE and CSA standards, assuring compliance with international quality and safety standards. Please note, bases for mounting on DIN rails or using screws are sold separately.
Compact and robust design ideal for industrial control panels. Plug-in terminal type simplifies installation. Wide operating temperature range from -40°C to 55°C. Contact material made from silver alloy for reliable operation.
Switching power up to 3 kVA and a maximum voltage of 250V AC. Integrated test button and mechanical status indicator. Compliant with CE and CSA certifications.
This Schneider Electric power relay is suited for various industrial sectors including electrical automation, manufacturing equipment, HVAC systems, and more. Browse the EnvMart catalog for related Power Relay and electrical control products to support your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching power capacity of this relay is 3 kVA.
This model features a DPDT (Double Pole Double Throw) contact configuration.
The coil voltage is 24V AC and the coil power consumption is 1.2 watts.
It operates reliably in temperatures ranging from -40°C to 55°C.
The coil resistance is 180 ohms.
The contacts are made from silver alloy, ensuring durability and performance.
Yes, it includes a mechanical status indicator and a test button for functional verification.
The dimensions are 47.7mm in width, 21mm in length, and 27mm in height.
It complies with CE and CSA standards for quality and safety.
It features a plug-in terminal type for easy installation and maintenance.
The maximum switching AC voltage is 250V.
This relay is widely used in industrial environments including machine building, HVAC systems, and electrical control enclosures.
