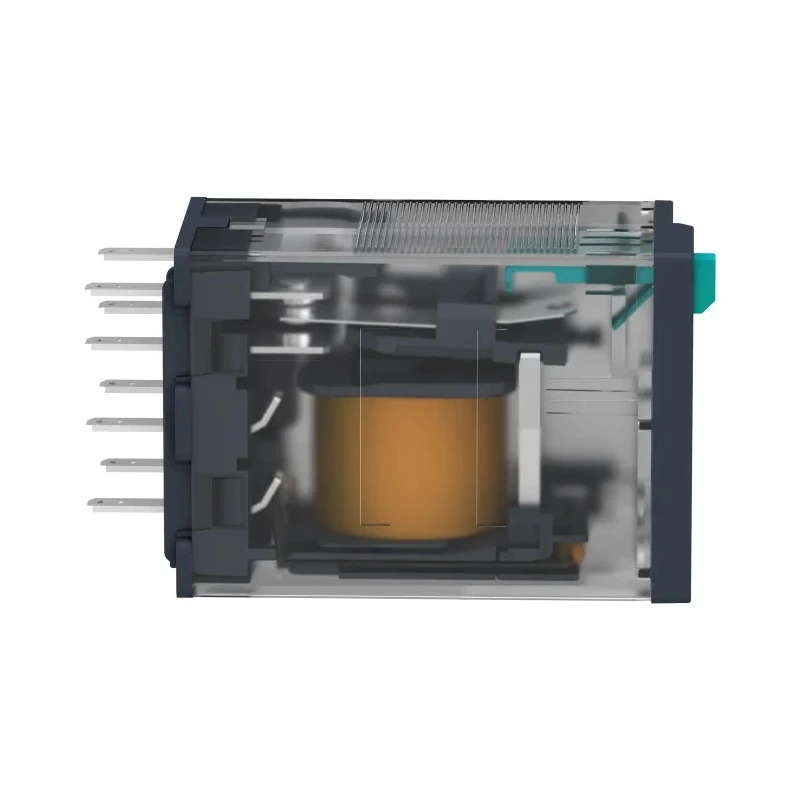

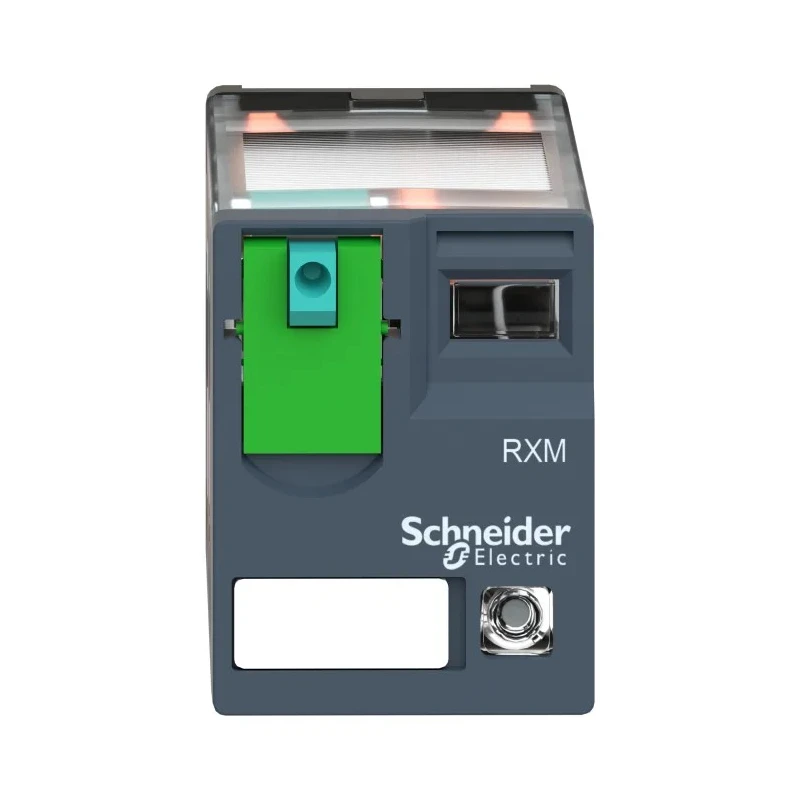

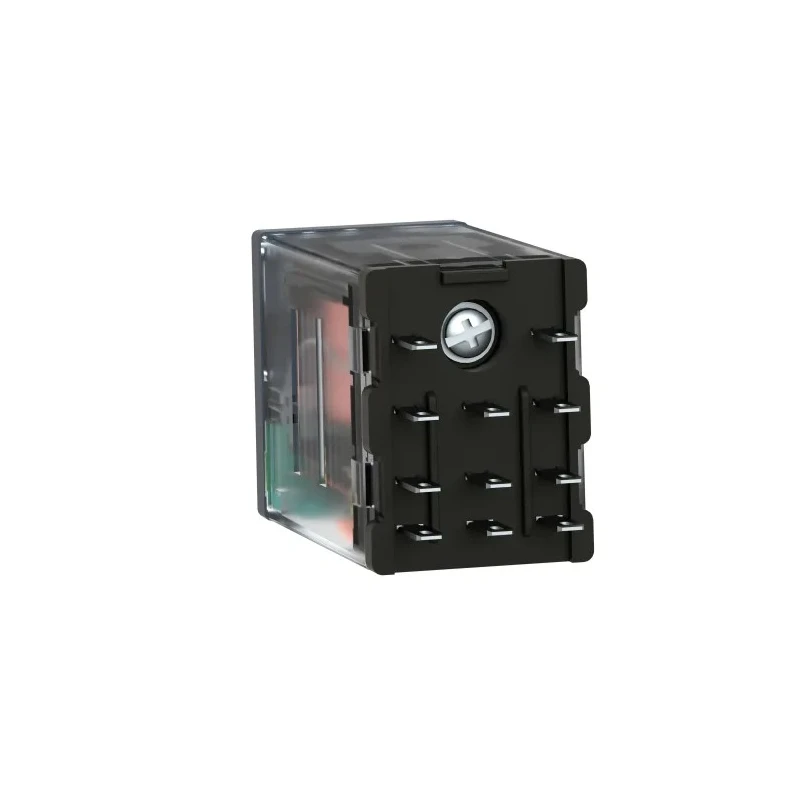

Schneider Electric Power Relay 24V DC Coil 10A Switching Current 3PDT RXM3AB2BD
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 27mm |
| Length | 21mm |
| Model | RXM3AB2BD |
| Width | 47.7mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXM |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 3PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |

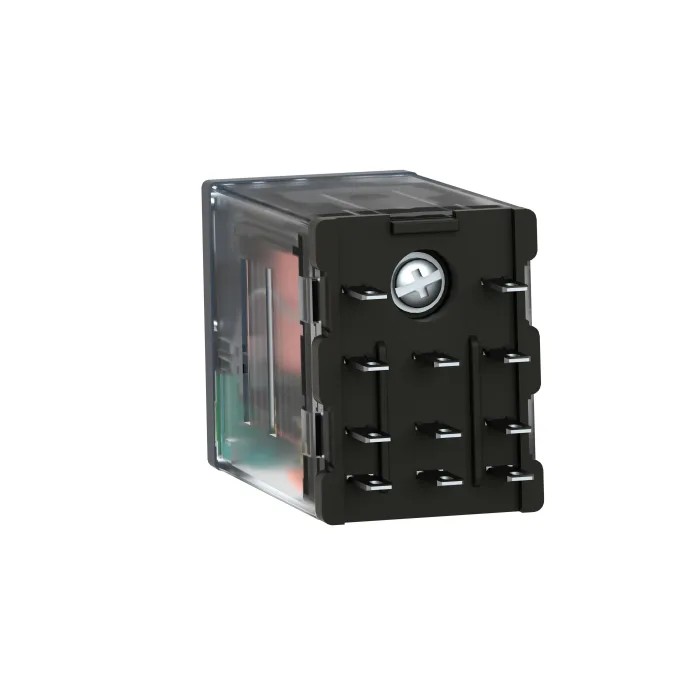

| Terminal type | Plug-In |
| Standards/Approvals | CSA, CE |
| Coil Resistance | 650Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 900mW |
Key Features
- Operates with a coil voltage of 24V DC for efficient control.
- Supports a switching current of 10 amperes for reliable power handling.
- Configured with 3PDT contacts for versatile switching requirements.
- Compact dimensions with 21mm length, 47.7mm width, and 27mm height.
- Constructed using silver alloy contact material for durability and conductivity.
- Designed to handle switching voltages of 28V DC and 250V AC.
- Coil resistance of 650 ohms and coil power consumption of 900 mW.
- Wide operating temperature range from -40°C to 55°C for harsh environments.
Product Description
Schneider Electric RXM3AB2BD is a high-quality power relay with a 24V DC coil and a 10A switching current, configured as 3PDT, ideal for industrial, automation, and electrical enclosure applications. This relay belongs to the Harmony Relay RXM series known for compact design and robust performance.
Its compact dimensions of 21mm length, 47.7mm width, and 27mm height allow integration into confined spaces while maintaining high functionality. The relay uses silver alloy contacts, ensuring excellent conductivity and durability over extended use.
Designed to operate from -40°C to 55°C, the RXM3AB2BD power relay performs reliably in harsh industrial environments. The coil consumes only 900mW with 650Ω resistance, optimizing energy efficiency. It supports switching voltages of up to 28V DC and 250V AC, offering versatile applicability.

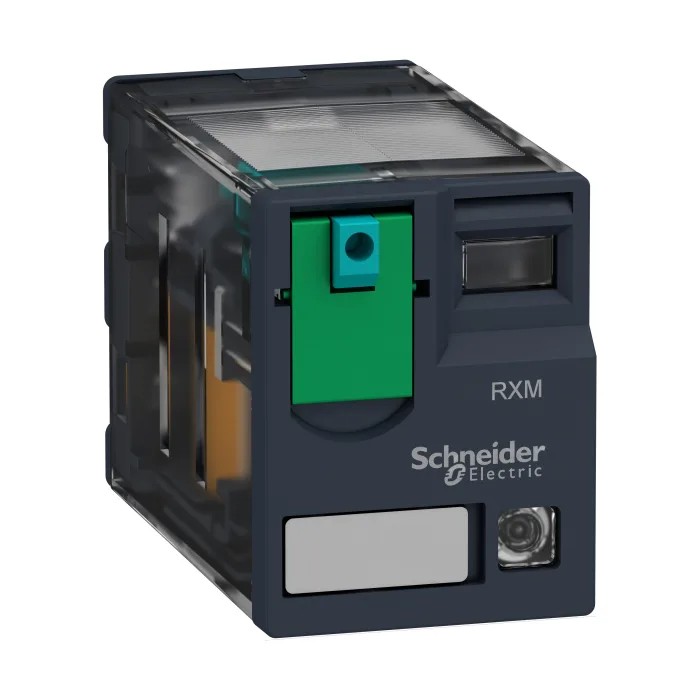

This plug-in type relay is easy to install and features a mechanical indicator for relay status and a test button, simplifying operation and diagnostics. Certification to CSA and CE standards guarantees compliance with international safety and quality requirements.
Commonly used in machine-building, HVAC systems, and other industrial control setups, this power relay enhances the functionality and reliability of control circuits. Bases for DIN rail or screw mounting must be ordered separately for customized installation.
Coil Voltage: 24V DC. Switching Current: 10A. Contact Configuration: 3PDT. Dimensions: 21mm (L) x 47.7mm (W) x 27mm (H). Contact Material: Silver Alloy. Operating Temperature: -40°C to 55°C. Standards: CSA, CE. Coil Resistance: 650Ω.
Coil Power: 900mW. Terminal Type: Plug-In.
Enhance your industrial and electrical control systems with the reliable and compact Schneider Electric RXM3AB2BD power relay, designed for demanding operational environments. Browse more Power Relays in the Electronics & Electricals category at EnvMart for tailored solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RXM3AB2BD power relay operates with a coil voltage of 24V DC.
This model supports a maximum switching current of 10 amperes.
It is configured with 3PDT (three poles double throw) contacts, allowing for versatile switching requirements.
The relay has compact dimensions of 21mm in length, 47.7mm in width, and 27mm in height.
The coil resistance for the RXM3AB2BD is 650 ohms.
The coil power consumption is 900 mW.
It operates effectively within a temperature range of -40°C to 55°C.
This model can handle switching voltages of up to 28V DC and 250V AC.
The contacts are made from silver alloy, which ensures good conductivity.
This relay is certified to CSA and CE standards, ensuring compliance with international safety and quality requirements.
It is a plug-in type relay, but bases for DIN rail or screw mounting must be ordered separately for installation.
This power relay is commonly used in machine-building, HVAC systems, and other industrial control setups.
