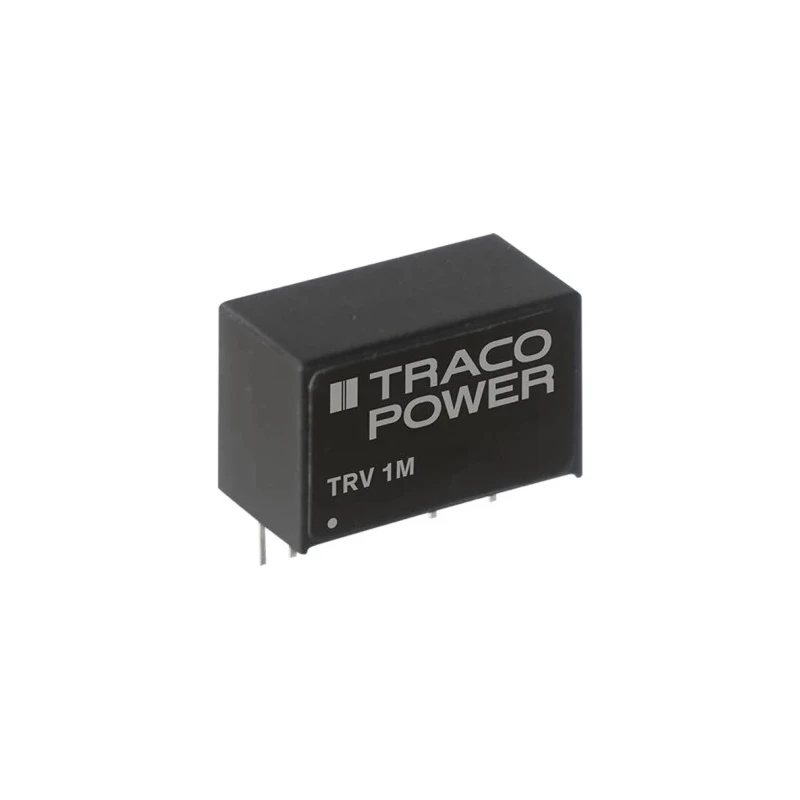

TRACOPOWER TRV DC/DC Converter 12V DC Output 42mA, 18V DC Maximum Input, 1W Through Hole SIP-9 Package TRV 1-1522M
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TRV DC/DC Converter, 12V dc/ 42 mA, 18V |
| Brand | TRACOPOWER |
| Efficiency | 0.83% |
| Length | 19.6mm |
| Model | TRV 1-1522M |
| Depth | 12.5mm |
| Gross Weight | 4.8g |
| Width | 9.8mm |
| Mount Type | Through Hole |
| Series | TRV |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 19360000h |
| Number of outputs | 2 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 18V dc |
| Standards/Approvals | EN, IEC, REACH, RoHS, UL |
| Minimum Input Voltage | 12V dc |
| Number of Pins | 5 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 42mA |
| Isolation Voltage | 5kV |
| Output Voltage 2 | -12V dc |
Key Features
- Compact SIP-9 through-hole package suitable for industrial and medical applications.
- Reinforced isolation voltage of 5000 VAC for safety and reliability.
- Wide operating temperature range from -40°C to 85°C without derating.
- Continuous short circuit protection ensures device durability.
- Low leakage current less than 2 μA for sensitive applications.
- Efficiency up to 85% optimizes power consumption.
- Semi-regulated outputs provide good voltage regulation cost-effectively.
- Compliance with EN, IEC, REACH, RoHS, and UL standards.
Product Description
TRACOPOWER TRV 1-1522M DC/DC Converter is a compact and reliable 1 Watt power converter delivered in a SIP-9 through-hole package. Designed with reinforced isolation of 5000 VAC, it is well suited for demanding medical and industrial electrical applications requiring robust electrical isolation to protect sensitive devices and ensures patient safety.
This model converts input voltages from 12V DC up to a maximum of 18V DC to dual outputs of ±12V DC at an output current of 42mA. The device features semi-regulated outputs offering adequate voltage regulation with cost efficiency in mind.
The converter is built to operate efficiently up to 85% efficiency, minimizing thermal dissipation and energy waste. It includes continuous short circuit protection and exceptionally low leakage current (.
