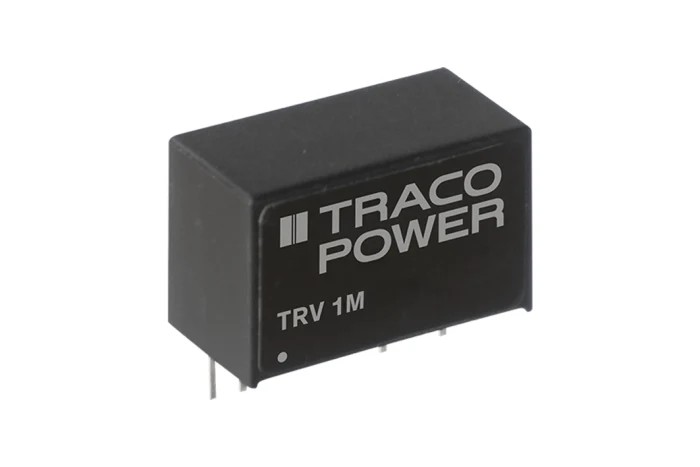

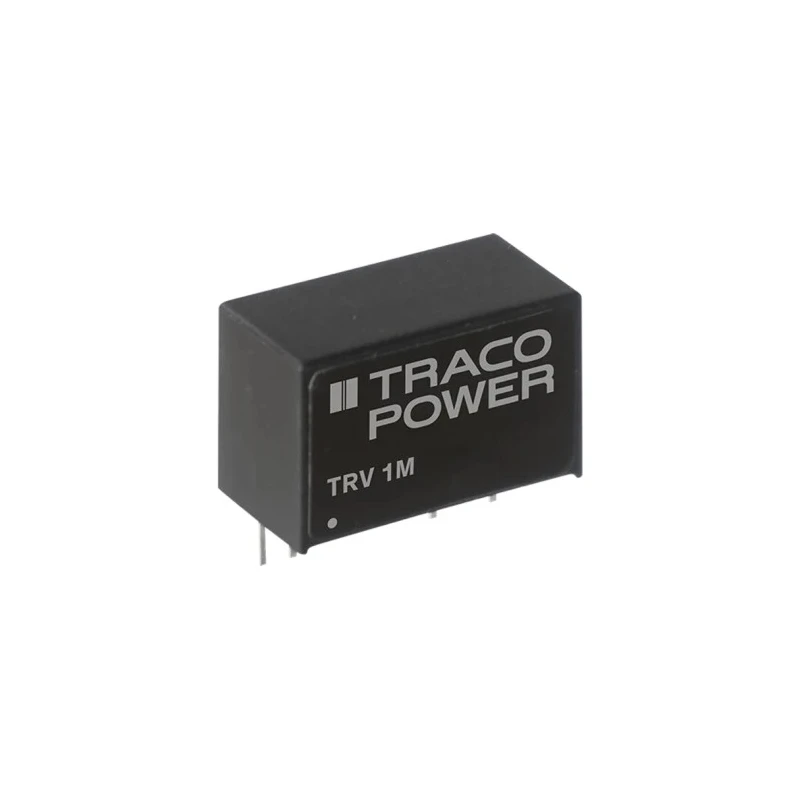

TRACOPOWER 1 Watt SIP-9 DC/DC Converter 3.3V DC Output 303mA 12-18V DC Input Through Hole TRV 1-1510M

TRACOPOWER TRV 1-1510M DC/DC Converter is a 1 Watt power supply module in a compact SIP-9 through-hole package. It features a semi-regulated 3.3V DC output at 303 mA current with an input voltage range of 12 to 18V DC, making it suitable for varied powered devices. Its reinforced isolation voltage of 5000 VAC ensures excellent protection, particularly in medical and industrial environments that demand patient safety with 2xMOPP certification and low leakage current below 2 μA.

The device operates reliably across a wide temperature range from -40 to +85°C without derating, supporting continuous operation in demanding ambient conditions. The built-in short-circuit protection enhances device longevity and user safety, while a high efficiency of up to 85% minimizes power loss and thermal footprint.

This TRV series converter is ideal for industrial control systems, embedded devices, and medical equipment requiring robust, isolated power conversion. The SIP-9 form factor with five pins ensures easy board mounting and integration.

Compact SIP-9 package with 5 pins supports through-hole mounting. Reinforced isolation voltage of 5000 VAC meeting IEC/EN/ES 60601-1 for medical safety. Wide input voltage range of 12 to 18V DC with semi-regulated 3.3V output.

Operating temperature from -40 to 85°C for harsh environments. Low leakage current less than 2 μA for patient safety compliance. Continuous short circuit protection for device reliability. Efficiency up to 85% reduces heat and energy consumption.

RoHS compliant and environmentally friendly design. Suitable for industrial, laboratory, medical, and embedded applications. Explore the EnvMart Electronics & Electricals category for more high-quality DC/DC Converters and power supply solutions tailored for industrial and medical applications.
