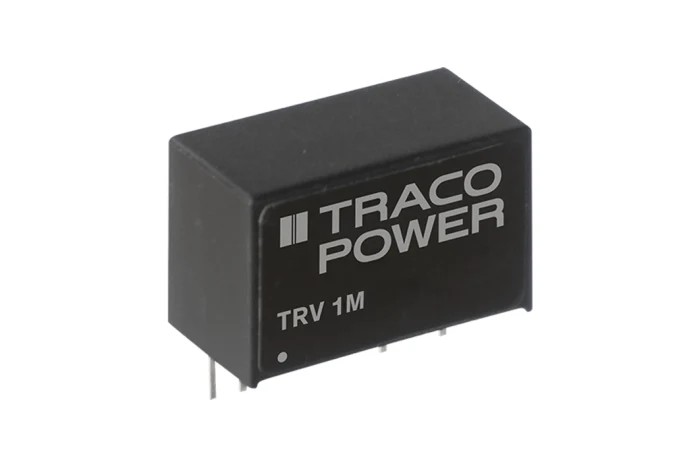

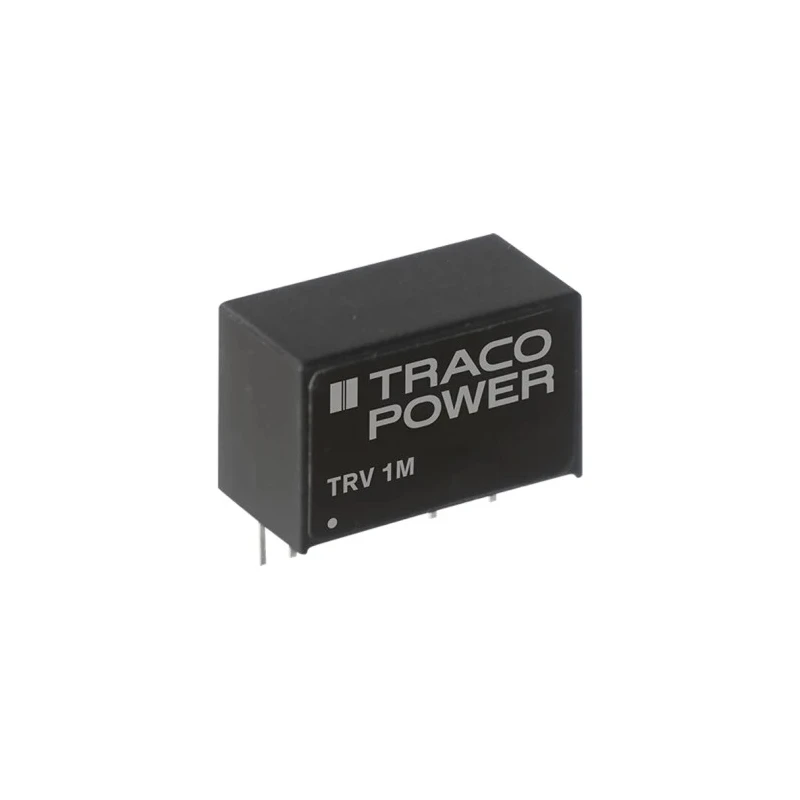

TRACOPOWER TRV 1M Dual Output DC/DC Converter 5V/100mA & -5V 100mA, 9.6 - 14.4V Input, 1W, Through Hole Mount, SIP TRV 1-1221M

The TRACOPOWER TRV 1M series DC/DC converter model TRV 1-1221M is a high-quality, dual output power supply designed for sensitive industrial and medical applications requiring safe, isolated voltages. It accepts a wide DC input voltage from 9.6 to 14.4 V and delivers a reliable output at +5 V and -5 V, each capable of supplying 100 mA with a total power rating of 1 Watt.

This converter features reinforced isolation rated at 5 kV to meet stringent IEC 60601-1 medical safety standards, making it suitable for use in medical devices. The SIP package with a compact footprint (19.6 mm length, 9.8 mm width, and 12.5 mm depth) and through hole mounting enables easy PCB installation. Its low ripple and noise characteristics (100mV Pk-Pk) ensure clean and stable power supply critical for sensitive electronics.

With an MTBF of over 19 million hours, this module offers outstanding reliability for demanding industrial automation, medical instrumentation, and battery-powered equipment. Operating temperature range from -40°C to 85°C allows deployment in harsh environments and high-altitude applications (up to 5000 meters).

The converter boasts an efficiency of 82% which helps minimize power dissipation and thermal management requirements. It includes output voltage adjustment capability within -5 to +5 V DC providing flexibility for various system demands.

Applications include medical devices, industrial automation control systems, battery-backed electronics requiring isolation, and any use case where low noise, high reliability, and certified isolation are necessary.

Dual output voltage capability of +5V and -5V at 100 mA each. Wide input voltage range from 9.6 V to 14.4 V DC. High reliability with a mean time between failure (MTBF) of 19,360,000 hours. Reinforced isolation with 5 kV voltage isolation for safe operation.

Compact SIP package measuring 19.6mm length, 9.8mm width, and 12.5mm depth. Through hole mount design facilitating easy PCB integration. Low ripple and noise of 100mV peak-to-peak ensuring clean power output. Operates within a temperature range of -40°C to 85°C for industrial usage.

Efficiency of 82% reduces energy losses during conversion. Compliance with international standards including EN, IEC, REACH, RoHS, and UL. Discover more products in our DC/DC Converter category to find solutions tailored for your industrial or medical power supply needs with EnvMart.
