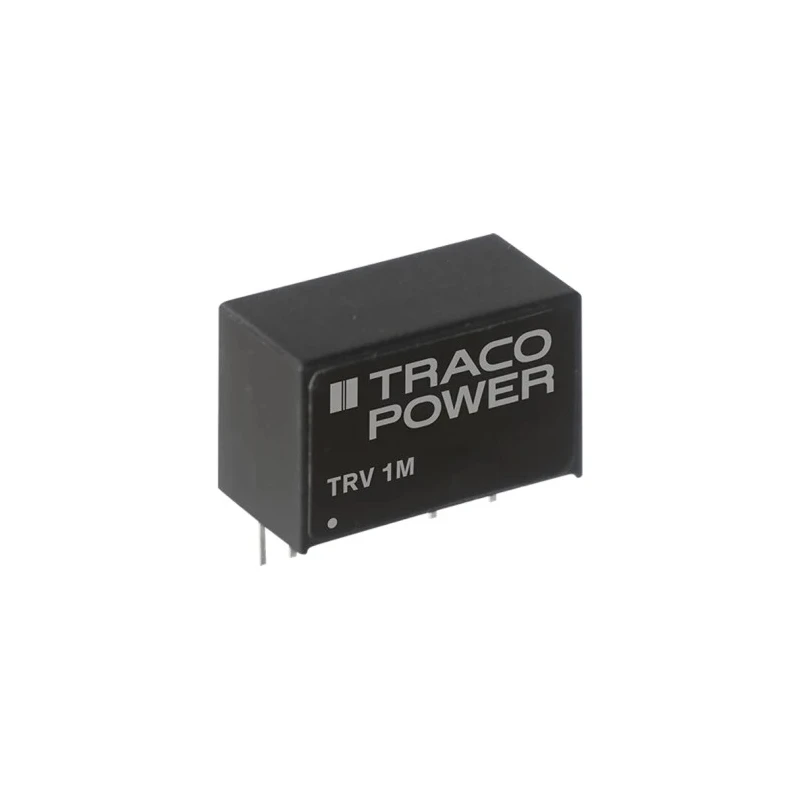

TRACOPOWER DC/DC Converter SIP-9 Package 15V DC Output, 34mA Output Current, 14.4V Max Input, 9.6V Min Input, 1W TRV 1-1223M

TRACOPOWER TRV 1-1223M is a high-quality DC/DC Converter engineered in a compact SIP-9 package suitable for demanding industrial and medical environments. It provides a 15V DC output at 34mA with a maximum output power of 1 Watt, making it ideal for low power applications that require stable voltage conversions.

This converter features an impressive reinforced isolation voltage of 5000 VAC, critical for electrical safety and patient protection in medical devices. The semi-regulated output design balances efficiency and cost effectiveness while maintaining voltage stability.

Designed for through hole mounting, the converter fits standard layouts and is easy to integrate on printed circuit boards. It operates over a broad input voltage range from 9.6V to 14.4V DC, accommodating supply voltage fluctuations.

Operating temperatures range from -40 °C up to 85 °C without derating, suitable for harsh and variable industrial conditions. The converter's low ripple and noise of 100mV peak-to-peak minimize interference in sensitive circuits.

Additionally, this model includes continuous short circuit protection and ultra-low leakage current less than 2 μA, protecting devices and patients alike. Compliance with international standards UL, RoHS, REACH, IEC, and EN ensures this product meets global safety and environmental regulations.

Package dimensions are 19.6mm length, 9.8mm width, and 12.5mm depth, with a lightweight build of 4.8 grams facilitating compact electronic designs.

This DC/DC converter is widely used in industrial automation, medical instrumentation, and embedded device applications requiring reliable power supply transformations with reinforced safety.

Features reinforced 5000 VAC isolation ensuring safety in sensitive environments. Supports an input voltage range from 9.6V to 14.4V DC for flexible deployment. Operates efficiently up to 85% with low ripple noise of 100mV peak-to-peak.

Designed for through hole mounting with a SIP package for easy assembly on PCBs. Wide operating temperature range from -40 to 85 °C without derating. Offers continuous short circuit protection for enhanced reliability. Low leakage current less than 2 μA to protect connected parts and interfaces.

Compact dimensions measuring 19.6mm length, 9.8mm width, and 12.5mm depth. Complies with UL, RoHS, REACH, IEC, and EN standards for ensured quality. EnvMart offers a comprehensive selection of DC/DC Converters including this TRACOPOWER TRV series for advanced electronics development and industrial applications.
