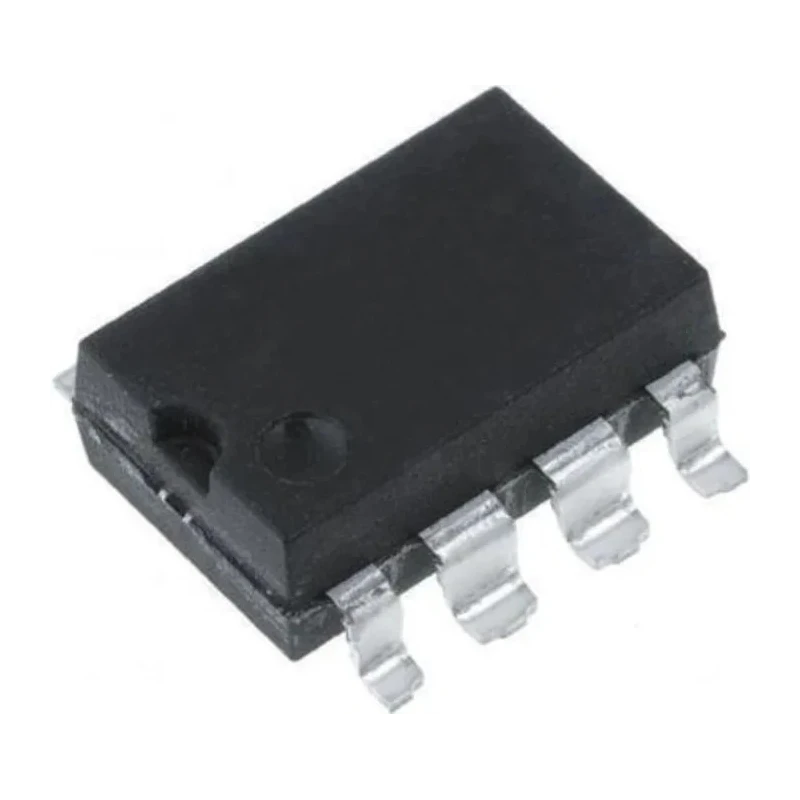

onsemi Optocoupler Surface Mount 8-Pin SMT MOSFET Output, 1 Channel, 1.8V Forward Voltage, 25mA Input Current FOD3150SD
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | FOD3150SD |
| Packaging | 50 units per Tube |
| Mount Type | Surface |
| Output type | MOSFET |
| Series | FOD |
| Maximum Operating Temperature | 100°C |
| Package Type | SMT |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 25mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL1577, IEC60747-5-2 |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 8 |
| Typical Rise Time | 60ns |
Key Features
- The device supports a maximum forward voltage of 1.8V.
- Input current maximum rating is 25mA for reliable operation.
- Typical rise and fall times are 60ns providing fast switching.
- Isolation voltage withstand capability reaches up to 5kVrms ensuring electrical isolation.
- Operating temperature ranges from -40°C to 100°C for diverse environmental applications.
- The product complies with UL1577 and IEC60747-5-2 standards.
- Packaging is supplied as 50 units per tube for ease of production use.
- The optocoupler is designed for IGBT/MOSFET gate driver applications.
Product Description
onsemi FOD3150SD optocoupler is a highly reliable surface-mount electronic component designed for industrial, HVAC, and manufacturing applications where electrical isolation and fast switching are required. This 8-pin SMT package integrates a MOSFET output with a single input channel, making it suitable for IGBT and MOSFET gate-drive circuits.
The component features a maximum forward voltage of 1.8V and can handle input currents up to 25mA. Typical rise and fall times are both 60ns, facilitating rapid signal transmission and switching essential to modern electronic control systems.
With an isolation voltage rating of 5kVrms, this optocoupler ensures high electrical isolation between input and output, enhancing safety and signal integrity in sensitive systems. The device operates reliably across a wide temperature range from -40°C to 100°C, making it suitable for use in harsh industrial environments.
Compliance with key safety standards including UL1577 and IEC60747-5-2 ensures that the FOD3150SD meets international quality and safety requirements. The device supports a maximum forward voltage of 1.8V. Input current maximum rating is 25mA for reliable operation.
Typical rise and fall times of 60ns facilitate fast switching applications. Rated for isolation voltage up to 5kVrms enhancing signal isolation. Designed for operation within -40°C to 100°C temperature range. Compliant with UL1577 and IEC60747-5-2 safety standards.
Supplied in 50 units per tube packaging for efficient assembly. Ideal for IGBT/MOSFET gate driver use.
This product is ideal for demanding industrial electronics applications including power management, signal isolation, and control systems used in manufacturing and automation sectors. The onsemi FOD3150SD supports improved production efficiency and electronic circuit protection.
For further selection of high-quality optocouplers, explore the Optocouplers category at EnvMart, where industrial-grade electronic components meet rigorous performance standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this optocoupler is 1.8V.
The maximum input current rating for the FOD3150SD is 25mA.
Both the typical rise and fall times for this model are 60ns, facilitating fast switching applications.
This optocoupler has an isolation voltage withstand capability of up to 5kVrms.
The operating temperature range for the FOD3150SD is from -40°C to 100°C.
This model complies with UL1577 and IEC60747-5-2 standards.
The optocoupler is supplied in packaging of 50 units per tube for ease of production use.
This optocoupler features a MOSFET output type.
The FOD3150SD has a single input channel.
This model is designed for surface mounting (SMT).
The country of origin for this optocoupler is India.
This optocoupler is designed for IGBT and MOSFET gate driver applications, making it suitable for industrial, HVAC, and manufacturing environments.
