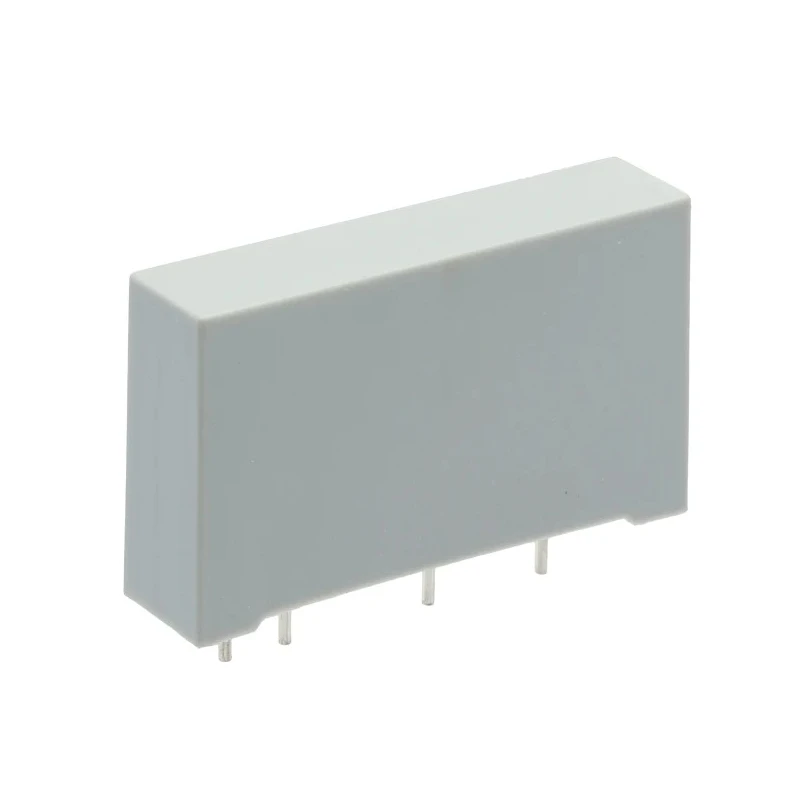

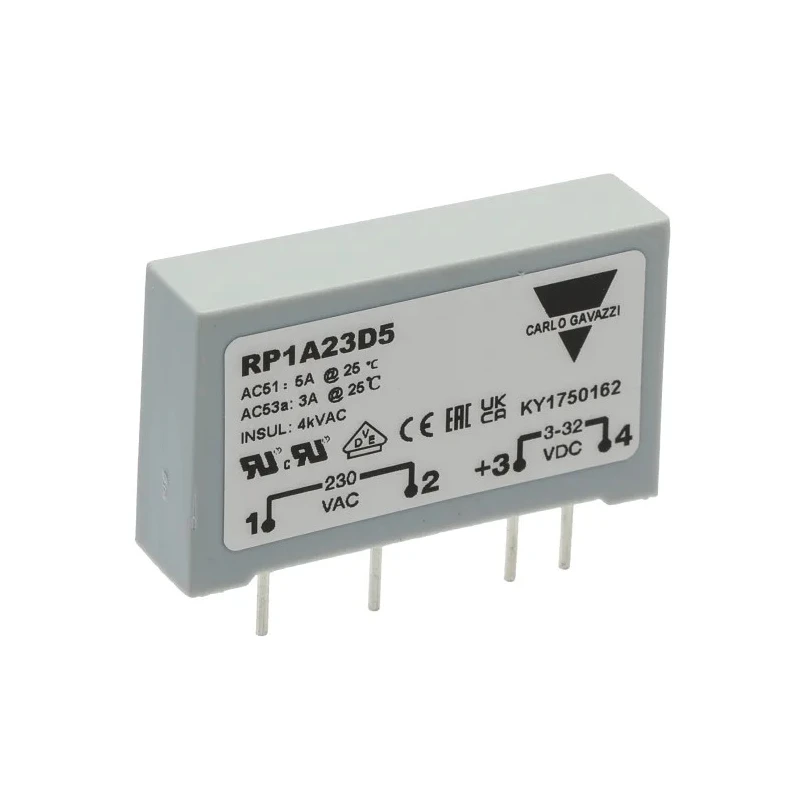

Carlo Gavazzi RP1 Series Solid State Relay, 5 A Load, PCB Mount, 265 V AC Load, 32 V DC Control RP1A23D5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Carlo Gavazzi |
| Height | 25.4mm |
| Length | 43mm |
| Model | RP1A23D5 |
| Width | 6mm |
| Mount Type | PCB |
| Series | RP1 |
| Maximum Operating Temperature | 70°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -20°C |
| Terminal type | PCB Terminal |
| Switching Function | Zero Cross |
| Maximum Load Current | 5A |
| Standards/Approvals | cUL, UL, CE-marking, VDE |
| Maximum Load Voltage | 265V ac |
| Minimum Load Voltage | 12V ac |
| Minimum Control Voltage | 3V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 1mA |
Key Features
- Designed for PCB mounting application.
- Supports maximum load current of 5 A.
- Operates within a load voltage range from 12 V AC to 265 V AC.
- Control voltage range supports 3 V DC minimum and 32 V DC maximum.
- Features zero cross switching function for phase angle control.
- Integral snubber network ensures operational stability.
- Off state leakage current is low at 1 mA for energy efficiency.
- Capacitance rating of 8 pF supports signal integrity.
Product Description
Carlo Gavazzi RP1A23D5 is an industrial-grade solid state relay designed for PCB mounting applications. It supports a maximum load current of 5 A and can handle load voltages up to 265 V AC, making it suitable for a wide range of electrical control and automation applications.
This relay operates on a control voltage range of 3 V DC to 32 V DC, offering precise control capabilities with phase angle zero-cross switching. The integral snubber network enhances device reliability by protecting against voltage spikes, ensuring stable switching performance.
The relay’s off state leakage current is only 1 mA which contributes to energy efficiency during operation. The capacitance of 8 pF supports minimal interference in signal switching, making it ideal for sensitive electronic circuits.
Its compact size, with 43 mm length, 25.4 mm height, and 6 mm width, allows easy integration into printed circuit boards. It is rated for operation across a wide temperature range from -20°C to 70°C, affording robust performance in diverse industrial and commercial environments.
Typical use cases include industrial and commercial automation systems, signal conditioning, and control circuits where reliable, silent, and maintenance-free switching is required.
Designed for PCB mounting application. Supports maximum load current of 5 A. Operates within a load voltage range from 12 V AC to 265 V AC. Control voltage range supports 3 V DC minimum and 32 V DC maximum. Features zero cross switching function for phase angle control.
Integral snubber network ensures operational stability. Off state leakage current is low at 1 mA for energy efficiency. Capacitance rating of 8 pF supports signal integrity. Operates safely between -20°C to 70°C ambient temperature.
Compact dimensions: 43 mm length, 25.4 mm height, and 6 mm width. Explore the Carlo Gavazzi range and related Solid State Relays at EnvMart for robust electronics and electrical control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 5 A.
It operates within a load voltage range from 12 V AC to 265 V AC.
The control voltage range for this relay is from 3 V DC to 32 V DC.
The dimensions are 43 mm in length, 25.4 mm in height, and 6 mm in width.
The off state leakage current is low at 1 mA, contributing to energy efficiency.
This model operates safely between -20°C and 70°C.
It is designed for PCB mounting applications.
It features a zero cross switching function for phase angle control.
The capacitance rating is 8 pF, which supports signal integrity.
The relay complies with cUL, UL, CE-marking, and VDE standards.
It is suitable for industrial and commercial automation systems, signal conditioning, and control circuits.
It includes an integral snubber network that enhances operational stability by protecting against voltage spikes.
