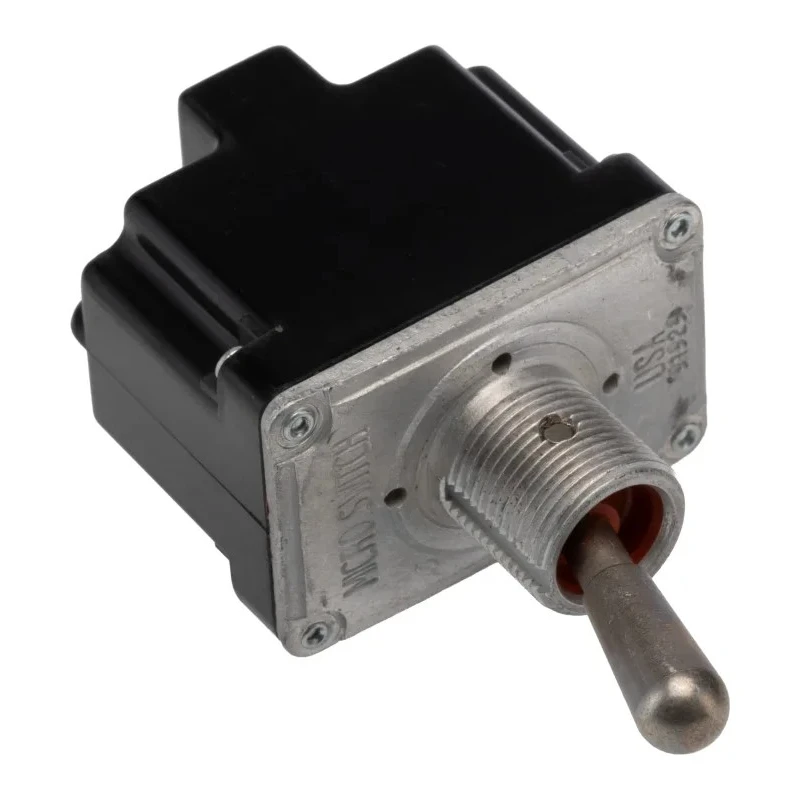

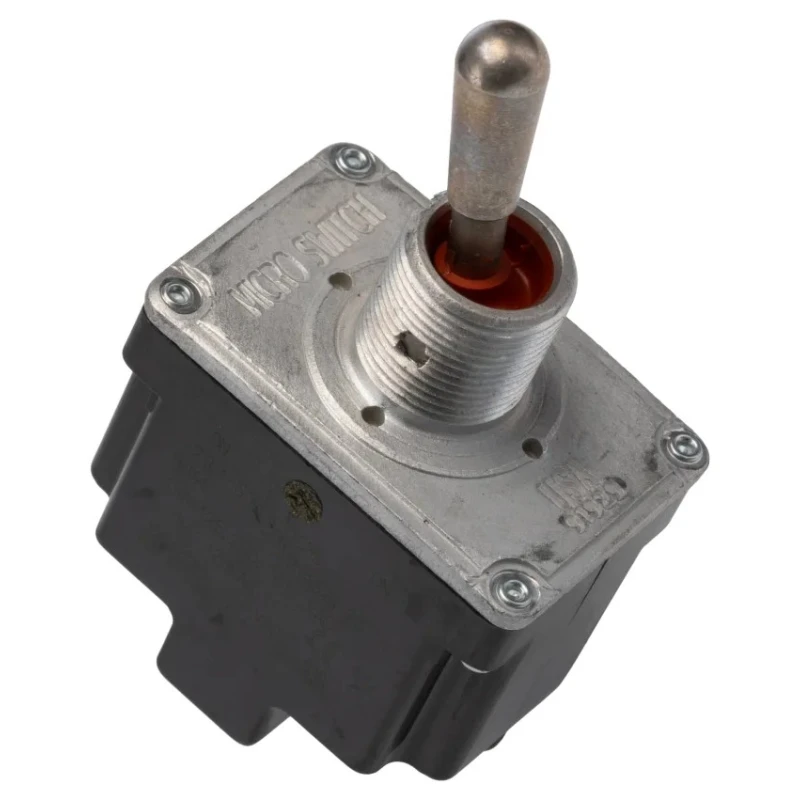

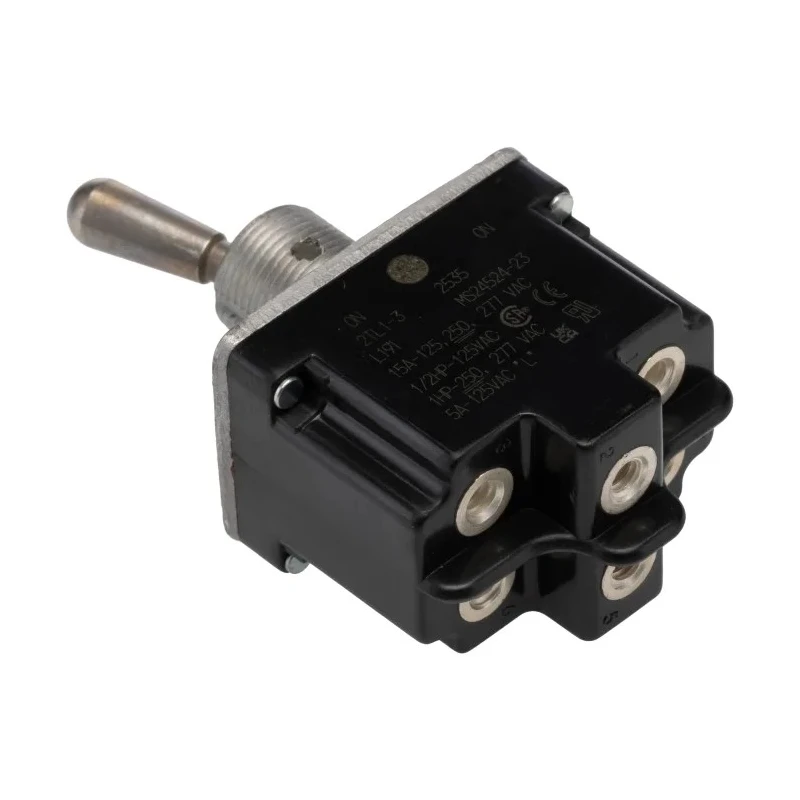

Honeywell Technologies Toggle Switch Panel Mount, On-On, DPDT, Screw Terminal, 277 V AC 2TL1-3

Honeywell Technologies 2TL1-3 Toggle Switch is a robust panel-mount manual switching device designed for industrial and electrical control applications. It features a double-pole, double-throw (DPDT) contact configuration with an On-On switch operation, allowing simultaneous changeover of two independent circuits to control auxiliary or signalling functions effectively.

Rated for contact currents of 15A, 20A, and 6A, this switch accommodates a range of load requirements, and its contact AC voltage rating of 277 V AC makes it suitable for higher-voltage control circuits common in industrial environments. Installation is straightforward using the 12.4 mm panel cutout and bushing mount design, which secures the switch firmly into control panels.

The switch includes screw terminal connections, providing secure, torque-controlled wiring suitable for field installation. Its operating temperature range of -65°C to 71°C enables dependable performance even under extreme temperature variations.

Mechanical characteristics include a 17 mm actuator length for positive manual feedback and compact overall dimensions: width 33.5 mm, height 26.7 mm, and length 22 mm, ensuring compatibility with standard panel designs. This toggle switch is compliant with CSA, CE, and UL safety standards, ensuring recognized quality and reliability for demanding applications.

Applications for the Honeywell 2TL1-3 toggle switch include control panel changeover circuits in industrial automation, motor control centres for auxiliary switching, electrical test rigs requiring signal path selection, HVAC system control, and bespoke machinery manual control interfaces. Its durable component design accommodates frequent manual actuation while maintaining electrical integrity.

Double-pole double-throw contact configuration for dual-circuit switching. Rated contact current supports multiple load conditions. Screw terminals facilitate reliable wiring connections. Designed for 12.4 mm panel cutout with bushing mount installation.

Wide operational temperature range from -65°C to 71°C. Compact size and positive tactile actuator feedback. Meets CSA, CE, UL industrial safety standards.
