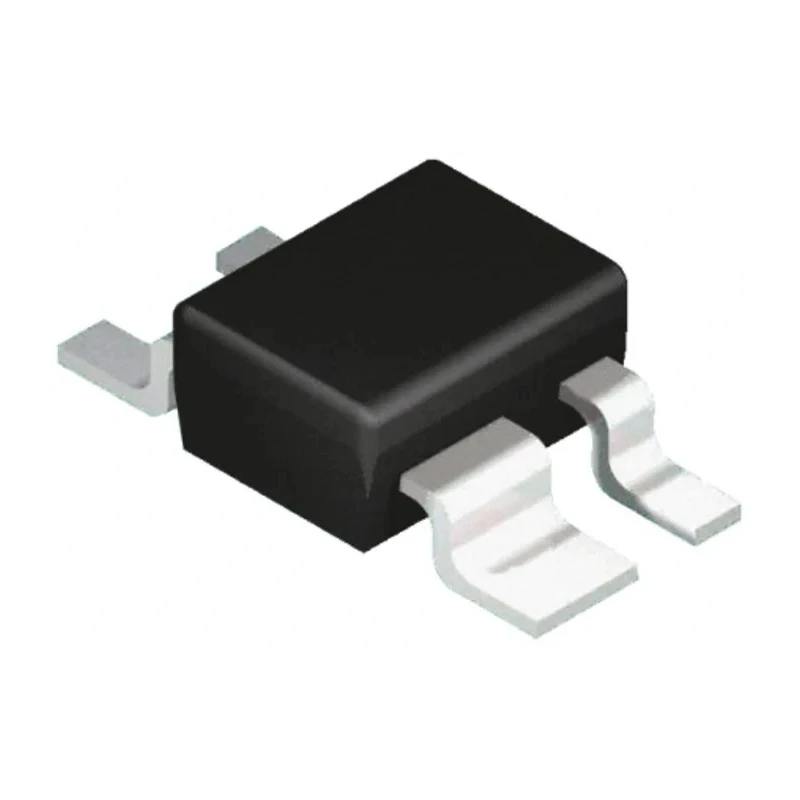

Infineon RF Amplifier Broadband 19.8 dB, 4-Pin Surface Mount 2 GHz SOT-343 BGA614H6327XTSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 0.8mm |
| Length | 2mm |
| Model | BGA614H6327XTSA1 |
| Technology | SiGe |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-343 |
| Minimum Operating Temperature | -65°C |
| Gain | 19.8dB |
| Pin Count | 4 |
| Maximum Supply Voltage | 3V |
| Amplifier Type | Broadband |
| Noise Figure | 2.1dB |
| Third Order Intercept OIP3 | 25dBm |
| P1dB - Compression Point | 12dBm |
Key Features
- High gain broadband RF amplifier with 19.8 dB amplification.
- Compact 4-pin SOT-343 surface-mounted package design.
- Operates over a wide temperature range from -65°C to 150°C.
- Features low noise figure of 2.1 dB for improved signal clarity.
- Maximum supply voltage of 3 V suitable for efficient power usage.
- Third Order Intercept (OIP3) rated at 25 dBm for high linearity.
- 1 dB compression point at 12 dBm ensuring stable performance.
- Small form factor with length of 2 mm and height of 0.8 mm for space-saving applications.
Product Description
Infineon BGA614H6327XTSA1 is a broadband RF amplifier designed for use in a variety of high-frequency applications operating at 2 GHz. This 4-pin device is housed in a compact SOT-343 surface mount package, making it ideal for dense circuit board layouts.
This amplifier provides a high gain of 19.8 dB while maintaining a low noise figure of 2.1 dB, enhancing signal quality in wireless and communication devices. It supports a maximum supply voltage of 3 V, balancing power consumption with performance.
Engineered from SiGe technology, the device features a robust operating temperature range from -65°C to 150°C, allowing use in challenging environments including automotive and industrial sectors. Its linearity is signified by a Third Order Intercept point (OIP3) of 25 dBm and a 1 dB compression point at 12 dBm, ensuring minimal distortion under high signal conditions.
The compact dimensions of 2 mm length and 0.8 mm height facilitate integration into systems where board space is limited.
This RF amplifier is suited for applications in mobile devices, GPS, PCS, and broadband communications requiring efficient low noise amplification. Its surface mount technology helps improve assembly efficiency in manufacturing.
High gain broadband RF amplifier with 19.8 dB amplification. Compact 4-pin SOT-343 surface-mounted package design. Operates over a wide temperature range from -65°C to 150°C. Features low noise figure of 2.1 dB for improved signal clarity.
Maximum supply voltage of 3 V suitable for efficient power usage. Third Order Intercept (OIP3) rated at 25 dBm for high linearity. 1 dB compression point at 12 dBm ensuring stable performance. Small form factor with length of 2 mm and height of 0.8 mm for space-saving applications.
This product fits into the Electronics & Electricals category focusing on Semiconductor RF Amplifiers and is ideal for industrial, telecommunications, and consumer electronics manufacturing and repair applications. Browse more semiconductor RF amplifiers at EnvMart for compatible parts and accessories.
Explore more products in our RF Amplifiers ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a high gain of 19.8 dB, enhancing signal quality in various applications.
The maximum supply voltage for this unit is 3 V, which supports efficient power usage.
It features a low noise figure of 2.1 dB, which improves signal clarity in communication systems.
This amplifier operates over a wide temperature range from -65°C to 150°C, making it suitable for challenging environments.
The Third Order Intercept point (OIP3) is rated at 25 dBm, indicating high linearity under signal conditions.
The dimensions of the SOT-343 package are 2 mm in length and 0.8 mm in height, allowing for space-saving applications.
This unit has a 4-pin configuration, suitable for surface mounting.
It is engineered from SiGe technology, which contributes to its performance characteristics.
The 1 dB compression point is at 12 dBm, ensuring stable performance under high signal conditions.
This model uses a surface mount type, which enhances assembly efficiency in manufacturing.
It is suited for applications in mobile devices, GPS, PCS, and broadband communications that require low noise amplification.
The country of origin for this product is India.
