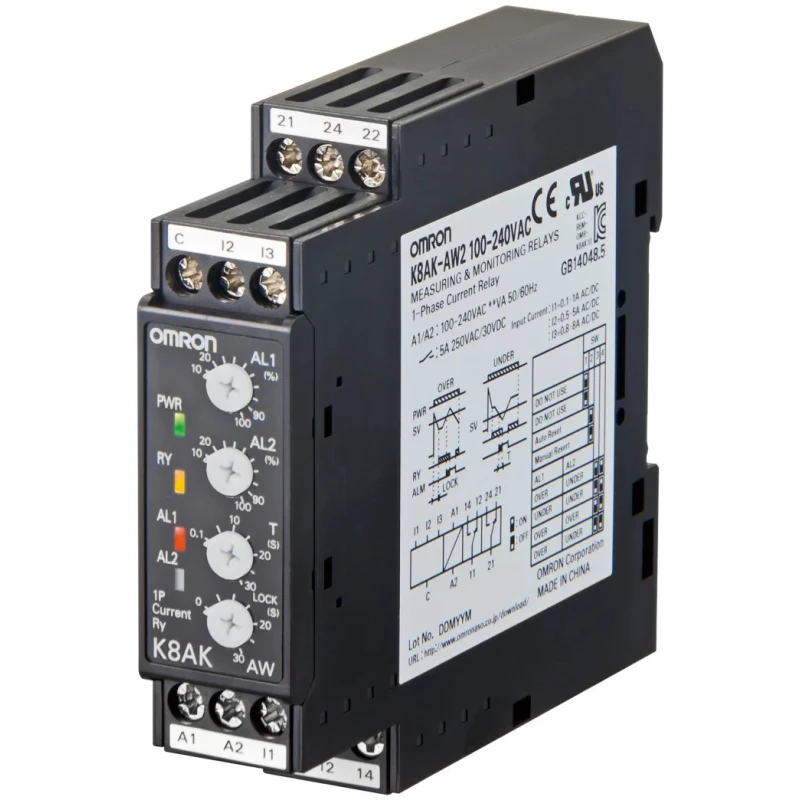

Omron Monitoring Relay, 1 Phase, SPDT Contact, DIN Rail Mount, 0.1A to 5A, 24 V DC, 240 V AC K8AK-AW2 24VAC/DC

Omron K8AK-AW2 24VAC/DC Monitoring Relay is a high-precision device designed for single-phase electrical load supervision. It provides reliable overcurrent and undercurrent detection with adjustable timing, suitable for industrial and automation control panels.

This relay features a Single-Pole Double-Throw (SPDT) contact configuration and is mounted on standard DIN rails for convenient installation in electrical panels and control cabinets. It uses screw terminals for secure wiring compatible with industrial wiring standards.

The relay accurately senses current ranges from 0.1A to 5A and offers an adjustable time delay from 0.1 to 30 seconds, ensuring protection from transient conditions and false trips. It supports a control voltage supply of 24 V DC and can also handle auxiliary circuit voltages up to 240 V AC.

Designed with a rated switching voltage of 250 V AC and a contact current of 5A, the relay is suitable for switching control circuits, alarms, or breakers within industrial machinery and process control systems. Its low power consumption of 4.6 VA minimizes auxiliary load on the power supply.

The IP20 degree of protection safeguards internal components against dust ingress while allowing safe operation in standard industrial environments. The relay meets key industry standards including EN 60947-5-1, UL 508, and RoHS compliance, ensuring interoperability and safety for diverse industrial applications.

Detects currents from 0.1A to 5A for accurate load supervision. Adjustable response time ranges from 0.1 to 30 seconds to prevent nuisance trips. Single-Pole Double-Throw (SPDT) contact configuration for flexible control.

DIN rail mount with screw terminals for secure industrial wiring. Supports 24 V DC and 240 V AC supply voltages for varied applications. Rated contact switching current of 5A at 250 V AC. Low power consumption of 4.6 VA reduces auxiliary circuit load.

IP20 enclosure rating for protection against dust ingress. Complies with EN 60947-5-1, UL 508, and RoHS standards for safety and quality.

This Omron K8AK-AW2 relay is ideal for motor protection, pump current monitoring, conveyor system load detection, and preventive maintenance alerting in industrial control systems. It provides reliable current monitoring to enhance system uptime and safety in manufacturing, automation, and electrical distribution panel applications.
