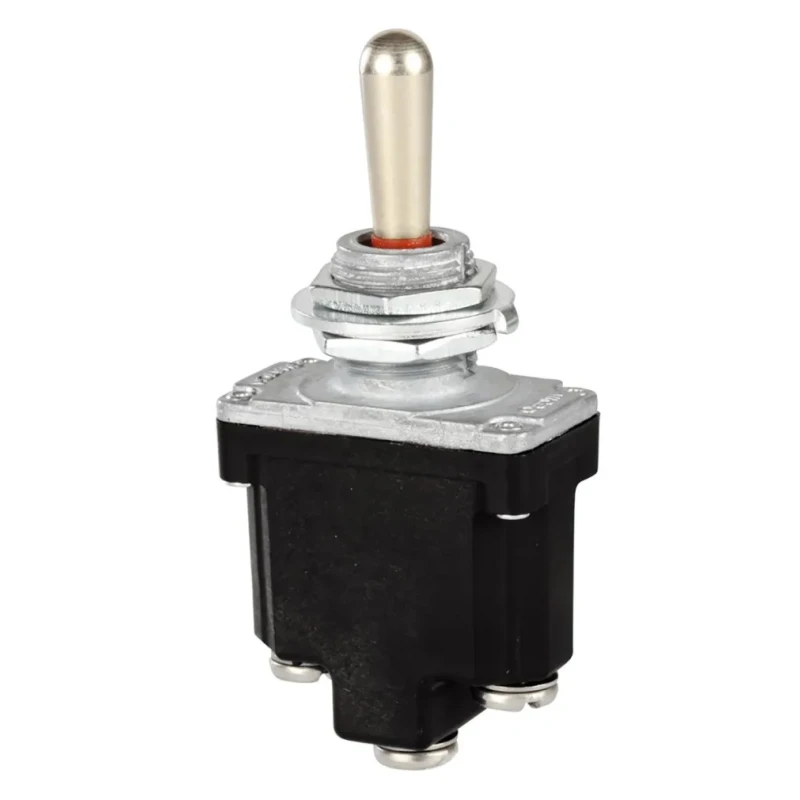

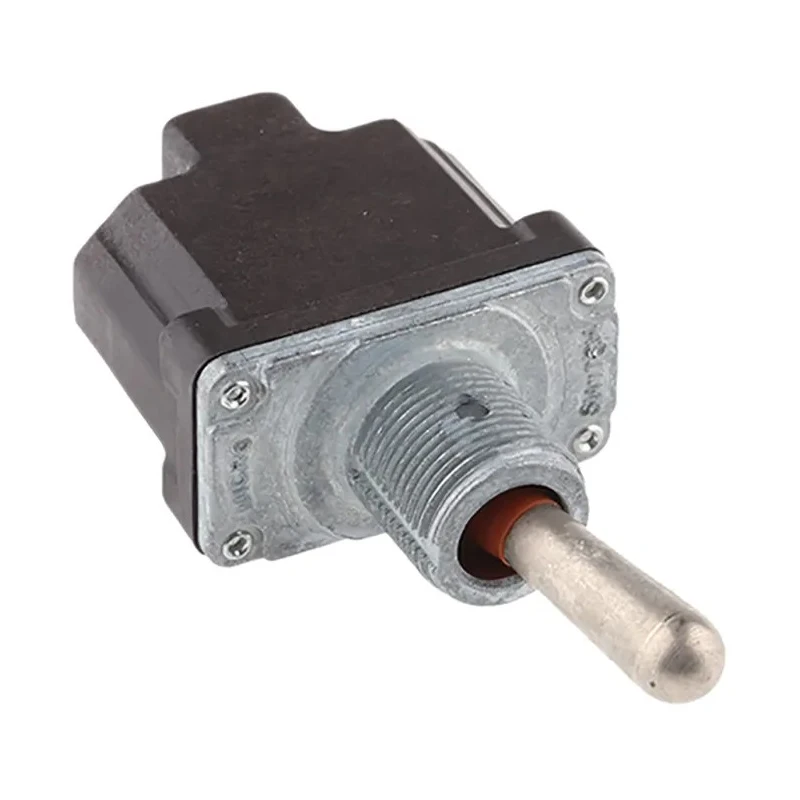

Honeywell Technologies Toggle Switch Panel Mount SPDT On-Off-On 277V AC 6A 1NT1-1
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Honeywell Technologies |
| Height | 26.7mm |
| Length | 22mm |
| Model | 1NT1-1 |
| IP Rating | IP68, IP67 |
| Width | 33.5mm |
| Mount Type | Panel Mount |
| Series | NT |
| Maximum Operating Temperature | 71°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 12.4 mm |
| Terminal type | Screw |
| Standards/Approvals | CE, UL, CSA |
| Switch Operation | On-Off-On |
| Actuator Length | 17mm |
| Switch Contact Current | 6A |
| Contact AC Voltage | 277V ac |
| Actuator Material | Gold Plated Silver |
Key Features
- The switch offers a three-position manual selector with a single-pole double-throw contact configuration.
- It is designed for panel mounting with a 12.4 mm cutout size and screw terminal connections.
- The actuator is gold-plated silver, providing low contact resistance and long durability.
- This product is IP68 and IP67 rated for sealed operation in harsh environments.
- It operates reliably from -40°C up to 71°C ambient temperature.
- The switch dimensions are 33.5mm width, 26.7mm height, 22mm length with a 17mm actuator length.
- Approved to CE, UL, and CSA standards for industrial and marine use.
- Ideal for electrical control panels, marine vessel switchboards, automation systems, and instrumentation panels exposed to moisture or splash.
Product Description
Honeywell Technologies 1NT1-1 Toggle Switch is a robust panel mount toggle switch with a single-pole double-throw (SPDT) contact configuration offering On-Off-On operation suitable for various electrical control applications requiring reliable manual selection.
Designed to handle a 6A contact current at up to 277V AC, this switch features secure screw terminals for wiring and a gold-plated silver actuator material that reduces contact resistance and enhances durability.
Its compact design measures 33.5mm in width, 26.7mm in height, and 22mm in length, with a 17mm actuator length and requires a 12.4 mm panel cutout for installation.
Engineered for demanding environments, the switch carries an ingress protection rating of IP68 and IP67, ensuring reliable operation under moisture and dust exposure. It operates within a wide temperature range of -40°C to 71°C.
This toggle switch is certified with CE, UL, and CSA approvals, confirming its compliance with international safety and performance standards.
Typical applications include control panels in marine vessels, industrial electrical cabinets, automation systems requiring manual changeover, and instrumentation panels exposed to moisture or splash conditions.
The switch features a three-position On-Off-On operation with a SPDT contact layout for versatile electrical routing. Screw terminal connections provide secure and vibration-resistant wiring. IP68 and IP67 ratings allow sealed operation in harsh industrial and marine environments.
Gold-plated silver actuator contacts lower contact resistance for improved reliability. Wide operating temperature range from -40°C to +71°C ensures suitability for diverse ambient conditions. Panel mount design fits a 12.4 mm cutout for easy and secure installation.
Compliance with CE, UL, and CSA standards guarantees recognized quality and safety.
This toggle switch fits detailed industrial, electrical, automation, marine, and commercial panel mounting requirements. Explore Honeywell Technologies and related Toggle Switches on EnvMart for additional options, specifications, and compatible components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 71°C.
It features a single-pole double-throw (SPDT) contact configuration.
This unit measures 33.5mm in width, 26.7mm in height, and 22mm in length.
The switch requires a panel cutout size of 12.4 mm for installation.
The switch can handle a contact current of 6A.
It features screw terminal connections for secure wiring.
The actuator is made of gold-plated silver, which reduces contact resistance.
The minimum operating temperature is -40°C.
It is approved to CE, UL, and CSA standards for industrial and marine use.
Typical applications include electrical control panels, marine vessel switchboards, and automation systems exposed to moisture.
The switch operates in a three-position On-Off-On configuration.
