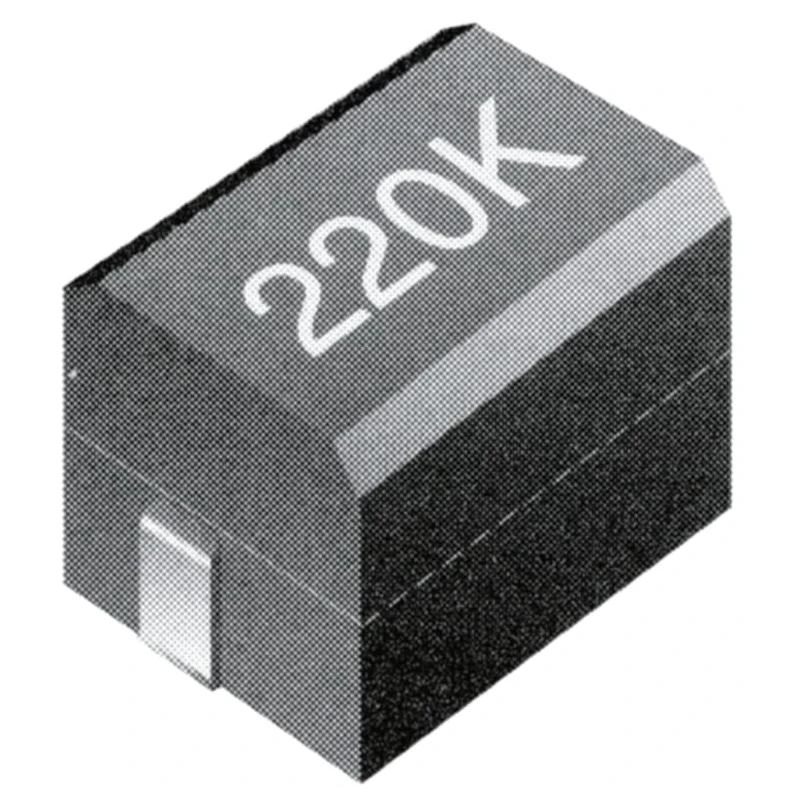

TE Connectivity 1812 Shielded Wirewound Surface Mount Inductor with Ferrite Core 220μH ±10% 100mA Idc Q:40 3613C221K
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TE Connectivity |
| Height | 3.2mm |
| Length | 4.5mm |
| Model | 3613C221K |
| Depth | 3.2mm |
| Series | 3613C |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -30°C |
| Core Material | Ferrite |
| Inductance | 220μH |
| Standards/Approvals | RoHS |
| Package/Case | 1812 |
| Maximum DC Current | 100mA |
| Pin Count | 2 |
| Maximum DC Resistance | 10Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 4MHz |
| Minimum Quality Factor | 40 |
| Inductor Construction | Wirewound |
Key Features
- This surface mount inductor features a ferrite core construction.
- It operates within a temperature range of -30°C to 100°C.
- The inductance has a quality factor (Q) of 40 with a maximum self-resonant frequency of 4MHz.
- Its compact 1812 package measures 4.5mm in length, 3.2mm in height, and 3.2mm in depth.
- The termination style is surface mount suitable for automatic mounting applications.
- It is shielded to reduce electromagnetic interference.
- This inductor offers a maximum DC resistance of 10Ω and has a pin count of 2.
- The product complies with RoHS standards and is moulded for durability.
Product Description
TE Connectivity 3613C221K is a shielded wirewound surface mount inductor housed in a compact 1812 package with dimensions of 4.5mm length, 3.2mm height and 3.2mm depth. Featuring a ferrite core, this inductor provides an inductance value of 220μH with ±10% tolerance, designed for use in electronic circuits requiring stable inductance performance.
It supports a maximum DC current of 100mA and operates effectively within a temperature range from -30°C to 100°C. The shielded design minimizes electromagnetic interference, enhancing performance in sensitive applications. The inductor has a quality factor (Q) of 40 and a maximum self-resonant frequency of 4MHz, suitable for high-frequency switching power supplies and filtering applications.
The device has a maximum DC resistance of 10Ω with two pins designed for surface mount technology, making it ideal for automated assembly processes. Its wirewound construction is moulded to improve mechanical strength and durability.
This component complies with RoHS directives, ensuring environmental safety and compatibility. It is manufactured in Taiwan, Province Of China, assuring high production standards.
Typical industrial applications include electronics manufacturing, power management circuits, signal filtering, and telecom equipment. It is suited for both prototyping and mass production environments where quality and reliability are critical.
This surface mount inductor features a ferrite core construction. It operates within a temperature range of -30°C to 100°C. The inductance has a quality factor (Q) of 40 with a maximum self-resonant frequency of 4MHz. Its compact 1812 package measures 4.5mm in length, 3.2mm in height, and 3.2mm in depth.
The termination style is surface mount suitable for automatic mounting applications. It is shielded to reduce electromagnetic interference. This inductor offers a maximum DC resistance of 10Ω and has a pin count of 2. The product complies with RoHS standards and is moulded for durability.
It is manufactured in Taiwan, Province Of China. Explore a comprehensive selection of Surface Mount Inductors and related components on EnvMart to support your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 220μH with a tolerance of ±10%.
The dimensions of the 1812 package are 4.5mm in length, 3.2mm in height, and 3.2mm in depth.
This model can handle a maximum DC current of 100mA.
The maximum operating temperature for this inductor is 100°C.
The minimum operating temperature for this inductor is -30°C.
The maximum self-resonant frequency is 4MHz.
The inductor has a quality factor (Q) of 40.
This inductor features a surface mount termination style, suitable for automatic mounting applications.
The core material of this inductor is ferrite.
This unit has a pin count of 2.
This inductor complies with RoHS standards, ensuring environmental safety and compatibility.
This inductor is manufactured in Taiwan, Province Of China.
