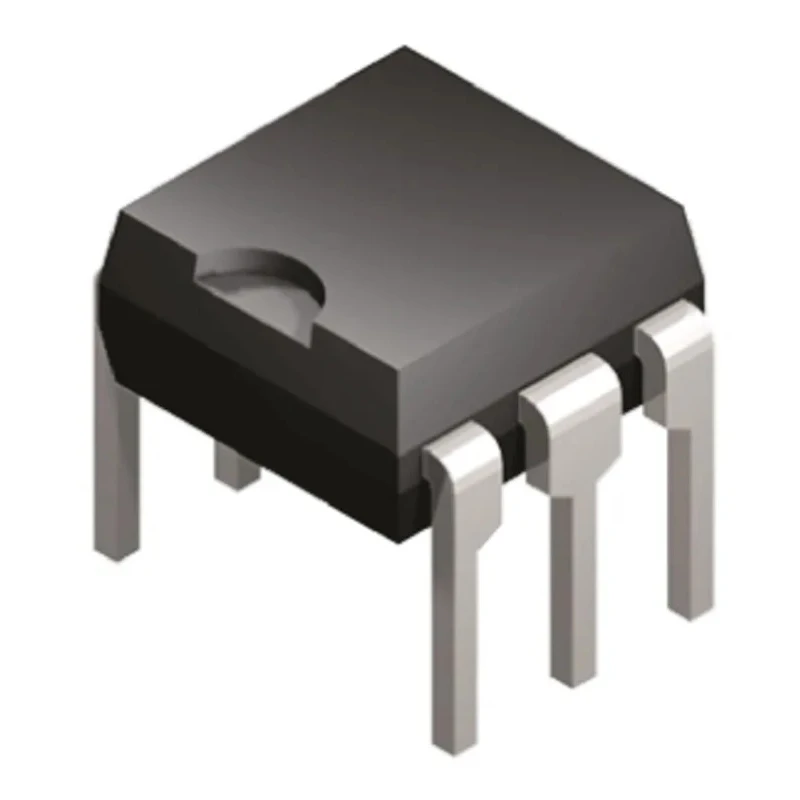

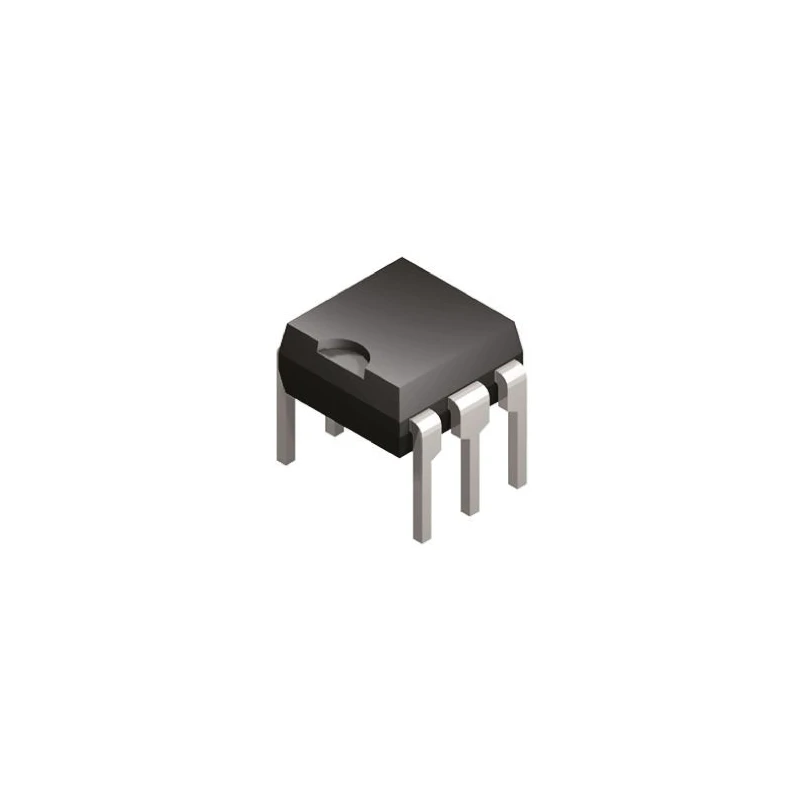

onsemi DC Input Optocoupler Through Hole 6-Pin MDIP H11AG1M
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | H11AG1M |
| Packaging | Tube |
| Mount Type | Through Hole |
| Output type | Phototransistor |
| Series | H11AG |
| Maximum Operating Temperature | 100°C |
| Package Type | MDIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 50mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL, IEC, EN |
| Maximum Forward Voltage | 1.5V |
| Number of Pins | 6 |
| Input Current Type | DC |
| Typical Rise Time | 5μs |
| Maximum Current Transfer Ratio | 3% |
| Minimum Current Transfer Ratio | 300% |
| Isolation Voltage | 7500V ac |
Key Features
- Mount type is through hole, enabling easy integration on printed circuit boards.
- Phototransistor output ensures accurate signal transmission for switching and isolation.
- Maximum forward voltage is 1.5V, compatible with low voltage inputs.
- Typical rise and fall times are both 5 microseconds, supporting fast response applications.
- Operating temperature ranges from -40°C to 100°C, suitable for diverse environments.
- Complies with UL, IEC, EN standards ensuring quality and reliability.
- Packaging is tube format which facilitates batch processing and handling.
- Single channel device with 6 pins, model H11AG1M, from the H11AG series.
Product Description
The onsemi H11AG1M is a highly reliable DC input optocoupler featuring a phototransistor output and housed in a 6-pin MDIP package designed for through hole mounting. It provides excellent electrical isolation with an isolation voltage rating of 7500V ac, making it suitable for various industrial and electronic applications requiring signal isolation to protect microcontrollers and sensitive equipment.
This optocoupler supports a maximum input current of 50mA and a maximum forward voltage of 1.5V, ensuring compatibility with low voltage circuits while maintaining efficiency. The device exhibits rapid switching performance with typical rise and fall times of 5 microseconds each, which benefits fast signal processing applications.
Designed to operate reliably across a temperature range from -40°C to 100°C, the H11AG1M caters to demanding environments typical in industrial automation, power management, and instrumentation systems. Conformance to UL, IEC, and EN standards underlines the product’s adherence to strict quality and safety requirements.
The packaging in a tube format allows for seamless handling and mounting in manufacturing processes. It is part of the H11AG series, known for robust isolation performance and phototransistor output. This single-channel device with 6 pins fits varied circuit designs requiring optoelectric signal coupling and isolation.
Through hole mount type promotes easy PCB integration. Phototransistor output offers precise signal conversion and switching. High isolation voltage of 7500V ac ensures robust protection. Fast switching with typical 5µs rise and fall times optimizes response.
Wide temperature range from -40°C to 100°C supports versatile applications. UL, IEC, and EN certifications ensure dependable quality. Model H11AG1M belongs to the durable H11AG series. Tube packaging format facilitates streamlined assembly.
Ideal for electronics manufacturing, industrial automation, signal isolation, and power management systems, the onsemi H11AG1M optocoupler provides a reliable solution for enhancing electronic circuit safety and performance.
Explore more Optocouplers and electronic components in the Electronics & Electricals category on EnvMart for professional industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The H11AG1M has a maximum isolation voltage of 7500V ac, ensuring robust protection for sensitive equipment.
This model operates reliably within a temperature range of -40°C to 100°C, making it suitable for various environments.
The H11AG1M features a phototransistor output, which ensures accurate signal transmission for switching and isolation applications.
This optocoupler is a single-channel device with 6 pins, designed for through hole mounting.
The maximum forward voltage for the H11AG1M is 1.5V, allowing compatibility with low voltage inputs.
This unit has typical rise and fall times of 5 microseconds each, supporting fast response applications.
The H11AG1M complies with UL, IEC, and EN standards, ensuring quality and reliability in its performance.
The maximum input current for this optocoupler is 50mA, which supports efficient operation in low voltage circuits.
The H11AG1M is packaged in a tube format, which facilitates batch processing and handling during assembly.
This model features a through hole mount type, enabling easy integration on printed circuit boards.
The H11AG1M is part of the H11AG series, known for its robust isolation performance and phototransistor output.
This optocoupler is suitable for various applications, including industrial automation, signal isolation, and power management systems.
