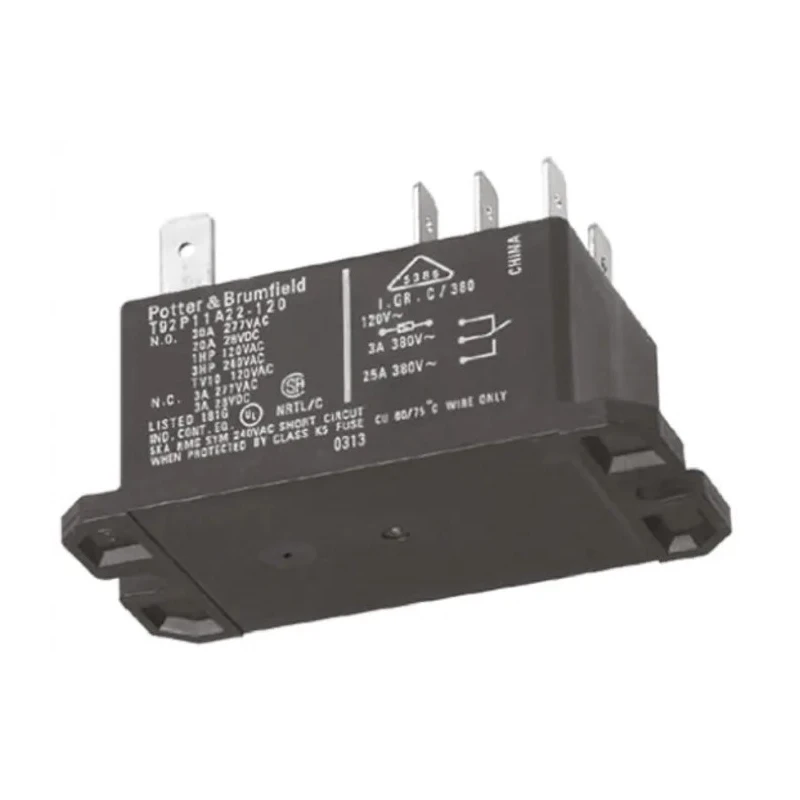

TE Connectivity Panel Power Relay, 110V AC, 120V AC Coil, 30A Switching Current, DPDT, Quick T92P11A22-120 4-1393211-0

TE Connectivity T92P11A22-120 4-1393211-0 Panel Power Relay is a robust and reliable power relay designed for industrial, electrical automation, and control applications. It features a coil voltage rating suitable for 110V AC and 120V AC operations, providing efficient switching capability with a 30A maximum switching current.

The relay incorporates a Double Pole Double Throw (DPDT) contact configuration, enabling flexible control in various electrical circuits. Mount designed for panel installation, it includes quick connect terminals facilitating straightforward wiring and replacement.

Constructed with silver alloy contacts, it guarantees excellent conductivity and durability under demanding operating conditions. The relay's compact dimensions - 52.3mm length, 34.5mm width, and 30.7mm height - make it suitable for space-constrained panel setups.

It supports switching AC voltages up to 600V with a switching power of 4VA, suitable for diverse industrial equipment applications. Its operational temperature range spans from -45°C minimum to 85°C maximum, ensuring performance stability even in harsh environments.

Certified to meet CSA, UL, and UR standards, this relay conforms to UL 873 and UL 508 spacing requirements, and VDE dielectric spacing and voltage standards, ensuring safety and reliability.

Its design supports controlling compressor loads up to 3.5 tons, handling 25.3 Full Load Amperes (FLA) with 110 Locked Rotor Amperes (LRAM), making it ideal for HVAC systems, machinery control panels, and other heavy-duty applications.

The TE Connectivity power relay series T92 delivers proven quality, meeting strict industrial and manufacturing standards for power relays and contactors. It is used extensively in electrical panels, control systems, and automation solutions where reliable switching of high currents is essential.

Features a Double Pole Double Throw (DPDT) contact configuration for versatile circuit control. Designed for panel mounting with quick connect terminals for easy installation. Operates reliably within a temperature range from -45°C to 85°C.

Constructed with silver alloy contacts for excellent conductivity and durability. Compact dimensions of 52.3mm length, 34.5mm width, and 30.7mm height. Suitable for switching AC voltages up to 600V and switching power of 4VA.

Meets CSA, UL, and UR standards ensuring industrial safety and performance compliance. Meets requirements of UL 873, UL 508 spacing, and VDE dielectric standards for secure and safe operation. Engineered to control compressor loads up to 3.5 tons with 25.3 FLA and 110 LRAM.

This power relay is a dependable component for electrical automation, industrial manufacturing, HVAC, and commercial applications where robust coil switching and high current handling are required. Explore more Power Relays by TE Connectivity at EnvMart to enhance your electrical control projects.
