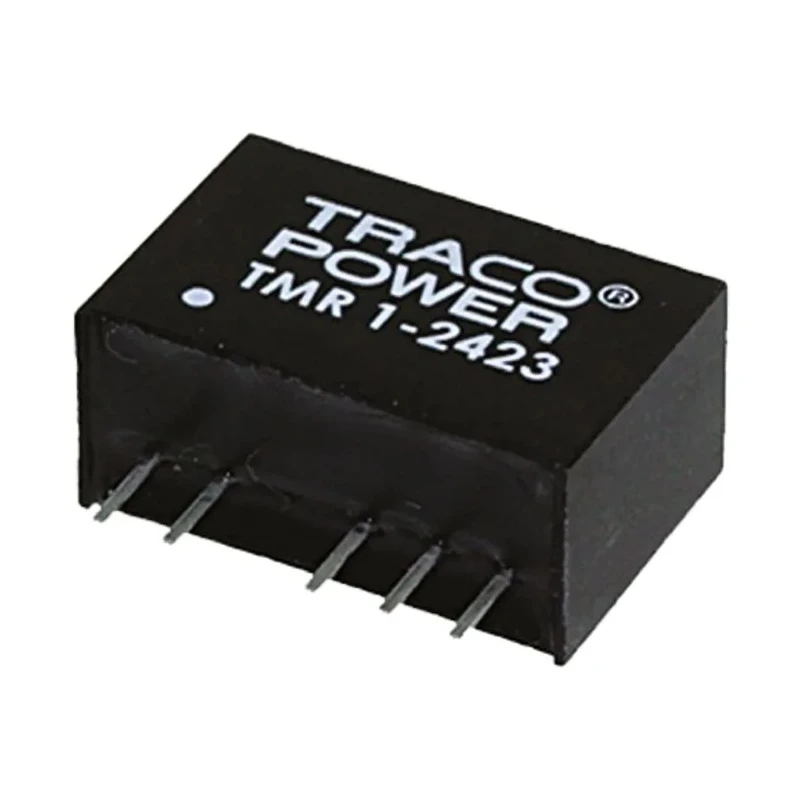

TRACOPOWER 1W Fully Regulated Isolated DC/DC Converter Through Hole SIP Package 15V DC Output, 33mA 36V DC Input TMR 1-2423

TRACOPOWER TMR 1-2423 is a premium 1W DC/DC converter designed for efficient and reliable power conversion. This device features a fully regulated isolated output delivering 15V DC at 33mA current, supporting a wide input voltage range from 18V up to 36V DC. Packaged in a Through Hole SIP form factor, it ensures straightforward assembly on printed circuit boards and integration in industrial and electronic environments.

This converter series provides robust isolation with a voltage withstand rating of 1.5kV DC, offering safety in sensitive power supply applications. Its operational efficiency of 78% contributes to low power losses and heat generation, suitable for compact and densely populated electronic applications.

The TMR 1-2423 operates reliably within a wide temperature range from -40°C to 95°C, making it suitable for use in both indoor and outdoor industrial settings. The design includes built-in short circuit protection and does not require minimum load conditions, facilitating flexible deployment in diverse electronic circuits.

Typical use cases include power supply stabilization in industrial controls, instrumentation, measurement devices, and embedded systems requiring secure, isolated voltage conversion. The SIP package with 5 pins supports a secure mechanical connection and efficient heat dissipation.

The converter features a wide 2:1 input voltage range ensuring operational flexibility. It provides fully regulated dual outputs with isolation voltage up to 1.5kV DC. Designed with short circuit protection for enhanced reliability.

Operates efficiently at 78% with an MTBF of 2,800,000 hours. Suitable for operating temperatures ranging from -40°C to 95°C for harsh environments. The compact design with dimensions of 17mm length and 7.62mm depth facilitates easy PCB integration.

The 5-pin Through Hole SIP package is ideal for insertion into machinery and electronic applications requiring stable voltage conversion. No minimum load is required, ensuring consistent performance under varied currents.

Applications include industrial electronics, power management systems, and embedded electronics requiring isolated power supplies.

This TRACOPOWER DC/DC Converter is manufactured in Taiwan, Province Of China, and undergoes stringent quality control for dependable performance. It is a new product suitable for engineers and designers focused on creating reliable power solutions. Explore additional high-performance power conversion components in this category on EnvMart.
