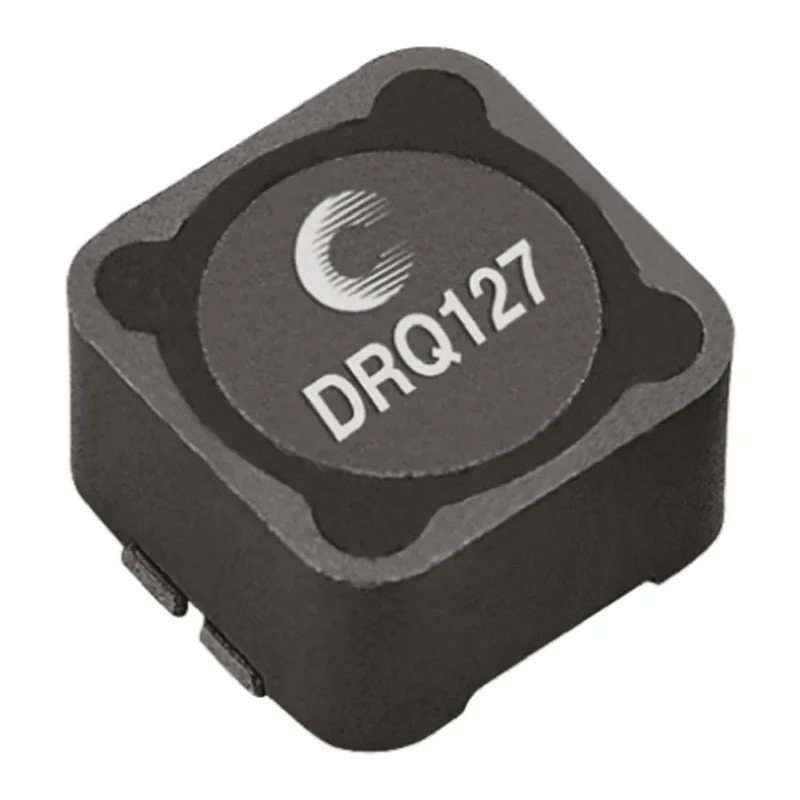

Eaton Shielded Surface Mount Inductor with Ferrite Core 47 μH ±20 %, 5.28 A Idc, 0127 Package DRQ127-470-R
Specifications
| Country of Origin | China |
|---|---|
| Brand | Eaton |
| Height | 8mm |
| Length | 12.5mm |
| Model | DRQ127-470-R |
| Depth | 12.5mm |
| Packaging | Reel |
| Series | DRQ |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 47μH |
| Standards/Approvals | RoHS |
| Package/Case | 0127 |
| Maximum DC Current | 5.28A |
| Pin Count | 4 |
| Maximum DC Resistance | 288mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
Key Features
- Constructed with a ferrite core providing high performance and durability.
- Surface mount package type 0127 suitable for reel packaging.
- Maximum operating temperature of 125°C ensures reliability in high-temperature applications.
- Wirewound inductors with shielding to reduce electromagnetic interference.
- Provides maximum DC resistance of 288 mΩ for efficient operation.
- Pin count of 4 with surface mount termination style.
- Tolerant to minimum operating temperature of -40°C for broad application range.
- Applications include DC-DC converters, input/output filter chokes, VRM inductors for CPU and DDR power supplies, and SEPIC and flyback transformers.
Product Description
Eaton DRQ127-470-R shielded surface mount inductor with ferrite core is engineered for robust electronic circuits, offering 47 μH inductance with ±20 % tolerance and a maximum DC current rating of 5.28 A. The inductor's 0127 package case and reel packaging make it ideal for automated assembly in manufacturing environments.
Constructed with a wirewound coil and ferrite core, this inductor features shielding to minimize electromagnetic interference (EMI), enhancing circuit stability. It operates reliably within -40°C to 125°C temperature range, providing versatility in challenging environments. With a maximum DC resistance of 288 mΩ and four pins, this component ensures efficient electrical performance.
The DRQ series supports both single inductor and coupled inductor applications with a 1:1 turns ratio and can be connected in series or parallel to achieve desired electrical characteristics. Typical use cases include DC-DC converters, buck and boost coupled inductors, SEPIC and flyback transformers, and voltage regulator module inductors for CPUs and DDR power supplies.
Eaton's commitment to quality is underscored by compliance with RoHS directives, ensuring the product meets environmental and safety requirements. Constructed with ferrite core for superior magnetic performance and durability.
Surface mount package 0127 designed for reel packaging and automated production. Maximum operating temperature rating of 125°C supports harsh industrial conditions. Shielded construction to reduce electromagnetic interference in sensitive circuits.
Wirewound inductor construction enhances inductance accuracy and stability. Four-pin surface mount termination simplifies PCB layout and assembly. Inductance tolerance of ±20 % ensures design precision within specification.
Compliance with RoHS assures environmental safety and regulatory adherence.
This highly reliable surface mount inductor is well-suited for industrial, electronic component manufacturing, power supply, and automotive electronic applications. Discover more Surface Mount Inductors and electrical components on EnvMart to optimize your projects with quality Eaton products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 47 μH with a tolerance of ±20%.
The maximum DC current rating for this inductor is 5.28 A.
The dimensions of this unit are 12.5 mm in length, 12.5 mm in depth, and 8 mm in height.
It has a maximum operating temperature of 125°C, making it suitable for high-temperature applications.
The minimum operating temperature is -40°C, allowing for a broad application range.
This inductor is constructed with a ferrite core, which provides high performance and durability.
The maximum DC resistance is 288 mΩ, ensuring efficient operation.
It features a surface mount termination style with a pin count of 4, simplifying PCB layout and assembly.
It is suitable for applications including DC-DC converters, VRM inductors for CPUs, and SEPIC and flyback transformers.
The maximum self-resonant frequency is 100 kHz, which is important for circuit design considerations.
Yes, it complies with RoHS directives, ensuring it meets environmental and safety requirements.
It is packaged in a reel format, making it suitable for automated assembly in manufacturing environments.
