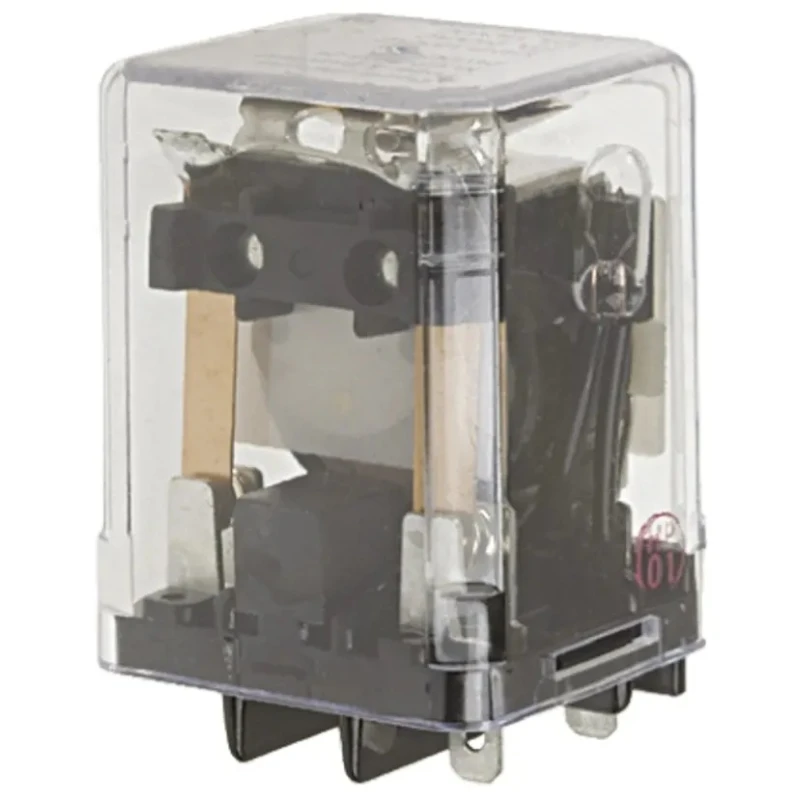

TE Connectivity Power Relay 24V dc Coil 10A Switching Current SPST KUEP-3D15-24 1393114-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -45°C → +70 °C |
| Height | 48.4mm |
| Length | 38.9mm |
| Model | KUEP-3D15-24 1393114-1 |
| Width | 35.7mm |
| Contact Material | Silver Alloy |
| Series | KUEP |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -45°C |
| Switching Current | 10A |
| Terminal type | Quick Connect |
| Standards/Approvals | RoHS, CE, CSA, ELV, IEC, REACH, UL, VDE |
| Coil Resistance | 472Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 12V dc |
| Switching AC Voltage | 12V ac |
| Coil Power | 1.25W |
Key Features
- The relay is built for operation between -45°C and +70°C ensuring durability in harsh conditions.
- It features quick connect terminals for efficient and secure connections during installation.
- Coil resistance is 472Ω with coil power consumption of 1.25W for energy-efficient performance.
- The contact material uses high-quality silver alloy providing excellent conductivity and longevity.
- Compact dimensions of 38.9mm length, 35.7mm width, and 48.4mm height make it suitable for space-constrained designs.
- Supports up to 12V dc and 12V ac switching voltage for versatile applications.
- Meets key international standards including RoHS, CE, CSA, ELV, IEC, REACH, UL, and VDE for safety and compliance.
- Commonly applied in vending machines, robotics, timers, welding equipment, power generators, and HVAC systems.
Product Description
TE Connectivity KUEP-3D15-24 1393114-1 Power Relay is a robust component designed for industrial and commercial electrical applications. Featuring a 24V dc coil and a 10A switching current, this SPST relay delivers reliable switching performance with a single pole single throw contact configuration. Its compact size of 38.9mm length, 35.7mm width, and 48.4mm height allows easy integration into control panels and electrical assemblies.
Constructed with silver alloy contacts and a magnetic blow-out system, the relay ensures reduced contact wear and superior conductivity. The coil resistance is precisely 472Ω, and the coil power requirement is low at 1.25W, optimizing energy use. Rated for operation from -45°C up to +70°C, this relay withstands extreme climatic conditions, making it suitable for environments ranging from cold storage to heated industrial spaces.
The quick connect terminal design facilitates fast and secure wiring, decreasing installation time and maintenance costs. It supports switching voltages up to 12V dc and 12V ac, offering versatility for various control and load switching needs.
This relay complies with multiple international standards, including RoHS, CE, CSA, ELV, IEC, REACH, UL, and VDE certifications, highlighting its quality and safety adherence. Typical applications include vending machines, automated robotics, timer-based systems, welding control, power generation equipment, and HVAC installations, underscoring its role in diverse industrial sectors.
The relay is built for operation between -45°C and +70°C ensuring durability in harsh conditions. It features quick connect terminals for efficient and secure connections during installation. Coil resistance is 472Ω with coil power consumption of 1.25W for energy-efficient performance.
The contact material uses high-quality silver alloy providing excellent conductivity and longevity. Compact dimensions of 38.9mm length, 35.7mm width, and 48.4mm height make it suitable for space-constrained designs. Supports up to 12V dc and 12V ac switching voltage for versatile applications.
Meets key international standards including RoHS, CE, CSA, ELV, IEC, REACH, UL, and VDE for safety and compliance. Commonly applied in vending machines, robotics, timers, welding equipment, power generators, and HVAC systems.
EnvMart offers comprehensive selections of industrial relays including Power Relays that meet demanding performance criteria. Browse our categories for additional TE Connectivity components optimized for industrial automation and electrical control systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 10A, making it suitable for various applications requiring reliable switching performance.
The relay operates with a coil voltage of 24V dc, which is necessary for its activation.
The dimensions of this unit are 38.9mm in length, 35.7mm in width, and 48.4mm in height, allowing for easy integration into compact spaces.
It can operate in temperatures ranging from -45°C to +70°C, making it suitable for harsh environmental conditions.
This relay features a single pole single throw (SPST) contact configuration, which is common for many switching applications.
The coil resistance is 472Ω, which contributes to its energy-efficient operation with a coil power consumption of 1.25W.
The contacts are made from high-quality silver alloy, providing excellent conductivity and longevity.
The quick connect terminals facilitate efficient and secure connections during installation, reducing setup time.
It meets several international standards including RoHS, CE, CSA, ELV, IEC, REACH, UL, and VDE, ensuring safety and compliance.
This model supports switching voltages up to 12V dc and 12V ac, making it versatile for various applications.
Common applications include vending machines, robotics, timers, welding equipment, power generators, and HVAC systems.
The country of origin for this relay is India, indicating its manufacturing location.
