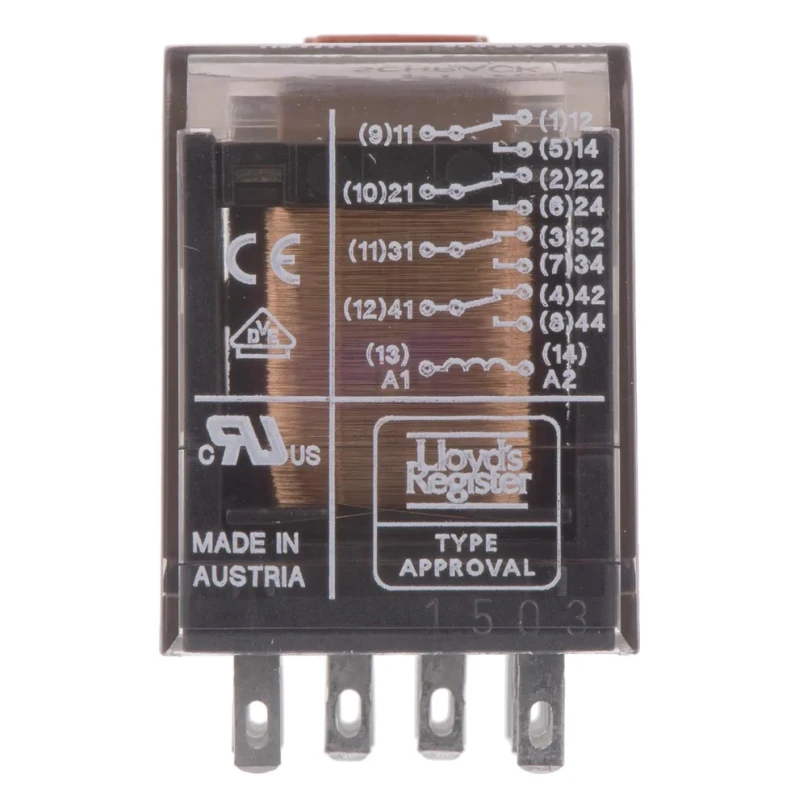

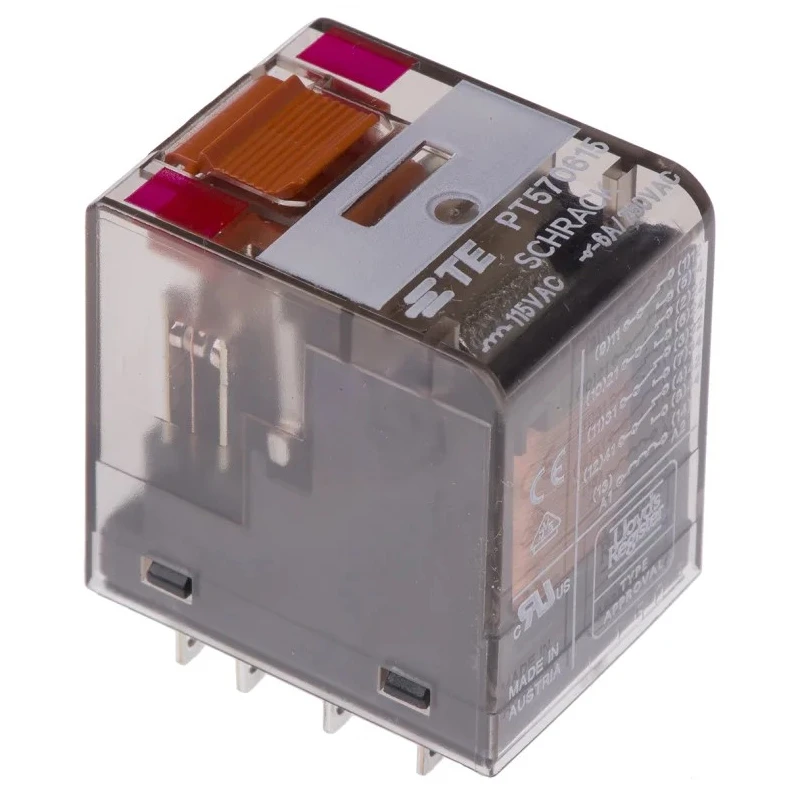

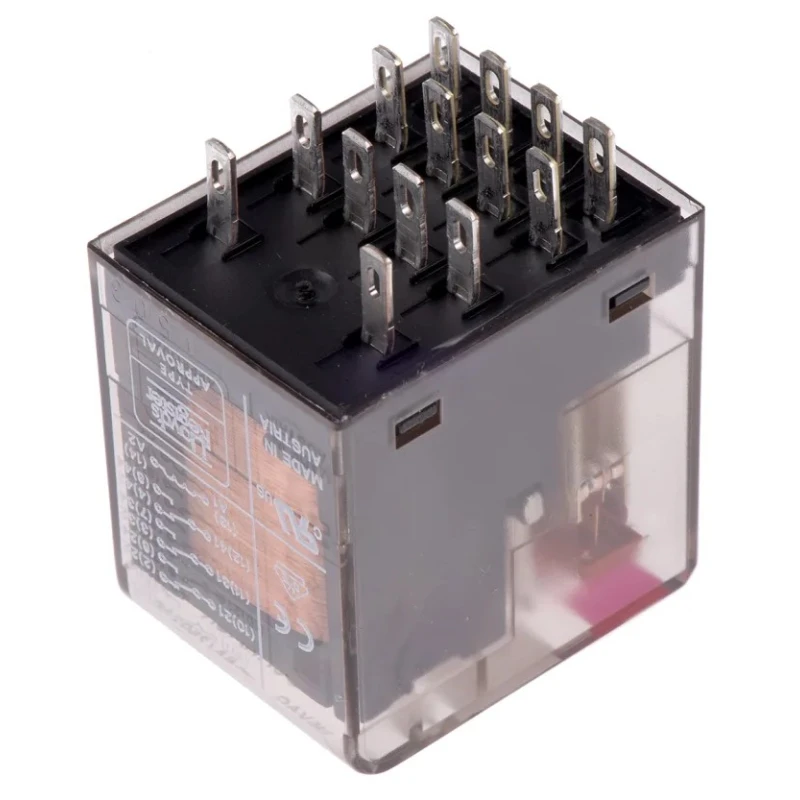

TE Connectivity PCB Power Relay, 115V AC Coil, 6A Switching Current, 4PDT PT570615 9-1419111-0

TE Connectivity PT570615 9-1419111-0 PCB Power Relay is a high-quality non-latching relay designed for PCB mounting, featuring a coil voltage of 115V AC and a switching current capacity of 6A with a 4PDT (four-pole double-throw) contact configuration. It is ideal for use in industrial control, automation, and signal conditioning circuits where reliable switching performance is required.

The relay features quick connect terminals for simple installation and silver nickel alloy contacts that provide robust switching with excellent durability and corrosion resistance. The coil resistance is measured at approximately 4.8 kilo-ohms, contributing to stable operation and power efficiency.

With an operating temperature range from -40°C to 70°C and compact dimensions of 35mm in height, 28mm in length, and 22.5mm in width, this relay is suited for applications needing reliable operation under harsh conditions as well as space-efficient PCB designs.

This relay also includes an LED and mechanical indicator manual/lockable test facility, enabling straightforward on-site verification of operation status. It meets strict industry standards and approvals including VDE, UL, RoHS, and IEC ensuring compliance with international safety and environmental requirements.

Actuated with 115V AC coil voltage ensuring compatibility with standard control circuits. 4PDT (four-pole double-throw) contact configuration for versatile switching. 6A switching current suitable for moderate power loads up to 1.5 kVA.

Constructed with silver nickel alloy contacts for durable and corrosion-resistant performance. Coil resistance of approximately 4.8 kΩ providing electrical efficiency. Designed for PCB mounting with quick connect terminal types for easy installation.

Operating temperature range from -40°C to 70°C for broad environmental tolerance. Dimensions: 35mm height, 28mm length, 22.5mm width allowing compact PCB layout. Includes LED and mechanical indicator manual/lockable test facility for status verification.

Complies with industry standards including VDE, UL, RoHS, and IEC for assured safety and quality.

This TE Connectivity product is widely utilized in electrical, automation, manufacturing, and control system applications. Browse our Electronics & Electricals > Relays & Contactors > Power Relays category for more high-quality relay products.
