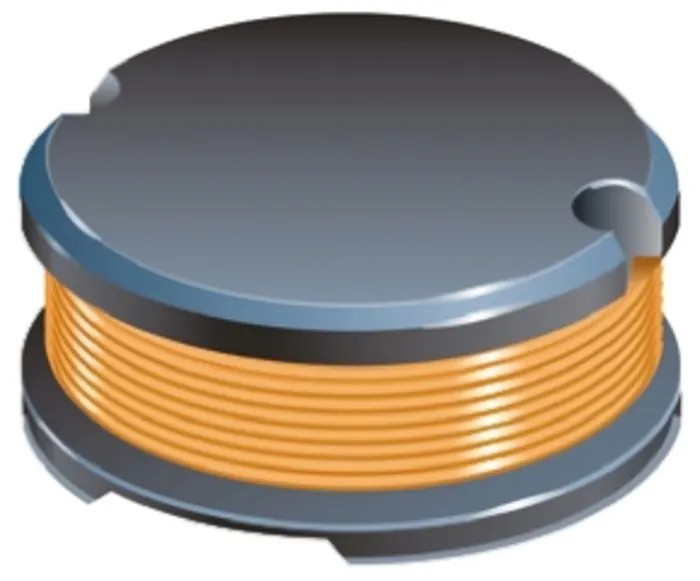

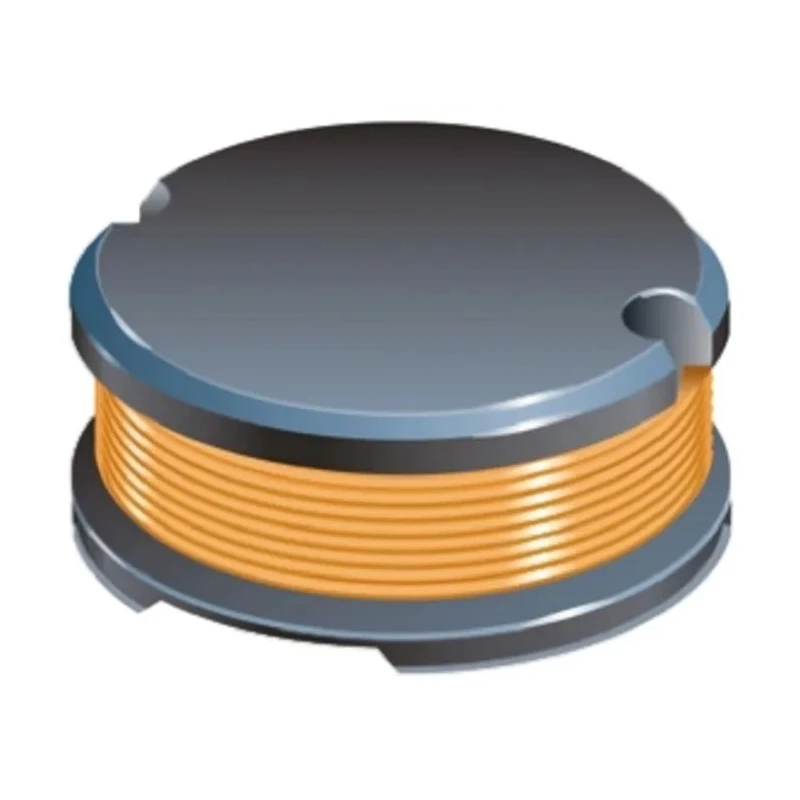

Bourns Wirewound Surface Mount Inductor 470 μH ±10% 300 mA DC Current Ferrite DR Core 0604 Package SDR0604
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.8mm |
| Brand | Bourns |
| Height | 4.8mm |
| Length | 5.8mm |
| Model | SDR0604 |
| Depth | 5.8mm |
| Packaging | Reel |
| Series | SDR0604 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite DR |
| Inductance | 470μH |
| Standards/Approvals | RoHS |
| Package/Case | 0604 |
| Maximum DC Current | 300mA |
| Maximum DC Resistance | 3.3Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 3MHz |
| Minimum Quality Factor | 25 |
| Inductor Construction | Wirewound |
Key Features
- This inductor features a ferrite DR core providing stable magnetic performance.
- It operates at a maximum DC current of 300 mA for reliable power handling.
- The compact 0604 package style measures 5.8mm in diameter and 4.8mm in height.
- The device has a maximum DC resistance of 3.3 ohms and operates within -40°C to 125°C temperature range.
- It reaches a maximum self-resonant frequency of 3 MHz and a quality factor (Q) of 25 minimum.
- Designed for surface mount applications in DC/DC converters and power supplies.
- The product is RoHS compliant and moulded for robust construction.
Product Description
Bourns SDR0604 Wirewound Surface Mount Inductor offers 470 μH inductance with ±10% tolerance and is constructed with a ferrite DR core to ensure efficient magnetic performance and stability.
This inductor supports a maximum DC current of 300 mA, making it suitable for various low-power electronic circuit designs including DC/DC converters and power supply applications in industrial electronics.
It is available in the compact 0604 package case with dimensions of 5.8 mm diameter, 5.8 mm depth, and 4.8 mm height, facilitating high-density PCB layouts in modern electronic assemblies.
With a maximum DC resistance of 3.3 ohms, the inductor maintains efficiency by reducing power loss. It is designed to operate reliably between -40°C and 125°C, ensuring durability under harsh environmental conditions.
The inductor achieves a minimum quality factor (Q) of 25 and maximum self-resonant frequency of 3 MHz, which supports efficient high-frequency applications. Constructed as a wirewound component and moulded for stability, this product complies with RoHS standards, ensuring environmentally safe manufacturing processes.
This surface mount inductor is ideal for use in industrial electronics, laboratory equipment, power supplies, telecommunications, and automotive systems where reliable inductance and compact form factor are critical.
This inductor features a ferrite DR core providing stable magnetic performance. It operates at a maximum DC current of 300 mA for reliable power handling. The compact 0604 package style measures 5.8mm in diameter and 4.8mm in height.
The device has a maximum DC resistance of 3.3 ohms and operates within -40°C to 125°C temperature range. It reaches a maximum self-resonant frequency of 3 MHz and a quality factor (Q) of 25 minimum. Designed for surface mount applications in DC/DC converters and power supplies.
The product is RoHS compliant and moulded for robust construction. Browse the Electronics & Electricals category at EnvMart for more Surface Mount Inductors and related components from leading brands such as Bourns.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 470 μH with a tolerance of ±10%.
The maximum DC current for this inductor is 300 mA, allowing it to handle reliable power in low-power applications.
The 0604 package measures 5.8 mm in diameter and 4.8 mm in height, making it suitable for high-density PCB layouts.
The maximum DC resistance for this unit is 3.3 ohms, which helps maintain efficiency by reducing power loss.
It operates reliably within a temperature range of -40°C to 125°C, ensuring functionality in various environmental conditions.
The inductor reaches a maximum self-resonant frequency of 3 MHz, supporting efficient high-frequency applications.
This model has a minimum quality factor (Q) of 25, indicating its efficiency in energy storage and transfer.
The inductor is constructed with a ferrite DR core, providing stable magnetic performance.
Yes, this inductor is RoHS compliant, ensuring it meets environmental safety standards for manufacturing.
It features a surface mount termination style, making it suitable for modern electronic assemblies.
This inductor is designed for use in DC/DC converters and power supplies, as well as in various industrial electronics applications.
The product is packaged on a reel, facilitating easy handling and placement during assembly.
