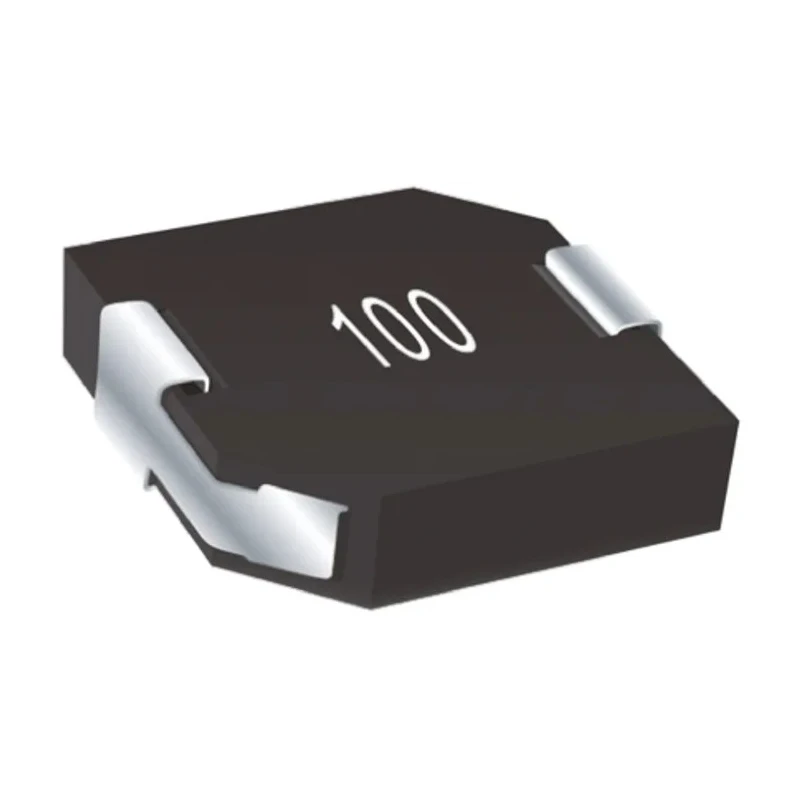

Bourns 1270 Shielded Surface Mount Inductor Iron Core 3.3 μH ±20% 35A Idc SRP1270
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 6.5mm |
| Length | 12.9mm |
| Model | SRP1270 |
| Depth | 12.9mm |
| Packaging | Reel |
| Series | SRP1270 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Iron |
| Inductance | 3.3μH |
| Standards/Approvals | RoHS |
| Package/Case | 1270 |
| Maximum DC Current | 35A |
| Maximum DC Resistance | 6.6mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 20MHz |
| Inductor Construction | Wirewound |
Key Features
- The package case is 1270 with a length of 12.9 mm and a height of 6.5 mm.
- It is a wirewound inductor with magnetic shielding and an iron core material.
- The inductor has a maximum DC resistance of 6.6 mΩ and a maximum self-resonant frequency of 20 MHz.
- Designed for surface mount technology with solder termination style.
- Operational temperature range from -55°C to 125°C ensures suitability for harsh environments.
- RoHS compliant and molded construction guarantees environmental safety and durability.
- Typically applied in power supplies and DC/DC converters for efficient power management.
- Shielded design reduces electromagnetic interference and magnetic emissions.
Product Description
Bourns SRP1270 shielded Surface Mount Inductor with an iron core delivers reliable inductance of 3.3 μH with a tolerance of ±20%, designed for high current handling with a maximum DC current rating of 35 amperes.
This wirewound inductor incorporates shielding to minimize electromagnetic interference and features a compact package size of 12.9 mm length, 6.5 mm height, and 12.9 mm depth.
Its low DC resistance of 6.6 milliohms and a maximum self-resonant frequency of 20 MHz support stable operation at high frequencies. The solder termination style facilitates easy PCB mounting in surface mount applications.
With operational temperatures ranging from -55°C to 125°C and molded construction, it suits industrial, automotive, and consumer electronics applications requiring robust inductors.
The inductor is RoHS compliant, adhering to environmental standards. The iron core enhances magnetic properties for improved performance. This component is ideal for input/output stages of DC/DC converters and power supply circuits.
Its shielded design reduces magnetic emissions and crosstalk between components on PCBs. The compact 1270 package ensures space efficiency for dense electronics designs. Choose the Bourns SRP1270 inductors for reliable performance in electronic assemblies needing high current and low loss inductors.
Explore a wide range of precision electronic components and inductors on EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bourns SRP1270 inductor has an inductance value of 3.3 μH with a tolerance of ±20%.
This model has a maximum DC current rating of 35 amperes.
The dimensions of the SRP1270 inductor are 12.9 mm in length, 6.5 mm in height, and 12.9 mm in depth.
The maximum DC resistance of this inductor is 6.6 mΩ.
The operational temperature range for the Bourns SRP1270 is from -55°C to 125°C.
The maximum self-resonant frequency of this inductor is 20 MHz.
The SRP1270 uses a solder termination style, which facilitates easy PCB mounting in surface mount applications.
Yes, the Bourns SRP1270 is RoHS compliant, adhering to environmental safety standards.
The core material used in the SRP1270 inductor is iron.
The Bourns SRP1270 inductor features a wirewound construction, which enhances its performance characteristics.
The SRP1270 is packaged in a reel format, suitable for automated assembly processes.
This inductor is typically applied in power supplies and DC/DC converters for efficient power management.
