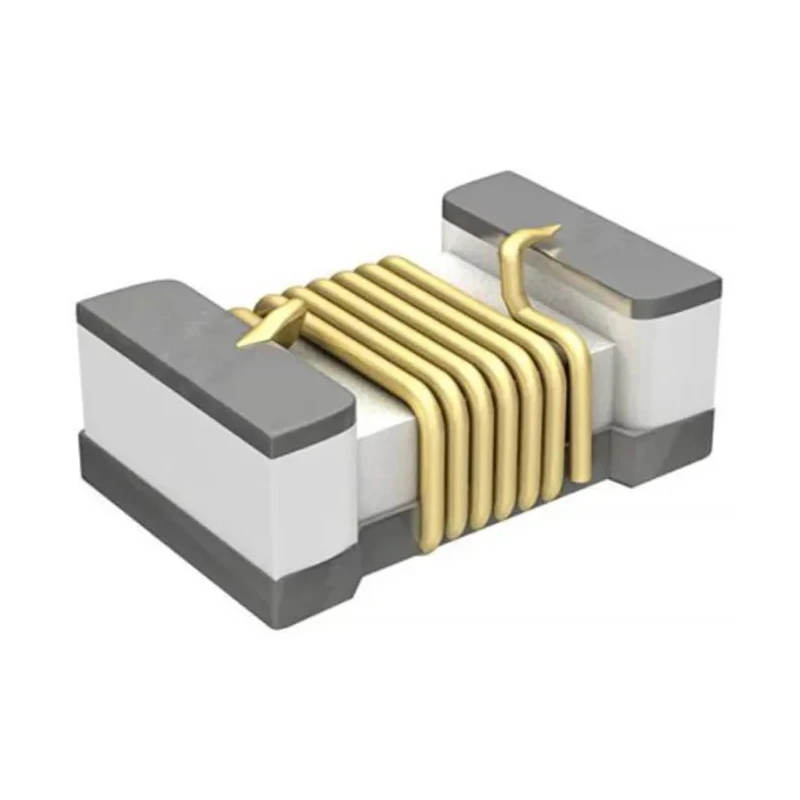

Murata Wirewound Surface Mount Inductor 12 nH ±5% 500 mA DC Current 0402 Package LQW15AN12NJ00D

Murata LQW15AN12NJ00D Wirewound Surface Mount Inductor is engineered with a ferrite core and designed for use in high frequency circuits such as Bluetooth, GSM, and wireless LAN telecommunications equipment. This inductor offers an inductance of 12 nH with a tolerance of ±5% and supports a maximum DC current of 500 mA, making it suitable for high-performance VHF and UHF applications.

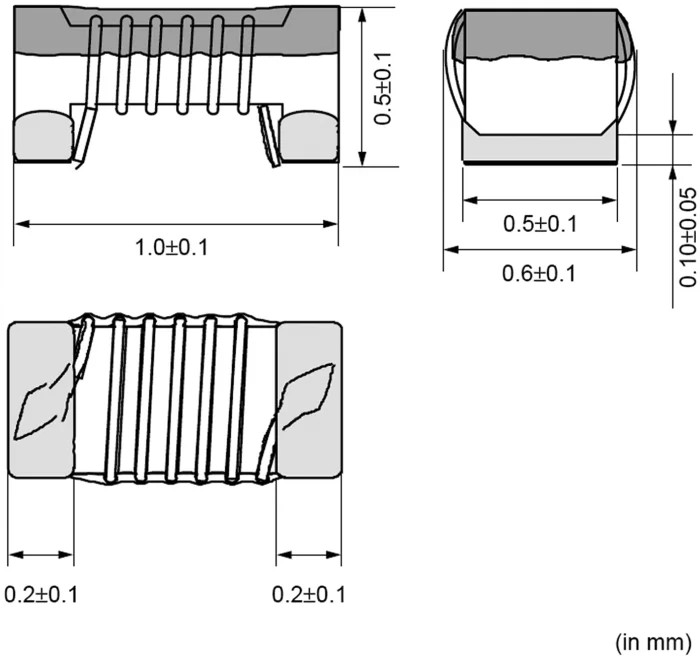

The compact 0402 package measures 1 mm in length, 0.5 mm in height, and 0.6 mm in depth, accommodating dense PCB layouts. It features a tin plating termination style to ensure strong solderability and durability. The device operates reliably across a wide temperature range from -55°C to 125°C. Its low maximum DC resistance of 140 mΩ contributes to efficient current flow.

With a minimum quality factor of 30 and maximum self-resonant frequency of 5.5 GHz, this wirewound inductor exhibits excellent resonance characteristics necessary for demanding RF environments. Packaged in paper tape, it is designed for automated mounting processes, enhancing production efficiency.

The product complies with RoHS standards, signifying adherence to environmental and safety regulations.

This inductor is manufactured in Japan, ensuring high quality and reliability. Ideal for industrial, telecommunications, and electronics manufacturing applications requiring high frequency filtering and signal integrity.

Designed for VHF and UHF telecommunication circuits. Ferrite core construction with tin plating terminations. Compact 0402 surface mount package for dense PCB design. Wide operating temperature from -55°C to 125°C. Low DC resistance and high quality factor for optimal performance.

Paper tape packaging suitable for automated assembly. RoHS compliant for environmental safety. Explore a wide range of Surface Mount Inductors and high frequency components at EnvMart for your next project.
