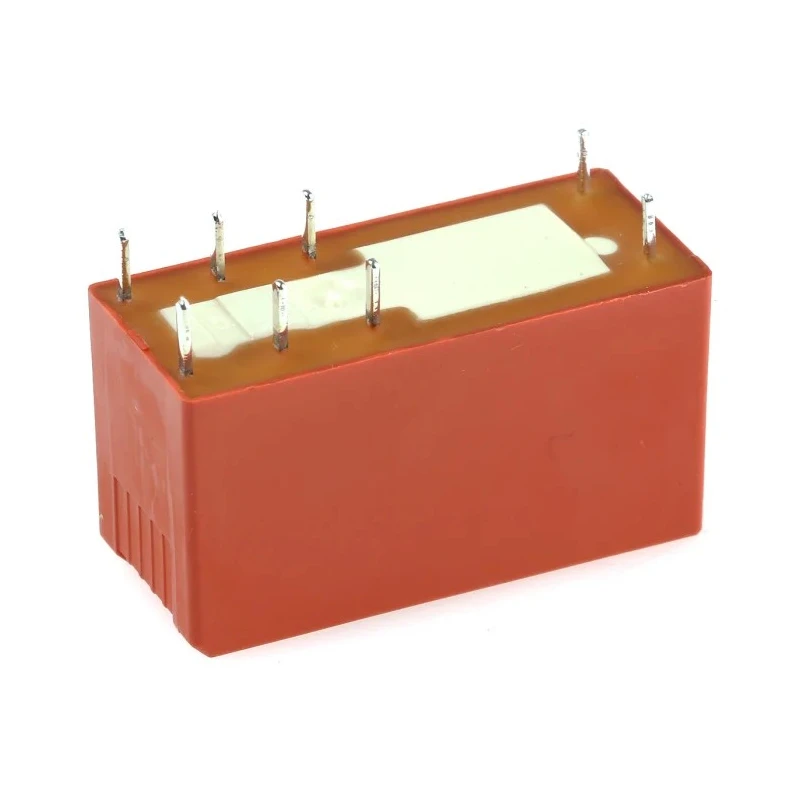

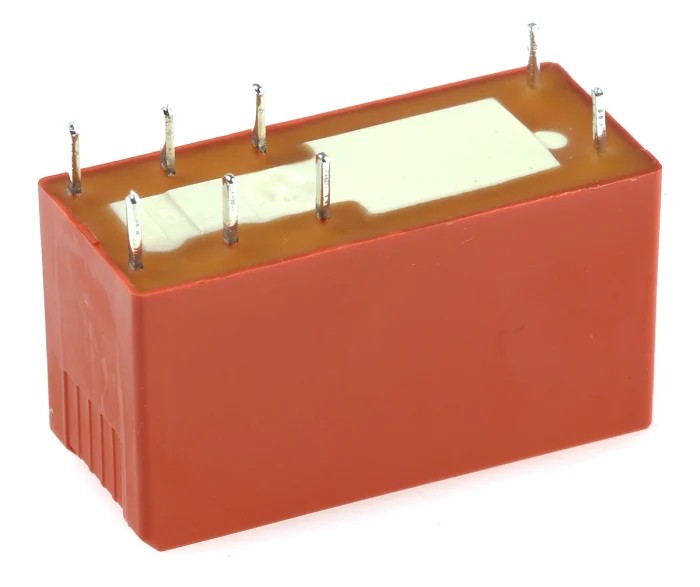

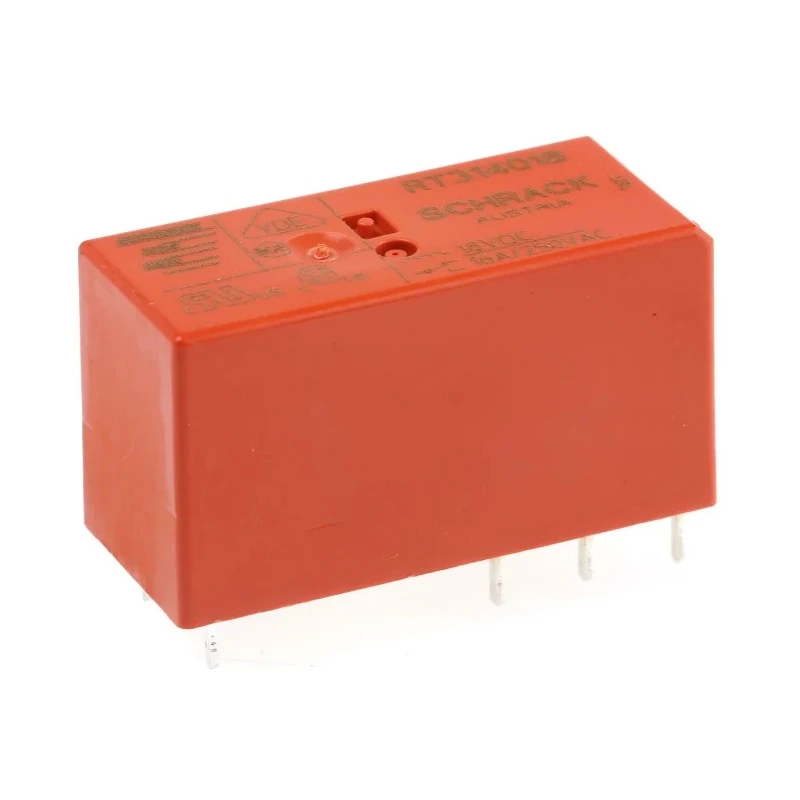

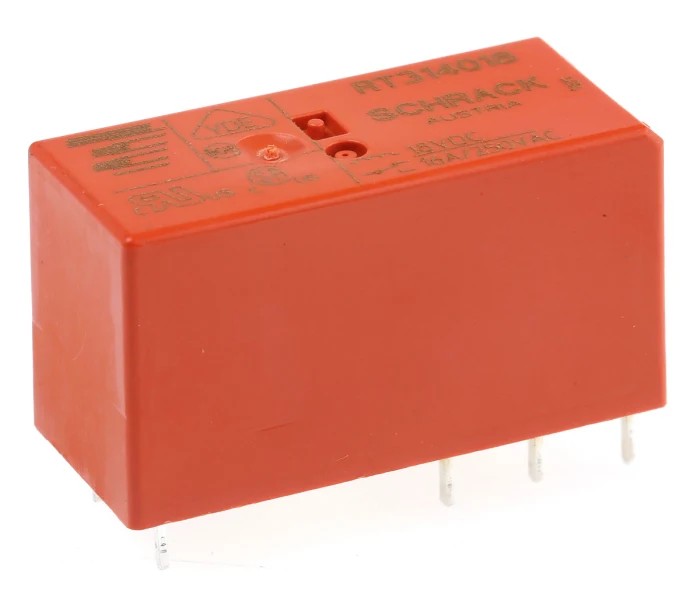

TE Connectivity PCB Power Relay 18V DC Coil 16A Switching Current SPDT RT314018
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT314018 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | RoHS, REACH, ELV, CSA, CQC, VDE, UL |
| Coil Resistance | 810Ω |
| Coil Voltage | 18V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Designed for PCB mounting with solder terminal type for secure connections.
- Operates reliably within a temperature range from -40°C to 85°C.
- Coil resistance of 810 Ohms ensures efficient coil power consumption at 400mW.
- Compact dimensions of 29mm length, 15.7mm height, and 12.7mm width suit various electronics applications.
- Gold plated contacts provide enhanced conductivity and durability.
- Suitable for switching AC voltages up to 400V AC and switching power of 4kVA.
- Compliance with RoHS, REACH, ELV, CSA, CQC, VDE, and UL standards ensures quality and safety.
- Ideal for automation, interface control, domestic electronics, security lighting, and heating system applications.
Product Description
TE Connectivity RT314018 PCB Power Relay offers a reliable and efficient solution for electronic switching tasks requiring 18V DC coil voltage and 16A switching current. The SPDT contact configuration facilitates versatile switching applications in industrial and domestic environments.
Mount type is PCB with solder terminals, providing a secure, through-hole connection. The relay operates efficiently with coil resistance at 810 Ohms and coil power consumption of just 400mW. Its robust design supports operating temperatures from -40°C to 85°C, ensuring dependable performance under diverse environmental conditions.
Dimensions include a length of 29mm, height of 15.7mm, and width of 12.7mm, enabling compact mounting in diverse electronic assemblies. Contact material is gold plated to provide superior conductivity and wear resistance, enhancing long-term reliability.
The relay supports switching AC voltages up to 400V AC and a switching power capacity of 4kVA, making it suitable for demanding automation, interface, security lighting controls, and heating system applications.
Designed for PCB mounting with solder-type terminals for secure contacts. Operating temperature range from -40°C to 85°C for wide environmental tolerance. Gold plated contacts ensure high conductivity and durability. Compliance with international standards RoHS, REACH, ELV, CSA, CQC, VDE, and UL certified.
Compact dimensions and low coil power consumption (400mW) enhance design flexibility and energy efficiency. Supports high switching currents and voltages for industrial, automation, and domestic use cases. Applications include automation, interface electronics, security lighting, and heating systems.
This TE Connectivity Power Relay is a trusted component for reliable electronic switching and control in a broad range of electrical, automation, and industrial applications. EnvMart offers this product as part of the Electronics & Electricals category, helping customers source quality relays for precise power management and control.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 18V DC.
This model can handle a maximum switching current of 16A.
The dimensions of the relay are 29mm in length, 15.7mm in height, and 12.7mm in width.
The contact configuration of this relay is SPDT (Single Pole Double Throw).
The coil resistance of this power relay is 810 Ohms.
This relay can switch AC voltages up to 400V AC.
The coil power consumption is 400mW.
This relay can operate within a temperature range from -40°C to 85°C.
This relay uses solder terminals for secure connections.
This relay complies with RoHS, REACH, ELV, CSA, CQC, VDE, and UL standards.
The contact material used in this relay is gold plated, which enhances conductivity and durability.
This relay is suitable for applications in automation, interface control, domestic electronics, security lighting, and heating systems.
