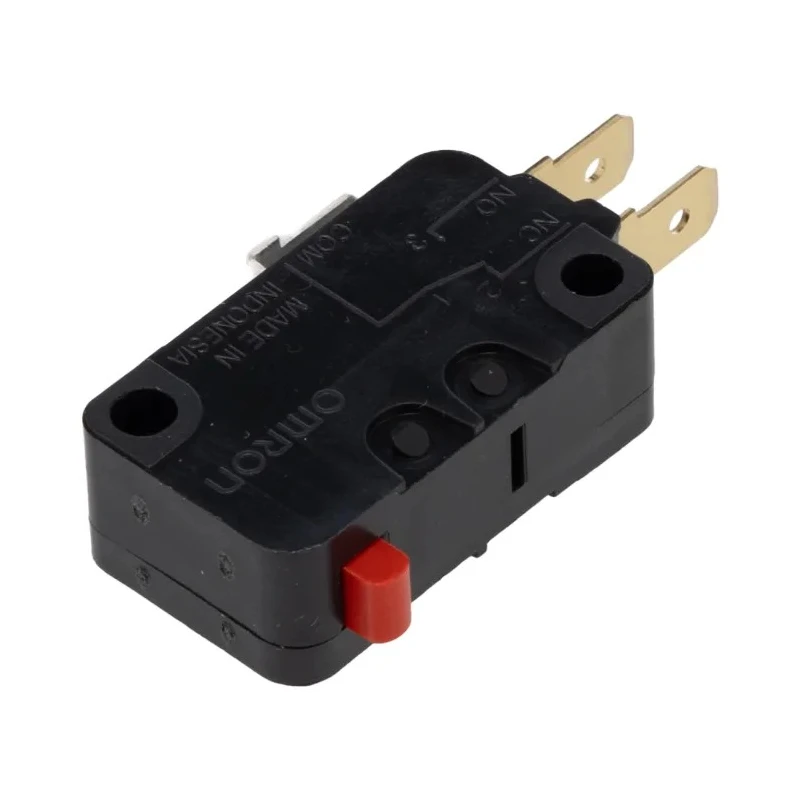

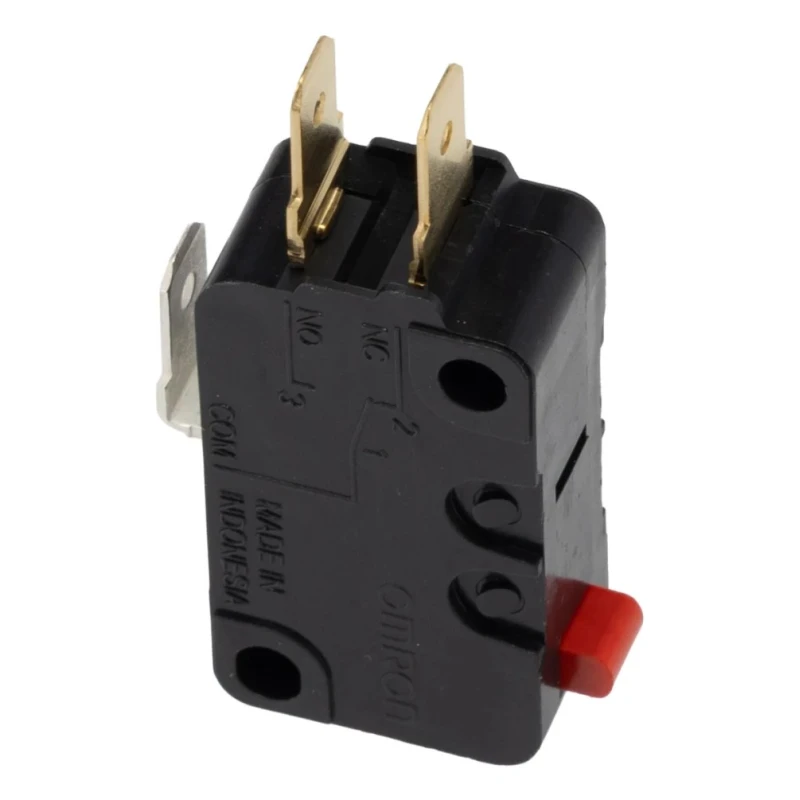

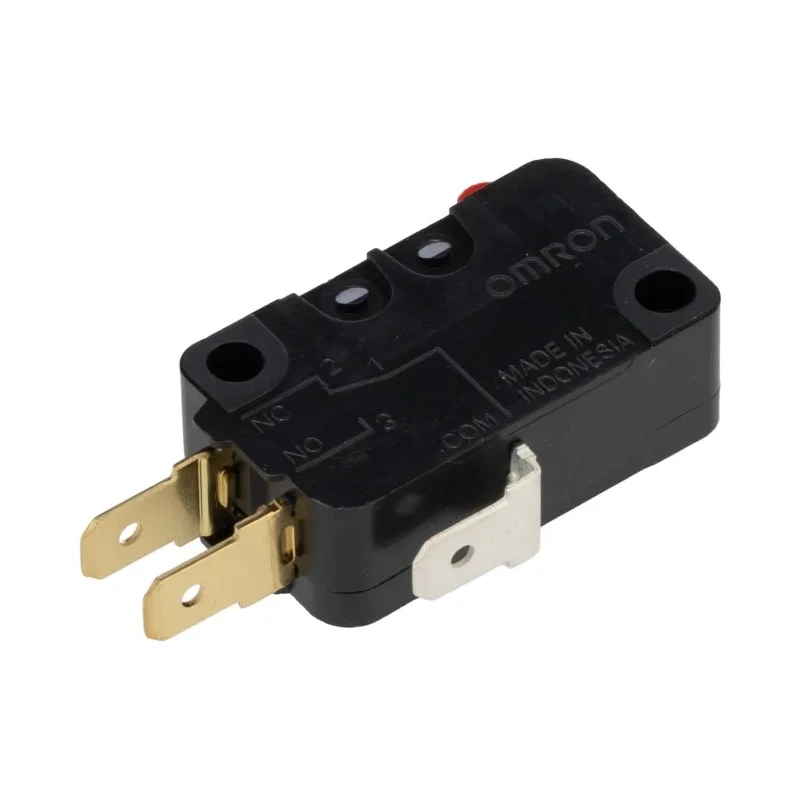

Omron Pin Plunger Micro Switch, Quick Connect Terminal, 16A, 250 V AC, SPDT, IP40 D3V-16-1C25
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Model | D3V-16-1C25 |
| IP Rating | IP40 |
| Series | D3V |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPDT |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -25°C |
| Terminal type | Quick Connect |
| Standards/Approvals | RoHS |
| Switch Contact Current | 16A |
| Operating Force | 1.96N |
| Mechanical Life | 10000000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Miniature |
| Aratas Pin Plunger Micro Switch, Tab Terminal, 16A, 250 V ac, SPCO, IP40Brand | Omron |
| Panasonic Pin Plunger Microswitch, Tab Terminal, 11 A @ 250 V ac, SPDTBrand | Panasonic |
Key Features
- Pin plunger actuator provides precise and reliable switching action.
- Quick connect terminals enable easy installation and maintenance.
- Supports a contact current of 16A at 250 V AC for robust electrical load handling.
- SPDT (Single Pole Double Throw) contact configuration for versatile circuit design.
- IP40 rating ensures protection against dust ingress, enhancing durability.
- Operating force of 1.96 N ensures accurate actuation.
- Wide operating temperature range from -25°C to +105°C for use in harsh environments.
- Mechanical life expectancy of up to 10 million operations for long service life.
Product Description
Omron D3V-16-1C25 Pin Plunger Micro Switch is a miniature type micro switch designed for precise automation and control applications. It features a pin plunger actuator with quick connect terminals that simplify wiring and maintenance. Rated for a contact current of 16A at 250 V AC, it is suitable for heavy-duty switching needs.
This micro switch offers a Single Pole Double Throw (SPDT) contact configuration, enabling flexible circuit design options. Its IP40 rating provides solid protection against dust, ensuring stable performance in industrial environments. The operating temperature range from -25°C to 105°C allows deployment in demanding conditions, including manufacturing and automation systems.
The required actuation force is 1.96 newtons, providing responsive and reliable engagement each operation. With a mechanical life of 10 million operations, this device is engineered for durability and longevity, minimizing downtime and maintenance frequency. Additionally, the switch complies with RoHS directives, signaling adherence to environmental and safety standards.
The switch is ideal for electrical control panels, manufacturing automation, machinery actuation, and other industrial electronic applications requiring dependable contact switching. Its compact miniature design helps integrate into space-restricted assemblies without compromise of performance.
Pin plunger actuator ensures precise switching action. Quick connect terminals facilitate fast installation and servicing. High contact current rating of 16A at 250 V AC supports heavy load switching. SPDT contact configuration offers versatile switching options.
IP40 dust protection rating for reliable operation in industrial settings. Operating force of 1.96 N guarantees accurate switch actuation. Wide temperature range (-25°C to +105°C) enables use in varied environments. Mechanical life of 10 million operations ensures long-term reliability.
RoHS compliant environmental and safety certification. Browse the Electronics & Electricals category on EnvMart for more high-quality Micro Switches and industrial automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Omron D3V-16-1C25 micro switch has a contact current rating of 16A at 250 V AC, making it suitable for heavy-duty switching applications.
This model features a pin plunger actuator, which provides precise and reliable switching action.
The micro switch has an IP40 rating, ensuring protection against dust ingress and enhancing its durability in industrial environments.
It operates within a temperature range of -25°C to 105°C, allowing for use in various demanding environments.
The mechanical life expectancy of this switch is up to 10 million operations, ensuring long-term reliability and reduced maintenance frequency.
The required actuation force for this micro switch is 1.96 N, providing responsive engagement during operation.
It is equipped with quick connect terminals, which facilitate easy installation and maintenance.
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile circuit design options.
Yes, the D3V-16-1C25 complies with RoHS directives, indicating adherence to environmental and safety standards.
The specific dimensions and weight are not provided in the product details. Please refer to the manufacturer's specifications for this information.
This micro switch is suitable for applications in electrical control panels, manufacturing automation, and machinery actuation, among others.
This micro switch is part of the D3V series, which includes various models designed for precise automation and control applications.
