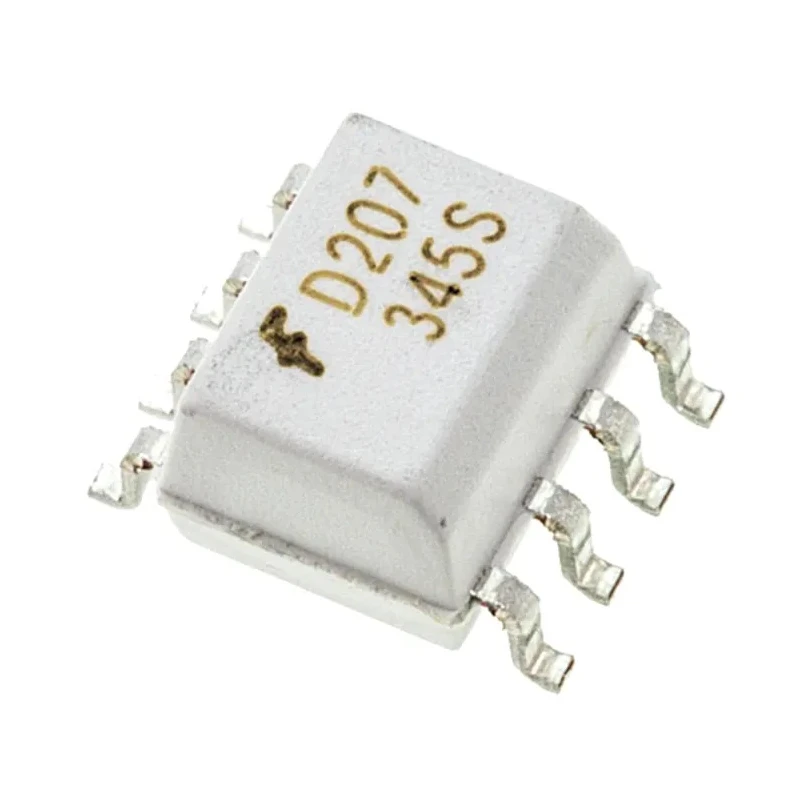

onsemi DC Input 2-Channel Optocoupler, Surface Mount, 8-Pin SOIC MOCD207R2M

onsemi MOCD207R2M is a DC input optocoupler offering two independent channels with transistor output in a compact 8-pin SOIC surface mount package. It provides efficient optical isolation between low voltage input circuits and high voltage output stages, improving safety and signal integrity in electronic designs.

This device supports a maximum forward voltage of 1.55 V with a maximum input current of 60 mA and operates reliably in industrial temperature ranges from -40°C to 100°C. Its isolation voltage rating of 2.5 kVrms ensures robust electrical separation between input and output sides, crucial for sensitive applications.

Typical switching characteristics include a rise time of 1.6 µs and fall time of 2.2 µs, contributing to fast and consistent response in signal transmission. It is compliant with IEC, UL, and EN standards, indicating high reliability and safety for electronic system integration.

The product is supplied in tape & reel packaging format suitable for automated manufacturing environments, facilitating efficient assembly processes.

Common industrial applications include use in power electronics, signal isolation, industrial control systems, instrumentation, and telecommunications. Its transistor output supports driving circuits requiring amplified signals with electrical isolation.

Reliable performance under varying temperature and electrical conditions makes the MOCD207R2M optocoupler suitable for diverse electronic and electrical system designs in industrial, commercial, and laboratory environments.

Features transistor output type suitable for various electronic applications. Supports a maximum forward voltage of 1.55 volts ensuring low power consumption. Includes two independent channels in a single device for compact circuit design.

Packaged in tape and reel format ideal for automated assembly processes. Designed for DC input current type with a maximum input current rating of 60 milliamps. Operates efficiently within a temperature range of -40 to 100 degrees Celsius.

Offers isolation voltage of 2.5 kVrms for effective electrical separation and safety. Meets IEC, UL, and EN safety standards for quality and reliability. Typical rise and fall times are 1.6 microseconds and 2.2 microseconds respectively, ensuring fast switching.
