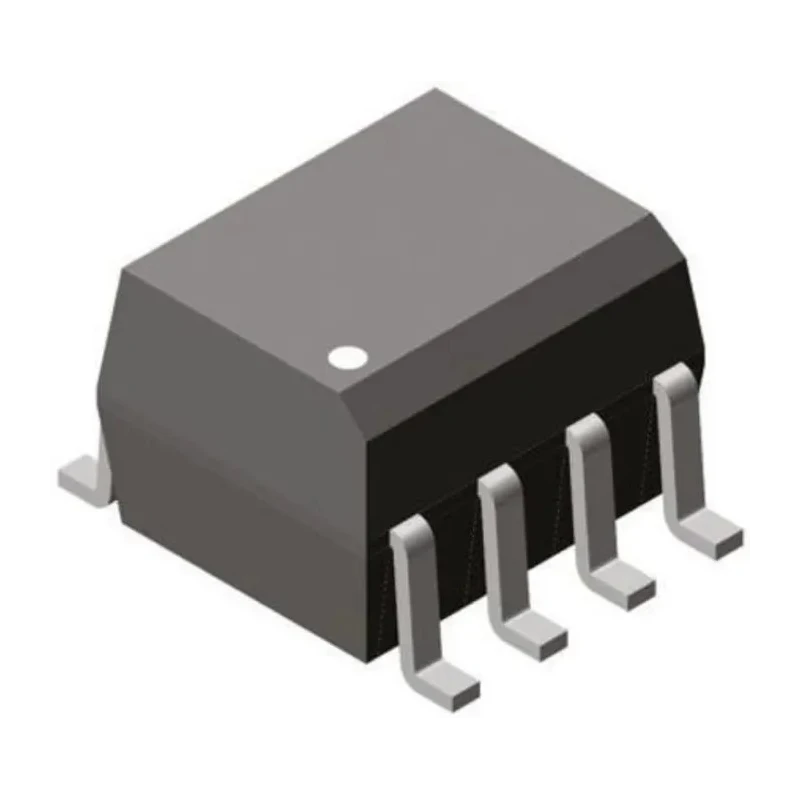

onsemi DC Input Optocoupler Surface Mount Transistor Output 8-Pin SOIC MOC207R2M
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | MOC207R2M |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Output type | Transistor |
| Series | MOC |
| Maximum Operating Temperature | 100°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Standards/Approvals | EN, IEC, UL |
| Maximum Forward Voltage | 1.5V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 3.2μs |
| Maximum Current Transfer Ratio | 2% |
| Typical Fall Time | 4.7μs |
| Minimum Current Transfer Ratio | 100% |
Key Features
- Designed for efficient DC input switching applications.
- Supports single channel operation with 8 pins in SOIC form factor.
- Typical rise time of 3.2 microseconds and fall time of 4.7 microseconds.
- Maximum input current rated at 60 milliamps for robust performance.
- Electrical isolation with 2.5kVrms isolation voltage for safety.
- Operates within a wide temperature range from -40°C to 100°C.
- Maximum forward voltage is 1.5 volts ensuring optimal efficiency.
- Complies with standards EN, IEC, and UL for reliability.
Product Description
onsemi MOC207R2M DC Input Optocoupler provides reliable electrical isolation and signal transfer between circuit sections in electronic industrial applications. This optocoupler uses a transistor output and surface mounting 8-pin SOIC package format.
This single-channel device is designed for use in electronic circuits requiring isolation from DC input signals, making it suitable for industrial automation, power management, and signal processing applications.
The device has a maximum forward voltage of 1.5V and a maximum input current of 60mA, with typical rise and fall times of 3.2μs and 4.7μs respectively, enabling fast signal switching.
The isolation voltage rating of 2.5kVrms ensures safety and protection against high voltage transients. Operating temperatures range from -40°C to 100°C, accommodating harsh industrial environments.
Compliant with EN, IEC, and UL standards, this optocoupler meets stringent international reliability and safety criteria. The unit ships in tape and reel packaging, facilitating efficient automated manufacturing processes.
Designed for efficient DC input switching applications. Supports single channel operation with 8 pins in SOIC form factor. Typical rise time of 3.2 microseconds and fall time of 4.7 microseconds. Maximum input current rated at 60 milliamps for robust performance.
Electrical isolation with 2.5kVrms isolation voltage for safety. Operates within a wide temperature range from -40°C to 100°C. Maximum forward voltage is 1.5 volts ensuring optimal efficiency. Complies with standards EN, IEC, and UL for reliability.
Packaged on tape and reel, ready for automated machine insertion. Automotive standard not applicable for this model. This optocoupler is ideal for use in industrial, electronic, and power management systems where DC signal isolation with transistor output is required.
Explore more onsemi Optocouplers and related components at EnvMart for reliable electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is rated at 60 milliamps.
It has a typical rise time of 3.2 microseconds and a fall time of 4.7 microseconds.
This optocoupler features an electrical isolation voltage of 2.5kVrms for safety.
The MOC207R2M operates within a temperature range of -40°C to 100°C.
It provides a transistor output type.
This model supports single channel operation.
It is packaged on tape and reel, facilitating efficient automated manufacturing processes.
The MOC207R2M complies with EN, IEC, and UL standards for reliability and safety.
The maximum forward voltage for the MOC207R2M is 1.5 volts.
This optocoupler has a surface mount type.
The country of origin for this model is India.
The minimum current transfer ratio is 100%.
