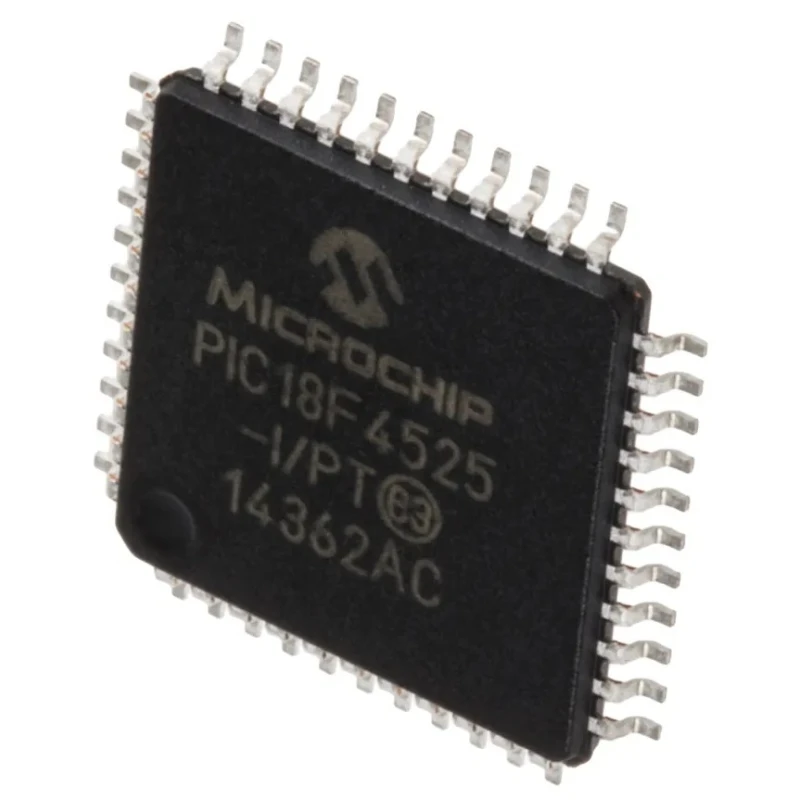

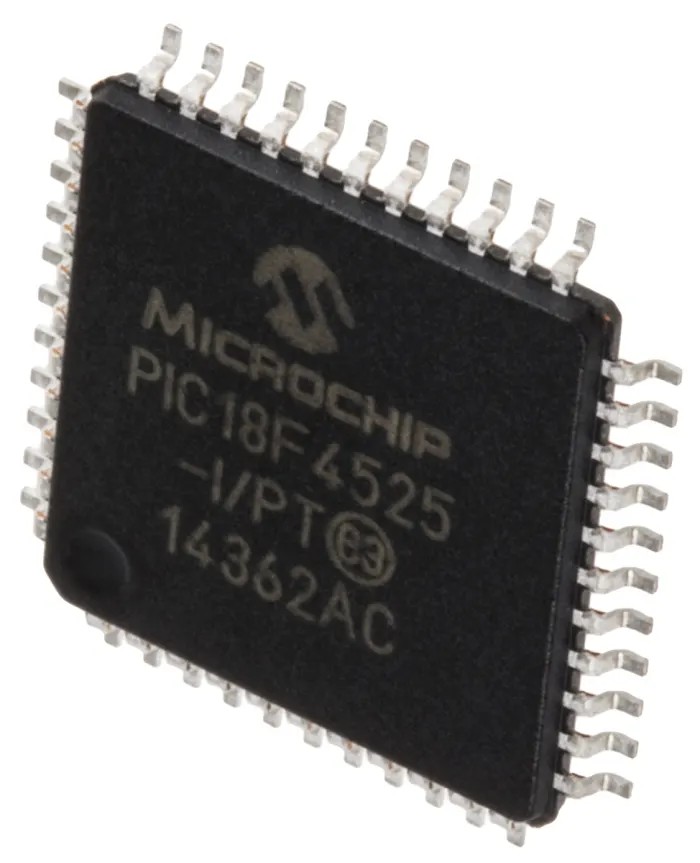

Microchip 8-bit PIC18F Microcontroller 40 MHz 1.024kB Program Memory 48 kB FLASH 44-Pin TQFP PIC18F4525-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC18F4525-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 3.99kB |
| Interface Type | SPI |
| Pin Count | 44 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 1.024, 48kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 22 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 32kB |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 13 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates at a maximum clock frequency of 40 MHz for reliable performance.
- Equipped with 1.024kB program memory and 48 kB FLASH for versatile embedded applications.
- Contains 3.99kB RAM and supports SPI interface communication.
- Features 22 programmable I/Os and 13 channels of 10-bit ADC for precise analog input.
- Designed with nanoWatt technology enabling low power consumption.
- Supports temperature range from -40°C to 85°C ensuring durability in varied environments.
- Includes multiple timers and advanced peripherals such as Capture, Compare, and PWM modules.
- Utilizes FLASH program memory type with a RISC 75 instruction set architecture.
Product Description
Microchip PIC18F4525-I/PT is an 8-bit PIC microcontroller featuring a high-speed 40 MHz CPU and 1.024kB program memory combined with 48 kB of FLASH memory. This 44-Pin TQFP surface mount device is optimized for embedded electronics applications requiring reliable processing power and low energy consumption.
This microcontroller is based on the efficient PIC18 architecture incorporating a 31-level hardware stack and a comprehensive 75 instruction set. It supports SPI interface communication, making it suitable for embedded control and automation systems.
Designed with advanced nanoWatt technology, the PIC18F4525-I/PT offers power-saving modes ideal for battery-powered and energy-conscious applications. It features 22 programmable I/O pins and 13 ADC channels with 10-bit resolution for accurate analog signal processing.
Maximum clock frequency of 40 MHz enabling fast execution. 3.99kB RAM and 1.024kB of program memory with FLASH type for non-volatile storage. 13-channel 10-bit Analog-to-Digital Converters and two analogue comparators. Multiple timers and enhanced peripherals including Capture, Compare, and PWM modules.
Wide operating temperature range from -40°C to 85°C for industrial and commercial use. Surface mount TQFP 44-pin package measuring 10 mm by 10 mm with a height of 1.05 mm.
This microcontroller series is suitable for industrial, laboratory, consumer electronics, automotive control, and embedded systems requiring high integration and versatile I/O capabilities.
The PIC18F4525-I/PT offers a durable and efficient solution for embedded applications in manufacturing, communications, instrumentation, and control industries. Explore more embedded Microcontroller solutions and components for your design needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 40 MHz, enabling fast execution for embedded applications.
This microcontroller has 22 programmable I/O pins, allowing for flexible interfacing with other components.
It operates within a temperature range of -40°C to 85°C, suitable for various industrial and commercial environments.
The PIC18F4525-I/PT supports SPI interface communication, making it suitable for embedded control applications.
This model includes 3.99 kB of RAM for data storage and processing.
It has dimensions of 10 mm by 10 mm with a height of 1.05 mm, packaged in a TQFP format.
The PIC18F4525-I/PT features 13 channels of 10-bit ADC for precise analog input processing.
It operates with a supply voltage range from 2V to 5.5V.
This microcontroller is suitable for industrial, laboratory, consumer electronics, automotive control, and embedded systems.
This model is based on the RISC instruction set architecture, which enhances processing efficiency.
