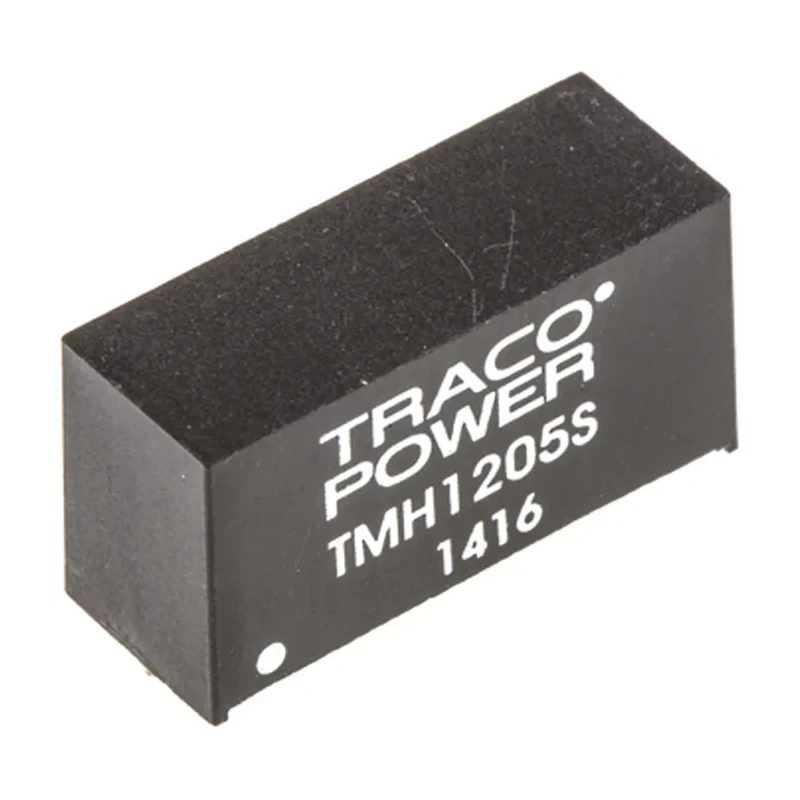

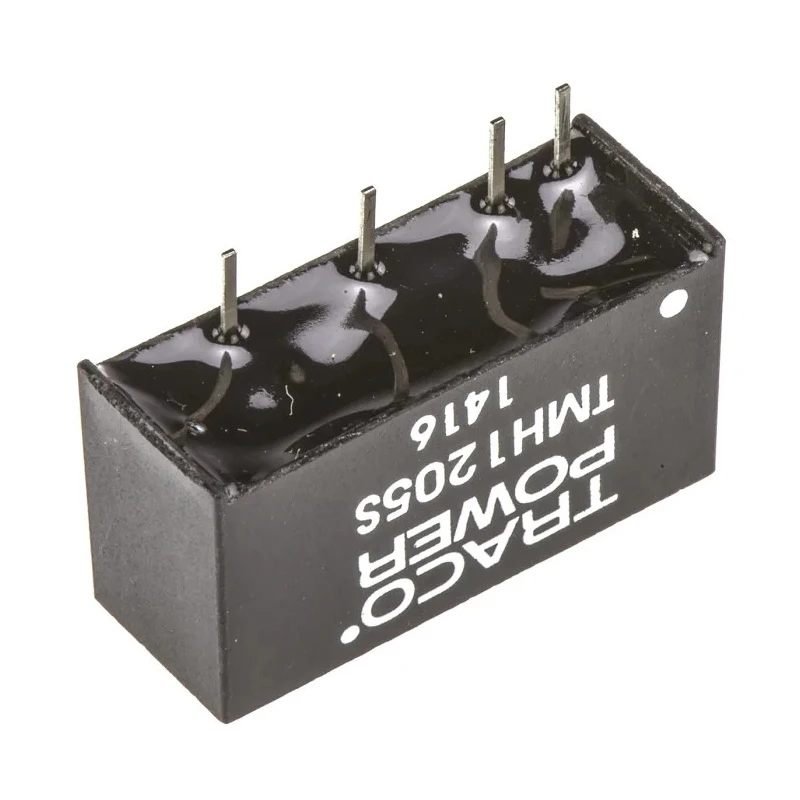

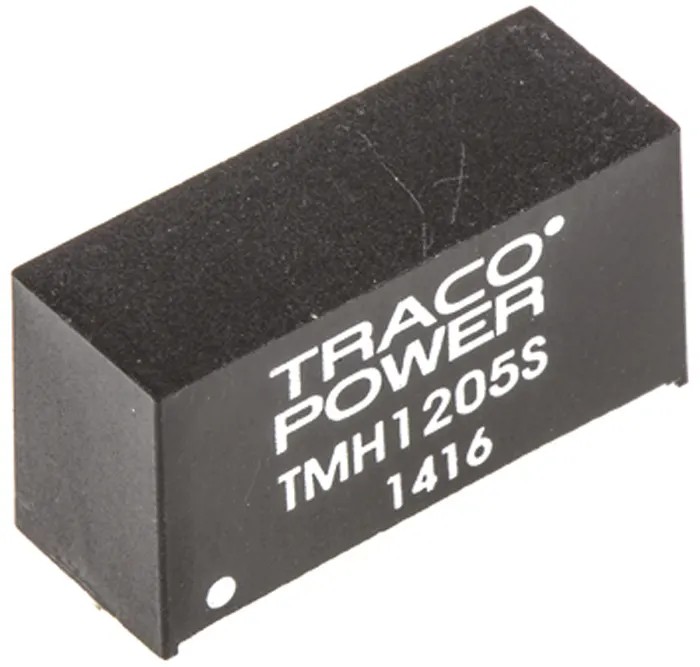

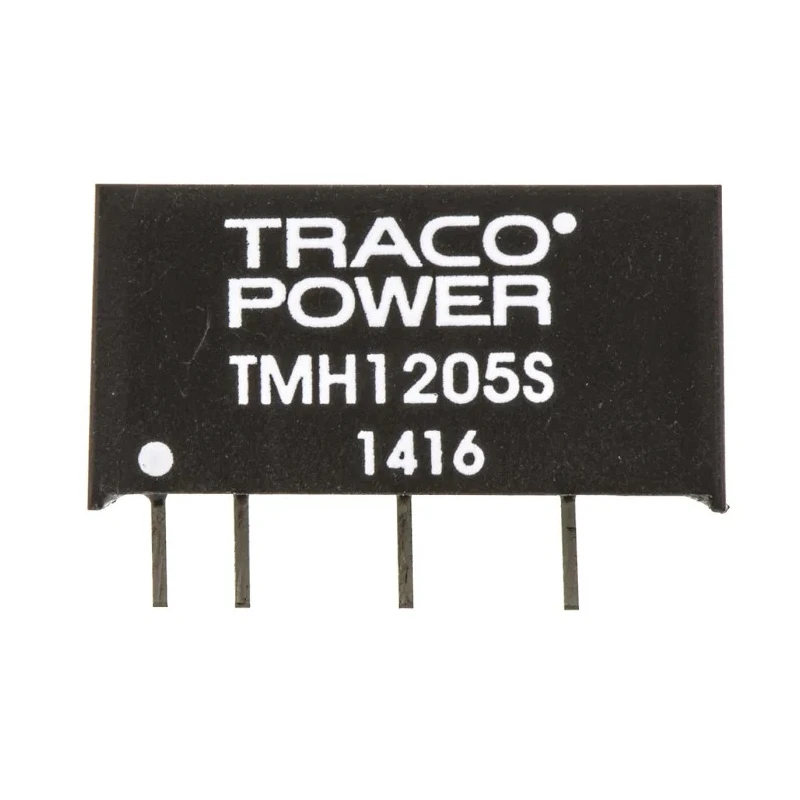

TRACOPOWER DC/DC Converter Through Hole 5V DC 400mA Input 10.8V-13.2V 2W TMH 1205S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TMH DC/DC Converter, 5V dc/ 400 mA, 13 |
| Brand | TRACOPOWER |
| Efficiency | 78% |
| Length | 19.5mm |
| Model | TMH 1205S |
| Depth | 10.2mm |
| Mount Type | Through Hole |
| Series | TMH |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2000000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 13.2V dc |
| Minimum Input Voltage | 10.8V |
| Number of Pins | 5 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 400mA |
| Isolation Voltage | 1kV dc |
Key Features
- Compact SIP7 package suitable for space-constrained board designs.
- High efficiency of up to 78% for energy-saving operation.
- Isolation voltage rated at 1kV DC for electrical safety.
- Extended operating temperature range from -40°C to 85°C for harsh environments.
- Mean time between failures (MTBF) of 2,000,000 hours ensuring reliability.
- Single output configuration with 5 pins for stable electrical connections.
- Industry-standard pin-out in DIP package ensuring compatibility.
- Ideal for board-level power distribution in industrial and electronic applications.
Product Description
TRACOPOWER presents the TMH 1205S, a 2 Watt isolated DC/DC Converter designed for compact and reliable power solutions.
This through-hole mounted converter delivers a regulated 5V DC output at up to 400mA from a variable input voltage range of 10.8V to 13.2V DC. Encased in a DIP package with 5 pins and a small footprint of 19.5mm length and 10.2mm depth, it is ideal for applications requiring minimal board space.
With an efficiency of 78% and isolation voltage of 1kV DC, the TMH 1205S ensures optimal energy use while protecting sensitive circuits. Its wide operating temperature range from -40°C to 85°C allows deployment in industrial, manufacturing, telecommunications, and instrumentation environments.
The converter features a Mean Time Between Failures of 2,000,000 hours, reflecting excellent long-term reliability. The device’s industry-standard pin-out and SIP7 packaging facilitate easy integration into existing power distribution networks on PCBs.
This product is manufactured in Taiwan, Province Of China, maintaining TRACOPOWER’s commitment to quality and performance. Compact SIP7 package suitable for space-constrained designs. High efficiency of up to 78% for energy-saving operation.
Electrical isolation with 1kV DC rating. Robust operation from -40°C to 85°C ambient temperature. Long lifecycle with 2,000,000 hour MTBF. Single output channel with 5-pin DIP package. Industry-standard pin configuration.
Manufactured in Taiwan, Province Of China ensuring high standards.
Choose TRACOPOWER TMH 1205S for dependable DC/DC conversion in multiple industrial and laboratory power supply applications. Explore more advanced voltage converters and related power supply equipment on EnvMart for your industrial and electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TMH 1205S provides a regulated output voltage of 5V DC with a maximum output current of 400mA.
This model operates with an input voltage range of 10.8V to 13.2V DC.
The converter has an efficiency rating of up to 78%, promoting energy-saving operation.
The TMH 1205S features an isolation voltage rated at 1kV DC for electrical safety.
This unit has a length of 19.5mm and a depth of 10.2mm, making it suitable for space-constrained designs.
It can operate in a wide temperature range from -40°C to 85°C, suitable for harsh environments.
This model features a single output configuration.
The TMH 1205S has a Mean Time Between Failures of 2,000,000 hours, indicating long-term reliability.
This converter is designed for through-hole mounting, facilitating easy integration into PCBs.

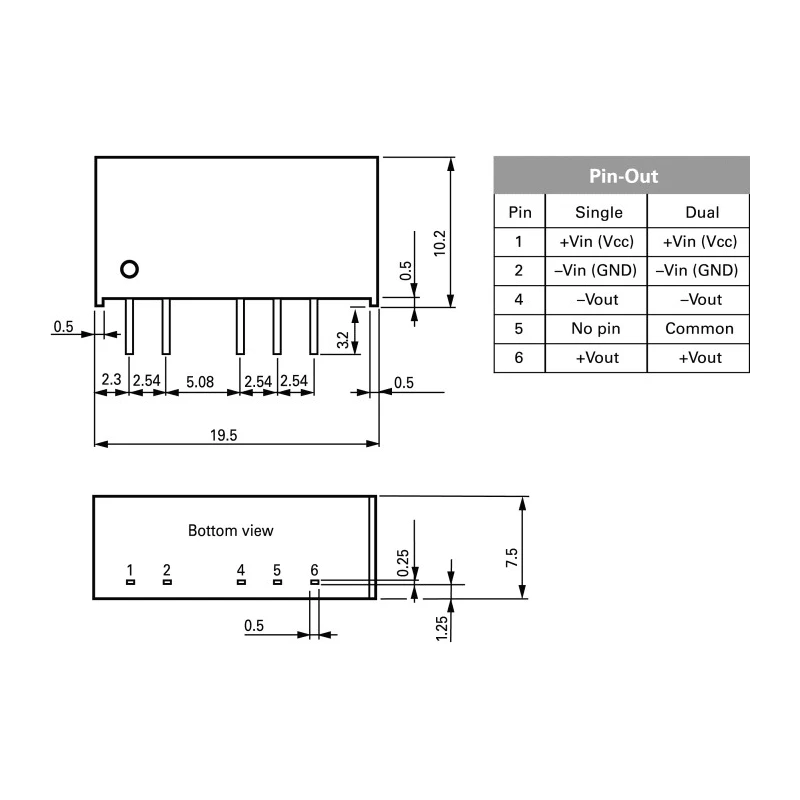

The converter is encased in a DIP package with 5 pins, following an industry-standard pin-out.
This product is manufactured in Taiwan, Province Of China.
It is ideal for board-level power distribution in industrial and electronic applications.
