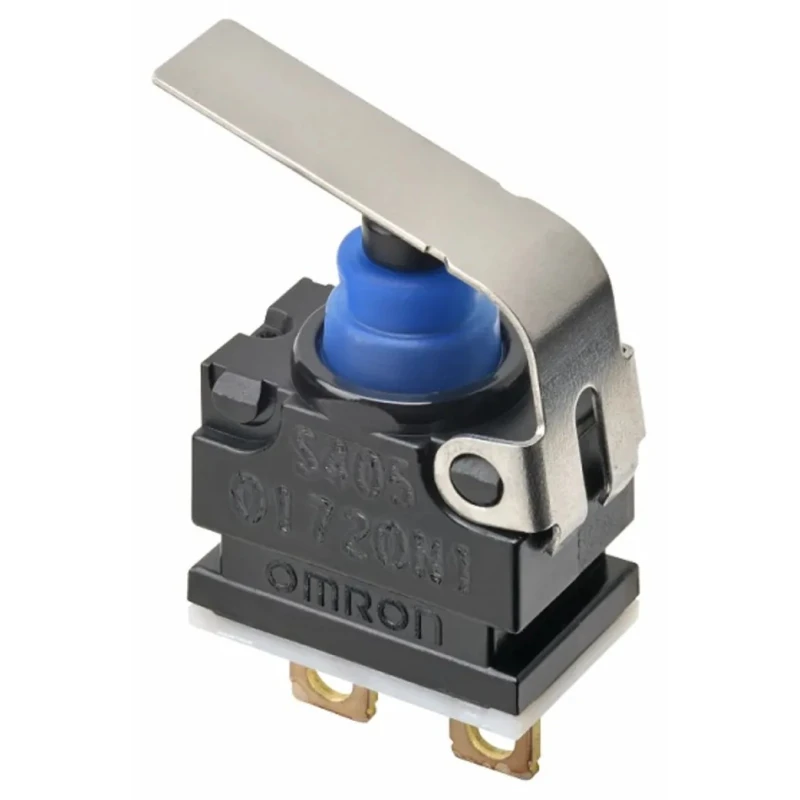

Omron Hinge Lever Subminiature Micro Switch, Solder Terminal, 1mA Current, 13.5V DC, SPST-NO, IP67 D2GW-SC03M
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Model | D2GW-SC03M |
| IP Rating | IP67 |
| Series | D2GW |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST-NO |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 13.5V dc |
| Switch Contact Current | 1mA |
Key Features
- The switch features a solder terminal type suitable for PCB mounting.
- Designed for a maximum contact current rating of 1mA at 13.5 volts DC.
- Contact configuration is Single Pole Single Throw Normally Open (SPST-NO).
- It has a robust IP67 protection rating ensuring dust tightness and water resistance.
- Operational temperature range from -40°C up to 85°C enables use in harsh environments.
- The symmetrical design supports various actuator variations for versatile applications.
- Sliding structure ensures quiet operation during actuation.
- Compliant with RoHS standards for environmental safety.
Product Description
Omron D2GW-SC03M is a high-reliability hinge lever subminiature micro switch designed for low current and voltage applications typically found in electronics and automation systems.
This model features a solder terminal type ideal for secure PCB assembly, supporting a switch contact current rating of 1mA at 13.5 V DC with a SPST-NO contact configuration. The switch boasts IP67 ingress protection, making it resistant to dust and water ingress, suitable for industrial environments requiring robust performance.
Operating temperature spans from -40°C to 85°C, ensuring dependable functionality under a wide range of environmental conditions.
The hinge lever actuator offers smooth and quiet operation, supported by a sliding structure and fixed slit design that contributes to a slim form factor and space efficiency in assemblies.
Its symmetrical shape facilitates simple design integration and accommodates diverse actuator types, enhancing versatility. The product complies with RoHS directives, reflecting environmental considerations in manufacturing.
Applications include electronics devices, automation equipment, control systems, and industrial machinery requiring precise signaling or switching at low electrical currents. Country of origin is China, reflecting international manufacturing standards.
The switch features a solder terminal type suitable for PCB mounting. Designed for a maximum contact current rating of 1mA at 13.5 volts DC. Contact configuration is Single Pole Single Throw Normally Open (SPST-NO). It has a robust IP67 protection rating ensuring dust tightness and water resistance.
Operational temperature range from -40°C up to 85°C enables use in harsh environments. The symmetrical design supports various actuator variations for versatile applications. Sliding structure ensures quiet operation during actuation.
Compliant with RoHS standards for environmental safety. Manufactured origin is China with strict quality and performance standards. Explore the full range of Micro Switches at EnvMart for diverse industrial and manufacturing automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current rating of this model is 1mA at 13.5 volts DC.
This micro switch has an IP67 protection rating, ensuring it is dust tight and resistant to water ingress.
The operational temperature range for this model is from -40°C to 85°C, allowing it to function in harsh environments.
It features a hinge lever actuator type, which supports smooth and quiet operation during actuation.
Yes, it complies with RoHS standards, reflecting environmental considerations in its manufacturing.
The contact configuration is Single Pole Single Throw Normally Open (SPST-NO).
This switch features a solder terminal type, making it suitable for secure PCB mounting.
The country of origin for this micro switch is China, adhering to international manufacturing standards.
It is suitable for use in electronics devices, automation equipment, control systems, and industrial machinery requiring low current signaling.
The specific dimensions and weight of this model are not provided in the available specifications.
The sliding structure contributes to quiet operation during actuation, enhancing user experience in applications.
Yes, its symmetrical design supports various actuator variations, enhancing its versatility in applications.
