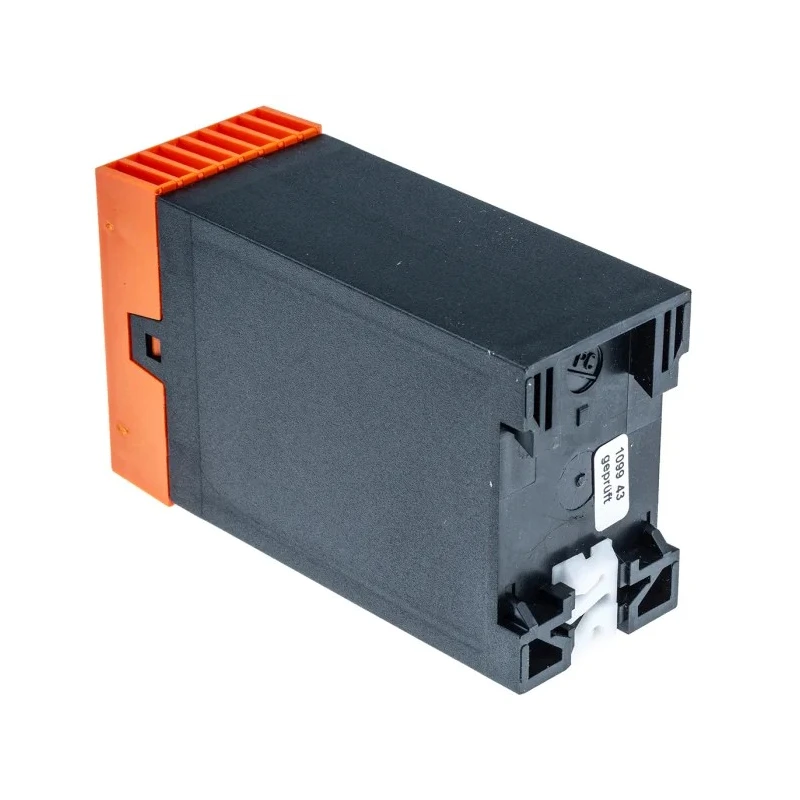

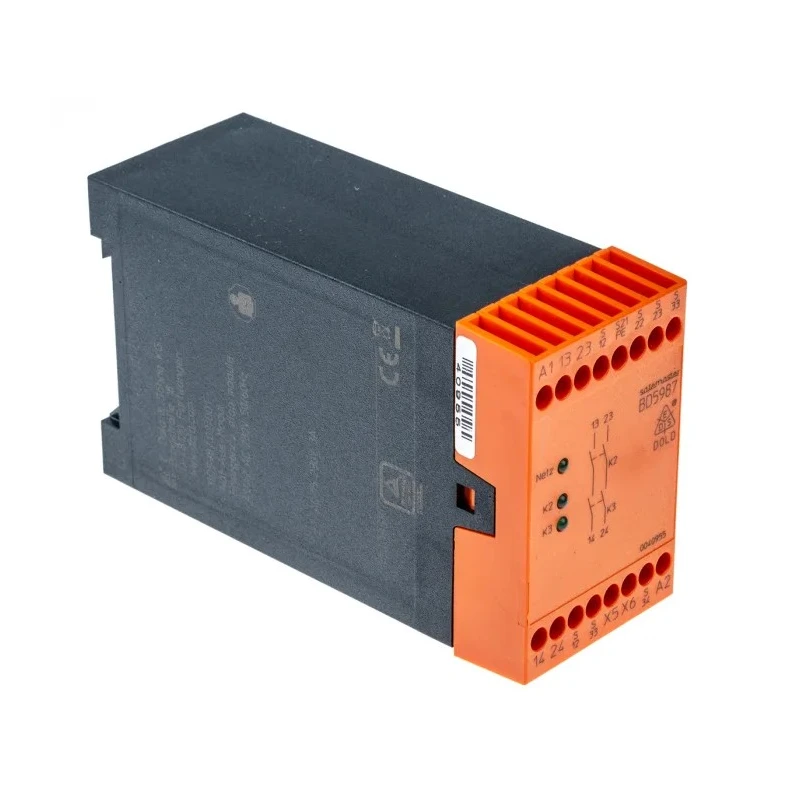

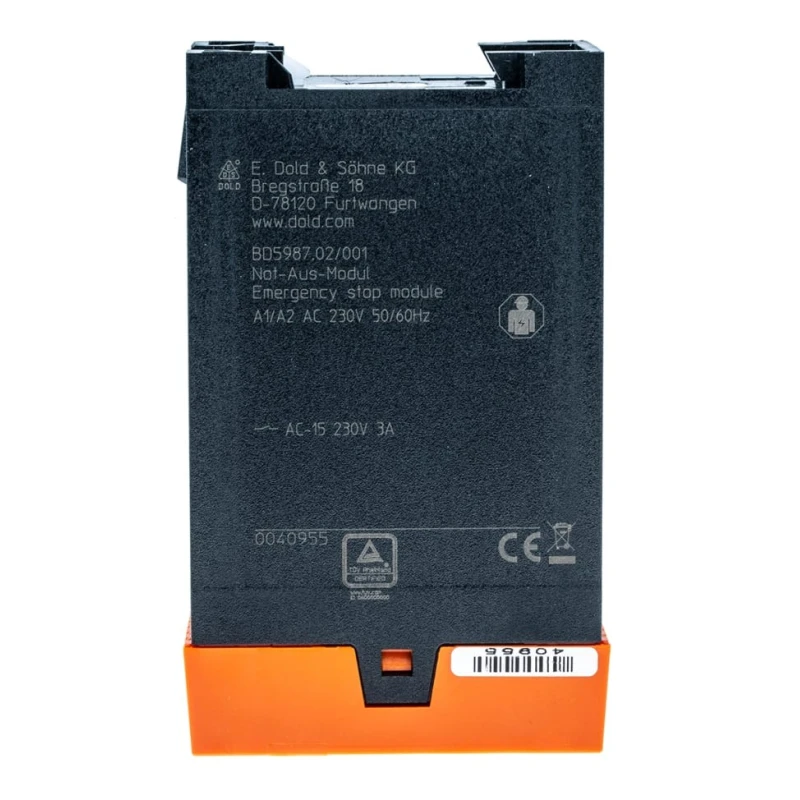

Dold Safety Relay 2 Safety Contacts DIN Rail Mount BD5987.02/001 AC50/60Hz 230V
Specifications
| Country of Origin | Germany |
|---|---|
| Output | 2 N/Os for AC 250 V |
| Brand | Dold |
| Height | 74mm |
| Length | 74mm |
| Model | BD5987.02/001 AC50/60Hz 230V |
| IP Rating | IP20, IP40 |
| Width | 45mm |
| Mount Type | DIN Rail |
| Optional | cross-fault detection in the emergency stop control circuit |
| Series | BD 5987 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -15°C |
| Terminal type | Screw |
| Reset Method | Automatic and Manual |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
| Safety Contacts | 2 |
| Pilz PNOZ X7, 230V ac Safety Relay, 2 Safety Contacts, 1Brand | Pilz |
Key Features
- Equipped with 2 safety contacts for reliable emergency stop functions.
- Mounts easily on DIN rail systems for flexible installation.
- Features automatic and manual reset methods for operational control.
- Operates with switching voltages of 24V DC and 250V AC.

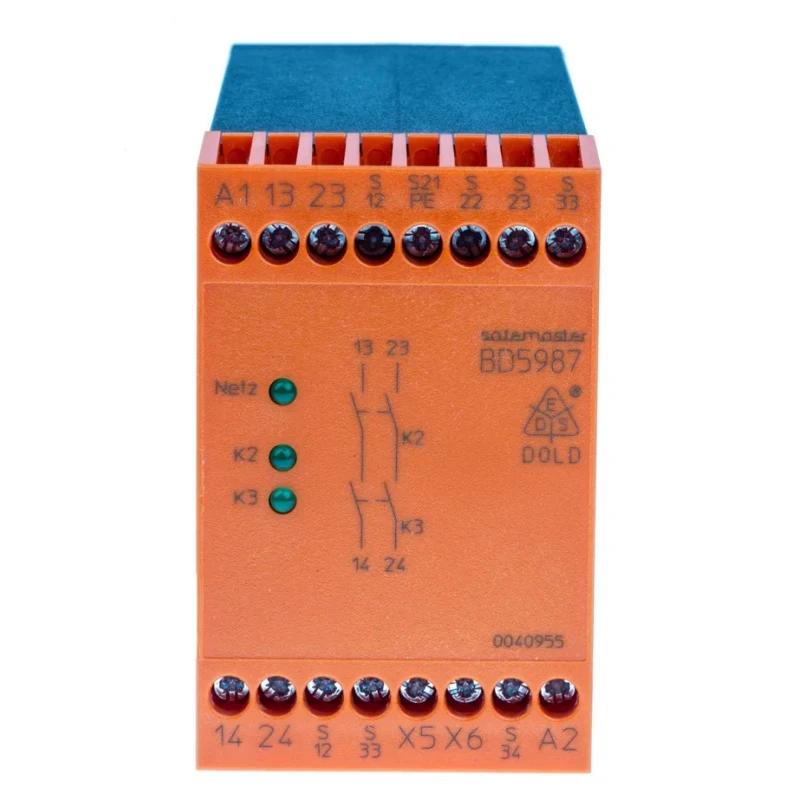

- LED indicators display channel status and operational mode clearly.
- Protects humans and machines according to international safety standards.
- Designed and manufactured in Germany ensuring high quality.
Product Description
Dold BD5987.02/001 AC50/60Hz 230V Safety Relay with 2 safety contacts is precisely engineered for industrial safety control and emergency stop applications. This DIN rail mountable safety relay facilitates monitoring of emergency stop switches and sliding grill guards, providing 2 normally open outputs rated for AC 250V.
The relay supports both automatic and manual reset methods, with robust line termination detection and optional cross-fault detection for enhanced safety. LED displays provide immediate visual status for two channels and operational modes.
Operating temperature range from -15°C to 55°C makes it suitable for diverse industrial environments. It offers protection compliant with EC Directive on Machines 89/392/EEC and other relevant IEC and EN standards. This unit is ideal for use in industrial automation, machinery safety systems, and manufacturing safety circuits.
Equipped with 2 safety contacts for emergency stop monitoring. DIN rail mount design for straightforward integration. Dual reset methods: automatic and manual. Supports switching voltages of 24V DC and 250V AC. LED indicators enhance operational reliability.
Compact size facilitating space-saving installation. Conforms to EN 60947-5-1, IEC/EN 61508, UL and other safety standards. Package contents and mounting accessories depend on purchase configurations. Manufactured in Germany to stringent quality standards.
Explore related industrial automation and Safety Relay products in EnvMart categories for optimized system integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This safety relay supports switching voltages of 24V DC and 250V AC.
It is equipped with 2 normally open safety contacts for emergency stop monitoring.
The dimensions are 74mm in height, 74mm in length, and 45mm in width.
The operating temperature range is from -15°C to 55°C, making it suitable for diverse industrial environments.
It is designed for DIN rail mounting, facilitating straightforward integration into existing systems.
This unit supports both automatic and manual reset methods for operational control.
The safety relay has an IP rating of IP20 and IP40, indicating its level of protection against solid objects and moisture.
It conforms to the EC Directive on Machines 89/392/EEC and other relevant IEC and EN standards, ensuring compliance with safety regulations.
The relay features screw-type terminals for secure electrical connections.
It includes optional cross-fault detection in the emergency stop control circuit for improved operational safety.
This safety relay is manufactured in Germany, ensuring adherence to high-quality standards.
It is ideal for use in industrial automation, machinery safety systems, and manufacturing safety circuits.
