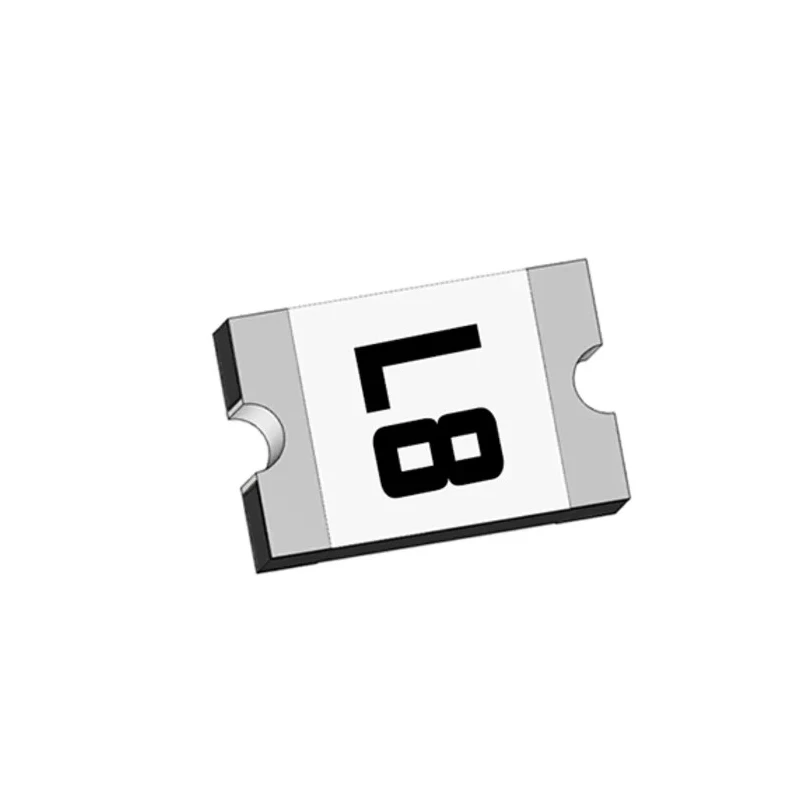

Eaton 6V 4.5 A Resettable Fuse with 50A Current Rating PTSLR12066V450
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 6V |
| Brand | Eaton |
| Height | 1.2mm |
| Length | 3.5mm |
| Model | PTSLR12066V450 |
| Width | 1.8mm |
| Current Rating | 50A |
| Series | Bussmann |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Trip Current | 9A |
| Power Dissipation | 0.8W |
| Standards/Approvals | UL, cURus, RoHS |
| Time to Trip | 2s |
| Hold Current | 4.5A |
| Minimum Resistance | 1mΩ |
| Maximum Resistance | 0.01Ω |
Key Features
- The fuse has a current rating of 50A for high performance.
- It features a quick time to trip of 2 seconds for rapid response.
- Compact dimensions of 3.5mm length, 1.8mm width, and 1.2mm height suit various PCB footprints.
- Designed for low resistance with minimum resistance of 1mΩ and maximum resistance of 0.01Ω.
- Operates effectively between -40°C to 85°C ensuring reliability across temperatures.
- Power dissipation rating is 0.8W providing efficient thermal management.
- Complies with UL, cURus, RoHS standards assuring quality and safety.
- Packaged in reels suitable for easy installation and surface mounting.
Product Description
Eaton PTSLR12066V450 is a 6V resettable fuse designed for circuit protection applications requiring a hold current of 4.5 A and a current rating of 50A. This fuse is well suited for sensitive electronic devices such as data ports, micromotors, fans, USB protection, and battery charging & charging connections. Its compact 1206 footprint allows for easy integration into PCB designs.
With a fast time-to-trip of approximately 2 seconds, the fuse provides reliable and rapid protection against overcurrent conditions. The electrical characteristics include a minimum resistance of 1mΩ and a maximum resistance of 0.01Ω, ensuring minimal voltage drop. It operates reliably within a temperature range of -40°C to 85°C and dissipates power up to 0.8W.
This resettable fuse complies with industry standards UL, cURus, and RoHS, ensuring it meets high quality and environmental standards. The device is part of Eaton's Bussmann series and is supplied in a reel package, making it ideal for automated assembly processes.
Common applications include low voltage handheld equipment and PC-based medical equipment, where fast acting circuit protection is critical. The fuse has a current rating of 50A for high performance. It features a quick time to trip of 2 seconds for rapid response.
Compact dimensions of 3.5mm length, 1.8mm width, and 1.2mm height suit various PCB footprints. Designed for low resistance with minimum resistance of 1mΩ and maximum resistance of 0.01Ω. Operates effectively between -40°C to 85°C ensuring reliability across temperatures.
Power dissipation rating is 0.8W providing efficient thermal management. Complies with UL, cURus, RoHS standards assuring quality and safety. Packaged in reels suitable for easy installation and surface mounting. Ideal for data ports, micromotors, fans, USB protection, and battery charging connections.
Formerly branded under Bussmann series by Eaton. Explore more Resettable Fuses from Eaton at EnvMart for reliable circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton resettable fuse has a current rating of 50A, making it suitable for high-performance applications.
The hold current for this model is 4.5A, which allows it to operate within specified limits before tripping.
This fuse features a quick time to trip of approximately 2 seconds, providing rapid protection against overcurrent conditions.
The dimensions of this fuse are 3.5mm in length, 1.8mm in width, and 1.2mm in height, making it compact for various PCB footprints.
It operates effectively within a temperature range of -40°C to 85°C, ensuring reliability across various environments.
The maximum power dissipation rating for this model is 0.8W, which aids in efficient thermal management during operation.
This resettable fuse complies with UL, cURus, and RoHS standards, assuring quality and safety in its applications.
The fuse is designed with a minimum resistance of 1mΩ and a maximum resistance of 0.01Ω, ensuring minimal voltage drop.
It is packaged in reels, which are suitable for easy installation and surface mounting in automated assembly processes.
This model is well-suited for applications such as data ports, micromotors, fans, USB protection, and battery charging connections.
The trip current for this resettable fuse is 9A, which is the threshold at which the fuse will activate to protect the circuit.
This resettable fuse is part of the Bussmann series by Eaton, known for its circuit protection solutions.
