Accuride Mild Steel Linear Slides with 835 mm Stroke Length DZ0115-0090RS

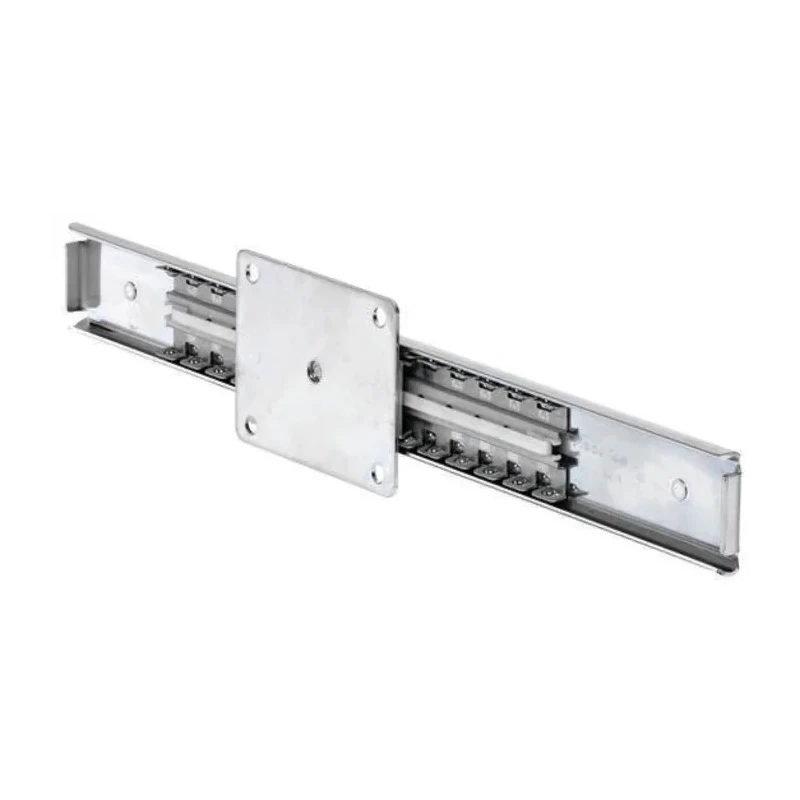

Accuride DZ0115-0090RS mild steel Linear Slides provide precision linear motion with an 835 mm stroke length in a robust, cold rolled mild steel construction suitable for a wide range of industrial and mechanical applications.

This 0115RS series features horizontal and vertical load capacities of 60 kg and 50 kg per pair, respectively, ensuring strong performance under various load conditions. The moving carriage is supported fully on carbon chrome steel ball bearings, guaranteeing smooth and accurate travel over the entire stroke length.

Retainer synchronization maintains reliable ball bearing positioning, enhancing overall stability and reducing wear. The slides are recommended to be fixed using M5 screws for secure mounting and can also be used in an upright position as a non-load bearing guide.

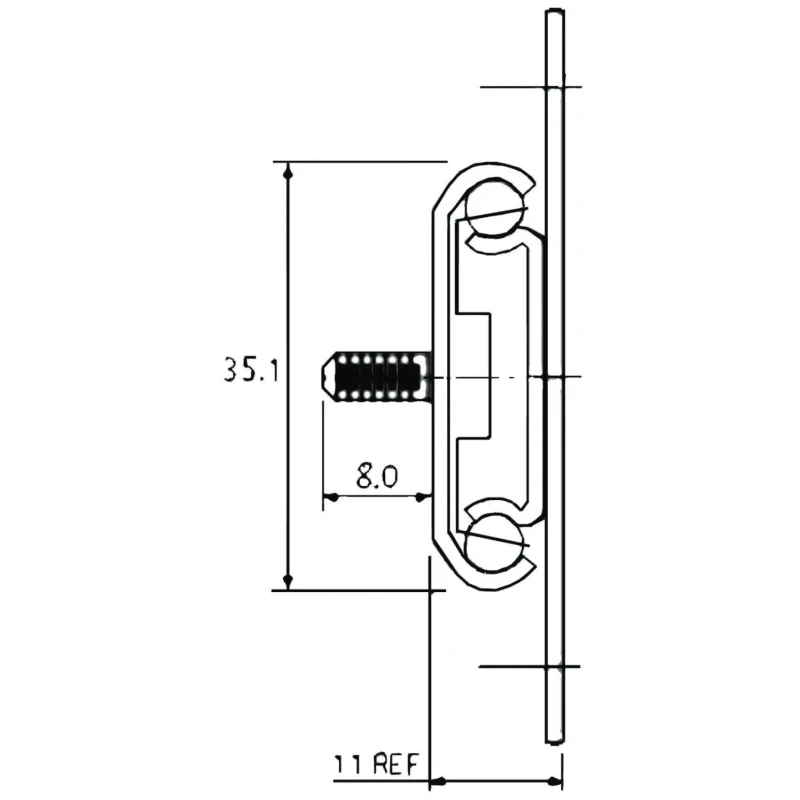

Precision dimensions include a 914 mm rail length, 60.3 mm carriage width, 35.1 mm rail width, and a 76.2 mm carriage length, making these slides compatible with many linear motion system designs.

Manufactured in China, these units are supplied individually and designed for up to 10,000 operational cycles, making them ideal for industrial machinery, manufacturing equipment, automation systems, and laboratory instrumentation requiring reliable and precise linear guidance.

The slides support a horizontal load of 60 kg per pair evenly distributed. Vertical load capacity is 50 kg per pair evenly distributed. Constructed from cold rolled mild steel runners with zinc plated steel ball retainers and carbon chrome steel ball bearings.

Each unit includes a fully supported moving member on ball bearings throughout the travel. Retainer synchronization enhances smooth motion and reliability. Recommended fixing using M5 screws (not supplied) ensures stable installation.

Slides are suitable for upright use as non-load bearing guides. Rail length measures 914 mm and carriage width is 60.3 mm to accommodate mechanical integration. Designed for 10,000 operational cycles providing durability and longevity.

Made in China and supplied as single units for precise mechanical applications. Explore the EnvMart collection for more linear motion components and precision mechanical parts by top manufacturers including Accuride.
