Molex Vertical Surface Mount Female USB Type C Connector USB 3.1 5A 30V 204711-0001

Free Delivery in India | Lowest Global Shipping Charges

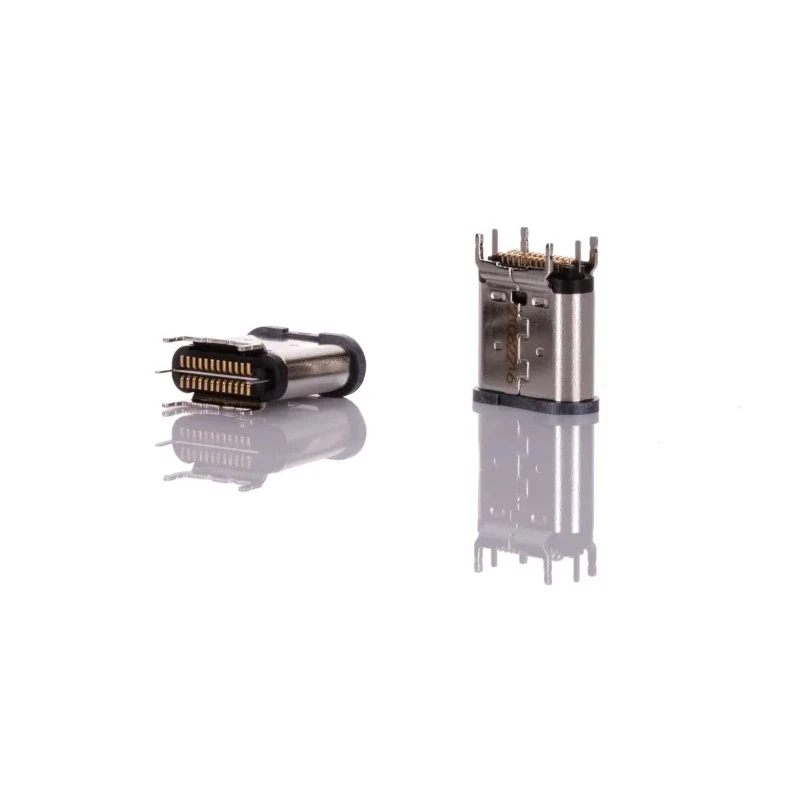

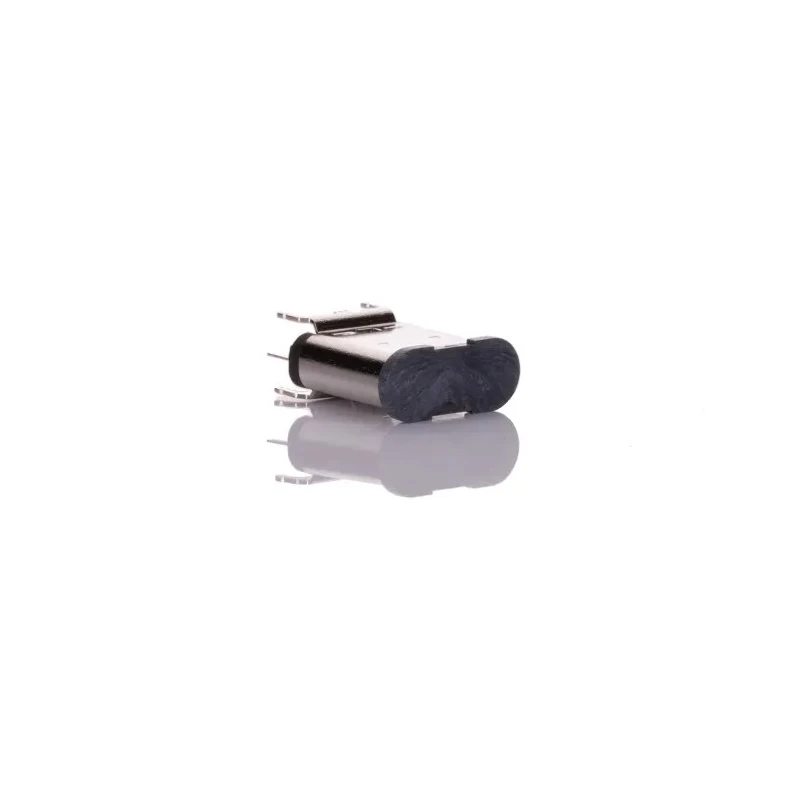

Molex Vertical Surface Mount Female USB Type C Connector USB 3.1 5A 30V 204711-0001

Name: Molex Vertical Surface Mount Female USB Type C Connector USB 3.1 5A 30V 204711-0001
Brand: Molex
SKU: 401266
Price: 2.88 USD
Availability: InStock



Category Connector Brand Molex Condition New

Specifications

Country of Origin	China
Voltage	30V
Brand	Molex
Orientation	Vertical
Current	5A
Mount Type	Surface
Contact Material	Copper Alloy
Series	USB Products and Solutions
Number Of Ports	1
Termination Type	Surface Mount
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
USB Type	USB Type C
Connector Gender	Female
USB Specification	USB 3.1

Key Features

Designed for surface mount applications with a vertical orientation.
Provides a single port USB Type C female connector.
Supports data transfer speeds up to 10Gbps via USB 3.1 standard.
Copper alloy contacts offer reliable electrical connections.
Operates within a temperature range of -30°C to +85°C for demanding environments.
Gold plating ensures corrosion resistance for long service life.
Mechanical durability rated at 10,000 mating cycles for extended use.
Suitable for mobile phones, tablets, CCTV systems, and multimedia devices.

Product Description

Molex 204711-0001 is a vertical surface mount female USB Type C connector compliant with USB 3.1 specifications that delivers robust data and power transmission capabilities. It is engineered to operate at 5A current and 30V voltage, supporting a wide operating temperature range from -30°C to +85°C, making it suitable for industrial and commercial electronic applications.

The connector features copper alloy contacts plated with gold to resist corrosion, providing reliable and durable performance over its mechanical life spanning up to 10,000 mating cycles. Its vertical orientation and surface mount termination style ensure secure PCB attachment and integration into compact electronic designs.

This USB connector supports data transfer speeds of up to 10Gbps, facilitating fast communication between devices such as mobile phones, tablets, CCTV security systems, and multimedia equipment. Its design aligns with the USB Products and Solutions series from Molex and is manufactured in China.

Surface mount termination for reliable attachment to printed circuit boards. Single port USB Type C female configuration. Copper alloy contacts with gold plating for corrosion resistance. Supports 5A current and 30V voltage.

Wide operating temperature range from -30°C to +85°C. Mechanical durability of 10,000 mating cycles. Compatible with high-speed USB 3.1 data transmission. Ideal for consumer electronics and security systems.

This connector is an essential component for enhancing connectivity and performance in electronic assemblies within industrial, construction, manufacturing, and commercial environments. Explore today’s range of Molex USB Connectors at EnvMart for reliable solutions.
