Omron Aratas Button Subminiature Micro Switch, Surface Mount Terminal, 1mA, SPST, IP40 D2LS-21

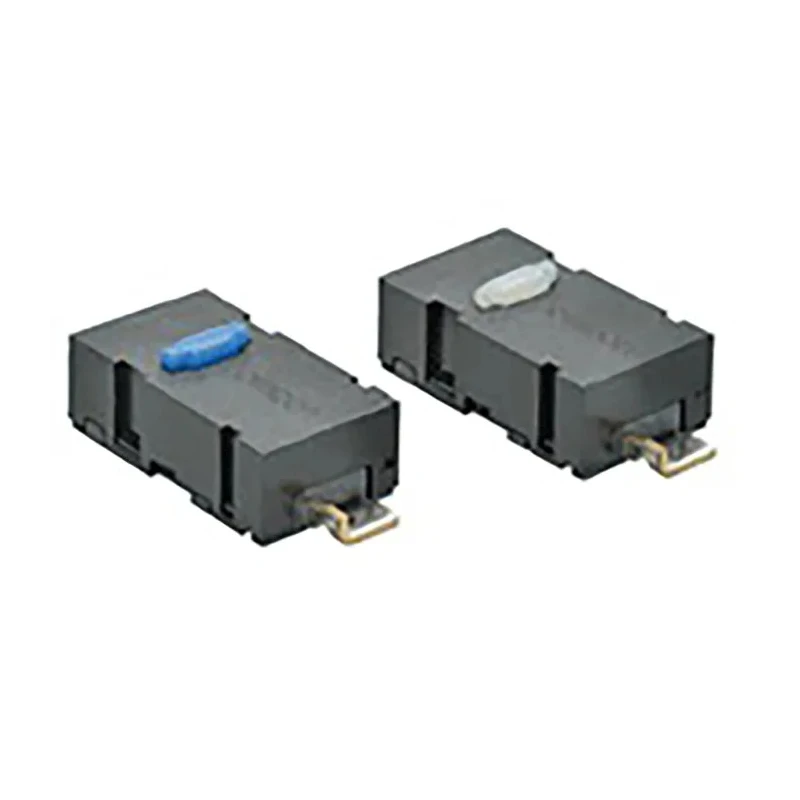

Name: Omron Aratas Button Subminiature Micro Switch, Surface Mount Terminal, 1mA, SPST, IP40 D2LS-21
Brand: Omron
SKU: 398833
Price: 1.33 USD
Availability: InStock



Category Micro Switch Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Model	D2LS-21
IP Rating	IP40
Width	3mm
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Actuator Type	Button
Minimum Operating Temperature	-25°C
Terminal type	Surface Mount
Standards/Approvals	RoHS
Switch Contact Current	1mA
Operating Force	0.6N
Mechanical Life	5000000Operations
Microswitch Type	Ultra Subminiature
High operating force type also achieving long durability (OF	1.2 N, Durability: 5,000,000 operations)

Key Features

This switch offers a compact size of 8.6 x 4.8 x 3.0 mm, suitable for downsizing modules.
It features an actuator button type and an SPST contact configuration offering reliable performance.
Operates within a temperature range of -25°C to 85°C ensuring wide environmental tolerance.
The switch has a long mechanical life of 5,000,000 operations for extended durability.
It includes a surface mount terminal type for ease of PCB mounting.
Clear click feedback provides tactile confirmation of actuation.
Minimum operating force is 0.6N to activate the switch.
Manufactured in China with RoHS compliance for environmental safety.

Product Description

Omron D2LS-21 is a button-type subminiature micro switch designed for surface mount terminal applications requiring a compact switch with a low contact current of 1mA. It features an SPST (Single Pole Single Throw) contact configuration and has an ingress protection rating of IP40, making it suitable for moderate environmental protection needs.

The compact dimensions of 8.6 x 4.8 x 3.0 mm (Width x Depth x Height) enable this switch to contribute to significant downsizing of electronic modules. It delivers a clear click feeling on actuation, which helps operators confirm switch activation reliably. The operating force is optimized at 0.6N for ease of use while maintaining precision.

With a mechanical life rated at 5,000,000 operations, this ultra subminiature micro switch offers long-lasting performance, suitable for automation, industrial control, and electrical device applications where durability and space-saving design are paramount.

This switch complies with RoHS standards, ensuring it is free from hazardous substances and suitable for modern manufacturing requirements. It is manufactured in China under strict quality controls to deliver consistent performance.

Typical applications include home appliances, machinery controls, instrumentation, and other industrial electronics requiring reliable Micro Switch solutions with surface mount capability and long durability.

This switch offers a compact size of 8.6 x 4.8 x 3.0 mm, suitable for downsizing modules. Actuator type is a button, providing direct mechanical activation. Single Pole Single Throw (SPST) contact configuration ensures simple on/off control.

Operating force is 0.6N, enabling sensitive and reliable operation. Rated mechanical life of 5 million operations assures long-term durability. Ingress protection rating is IP40 for protection against solid objects greater than 1 mm.

Compliance with RoHS for environmental safety specifications. Explore more industrial switches and electrical components in the Electronics & Electricals category at EnvMart.
