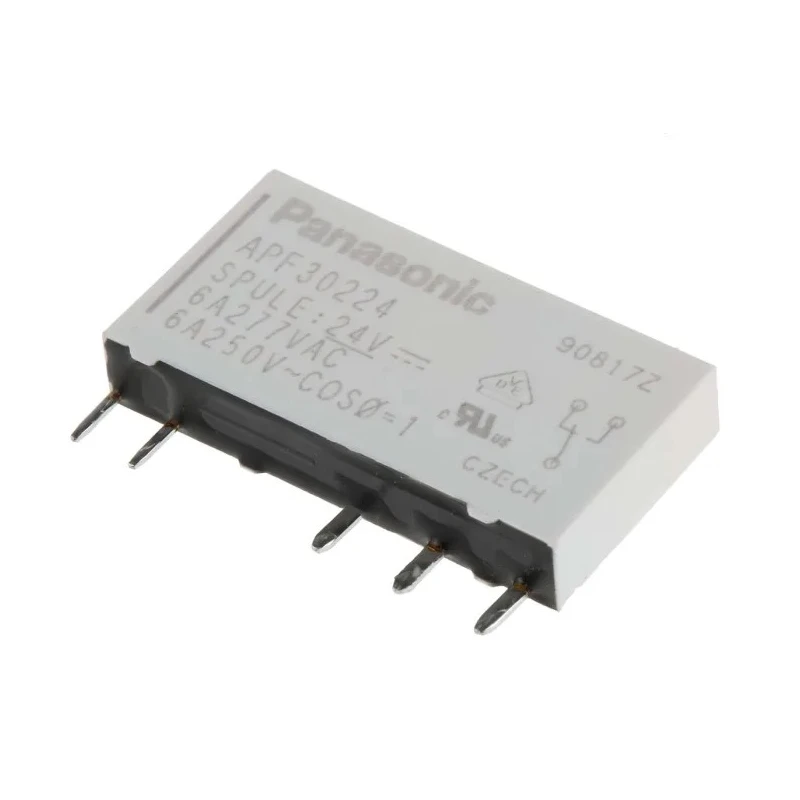

Panasonic Power Relay PCB Mount SPDT Contact Configuration 24V DC Coil 6A Switching Current APF30224
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 15mm |
| Length | 28mm |
| Model | APF30224 |
| Width | 5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | APF |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS, UL, VDE |
| Coil Resistance | 3.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 170mW |
Key Features
- Compact design suitable for high-density printed circuit boards.
- Supports a switching AC voltage of up to 250V AC.
- Operates reliably in temperatures ranging from -40°C to 85°C.
- Coil resistance of 3.4kΩ with low coil power consumption of 170mW.
- Silver alloy contact material ensures low contact resistance of 100mΩ.
- Terminals designed for solder mounting on PCB.
- Complies with RoHS, UL, and VDE standards for safety and quality.
Product Description
Panasonic APF30224 power relay is a high-quality component designed for efficient switching applications in electrical and automation systems. This compact power relay is built for PCB mounting and offers a SPDT contact configuration, making it versatile for various control circuits.
The relay coil operates at 24V DC with a coil resistance of 3.4kΩ and consumes just 170mW of power, ensuring energy-efficient operation. Its contact configuration supports a switching current of up to 6A and can handle AC voltages up to 250V AC, suitable for many industrial and commercial applications.
Designed to function reliably in harsh environments, the APF30224 relay supports a temperature range from -40°C minimum to 85°C maximum, making it ideal for diverse installation conditions. The silver alloy contacts provide excellent conductivity and durability, maintaining a low contact resistance of 100mΩ to ensure consistent performance.
The relay terminals are designed for solder mounting on PCBs, aiding in secure and compact installations. The relay aligns with industry standards RoHS, UL, and VDE, confirming its compliance with safety and environmental regulations.
This Panasonic power relay is widely used in industrial control systems, automation, signal conditioning, and other electrical applications requiring reliable switching functionality.
Compact design suitable for high-density printed circuit boards. Supports a switching AC voltage of up to 250V AC. Operates reliably in temperatures ranging from -40°C to 85°C. Coil resistance of 3.4kΩ with low coil power consumption of 170mW.
Silver alloy contact material ensures low contact resistance of 100mΩ. Terminals designed for solder mounting on PCB. Complies with RoHS, UL, and VDE standards for safety and quality. Discover more electronics and electrical components at EnvMart for efficient and reliable industrial automation solutions.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V DC.
This relay can handle a maximum switching current of 6A.
The APF30224 relay features an SPDT (Single Pole Double Throw) contact configuration.
This model operates reliably in temperatures ranging from -40°C to 85°C.
The contact material used in this relay is silver alloy, which ensures low contact resistance.
The maximum AC voltage that this relay can switch is 250V AC.
The coil resistance of the APF30224 is 3.4kΩ.
The dimensions of this power relay are 28mm in length, 5mm in width, and 15mm in height.
This relay has solder terminals designed for mounting on PCBs.
The APF30224 complies with RoHS, UL, and VDE standards for safety and quality.
The coil power consumption of this relay is 170mW.
The APF30224 relay is manufactured in India.
