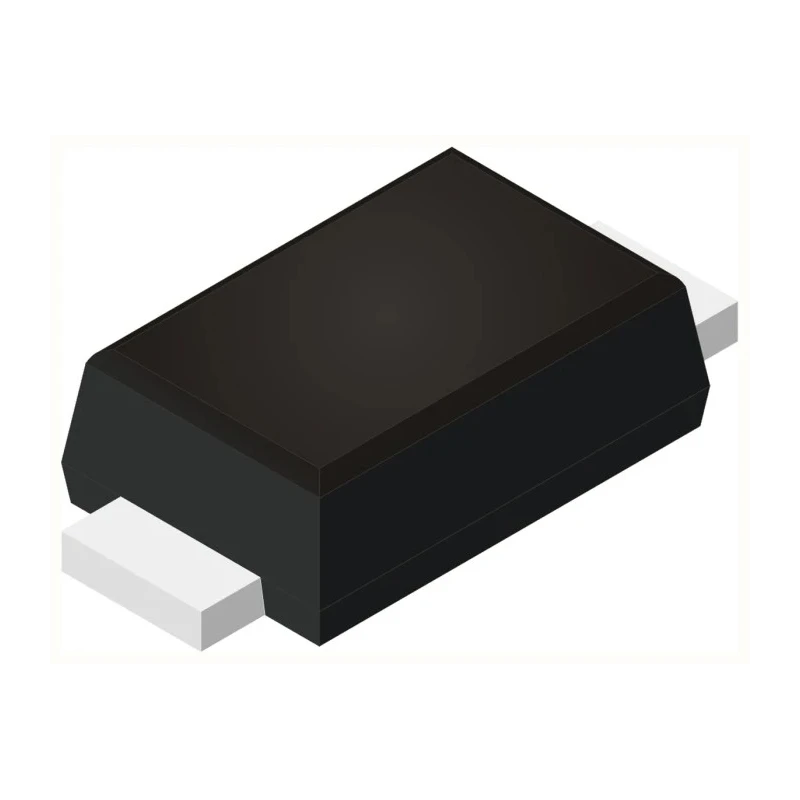

ROHM High Reliability 30 V 1 A Surface Mount Schottky Diode Package SOD-123FL RBR1MM30ATR

Free Delivery in India | Lowest Global Shipping Charges

ROHM High Reliability 30 V 1 A Surface Mount Schottky Diode Package SOD-123FL RBR1MM30ATR

Name: ROHM High Reliability 30 V 1 A Surface Mount Schottky Diode Package SOD-123FL RBR1MM30ATR
Brand: ROHM
SKU: 398325
Price: 20.22 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	0.9mm
Length	2.7mm
Model	RBR1MM30ATR
Width	1.7mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SOD-123FL
Standards/Approvals	RoHS
Pin Count	2
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	50μA
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Maximum Forward Voltage Vf	0.48V

Key Features

Compact SOD-123FL package suitable for surface mounting.
Maximum continuous forward current of 1 ampere.
Peak reverse repetitive voltage rated at 30 volts.
Low forward voltage drop of 0.48 volts for efficiency.
Maximum operating temperature up to 150 degrees Celsius.
Peak non-repetitive forward surge current up to 30 amperes.
Two-pin diode configuration for single rectifier operation.
Complies with RoHS standards for environmental safety.

Product Description

ROHM RBR1MM30ATR is a Schottky diode designed for surface mount technology within a compact SOD-123FL package. Rated at a maximum continuous forward current of 1 ampere and a peak reverse repetitive voltage of 30 volts, this diode provides efficient rectification with a low forward voltage drop of 0.48 volts. The device supports peak non-repetitive forward surge currents up to 30 amperes, ensuring robustness for transient conditions.

This diode features a two-pin single configuration and is optimized for industrial applications requiring reliable performance under thermal stress, with an operating temperature range up to 150°C. The small power mold design enhances electrical characteristics while maintaining compactness.

Its RoHS compliance guarantees that the product adheres to environmental and safety standards, suitable for manufacturing, industrial electronics, power management, and consumer electronic devices.

Compact SOD-123FL surface mount package enhances PCB layout flexibility. 1 A maximum continuous forward current ensures suitability for low to moderate power circuits. 30 V peak reverse repetitive voltage protects against reverse voltage spikes.

Low forward voltage of 0.48 V promotes energy efficiency and reduced heat dissipation. Withstands up to 30 A surge currents for transient event protection. High operating temperature tolerance up to 150°C for demanding environments.

Single diode configuration with two pins simplifies circuit design. RoHS compliant, meeting international environmental directives. Small power mold type construction for reliability and performance optimization.

This Schottky diode is ideal for electronic component assemblies in power and signal rectification, designed for use within industrial, manufacturing, electronics, and power management applications. Its compact form factor and robust electrical characteristics make it suitable for automated SMT production lines and high-density PCB designs.
